SKU:
ALP 72266
€ 1.255,60
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical 'Project X1' (6mm, 12V, 800W) is designed for boats between 20-30 feet (6-9m) and offers a higher-powered 800W motor. It delivers a maximum linear load of 700kg and a lift load of 380kg, with a line speed of 25m/min, making it an efficient solution for vessels requiring greater performance.
- Description
- Ask a Question
-

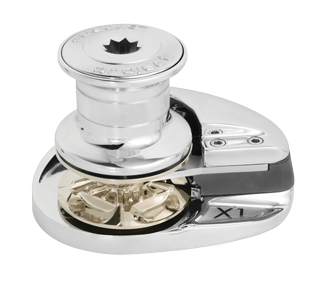

Lofrans Windlass Vertical, Model 'Project X1', 6mm, 12v, 800w, With Drum
This windlass model is designed for boats between 20-30 feet (6-9m). It comes with an 800W motor and a 12V power supply, providing a maximum linear load of 700kg and a maximum lift load of 380kg. Featuring a drum, this model offers great power and speed, ensuring efficient operation for your vessel.
- Article number: 72266
- EAN number: 8719182119746
- Motor: 800W
- Power Supply: 12V
- Max. Linear Load: 700kg
- Max. Lift Load: 380kg
- Lift Working Load: 100kg
- Amps Work Load: 110A
- Line Speed: 25m/min
- Max. Line Speed: 28m/min
- Control box: Included
- Size: 8mm
- Conform: ISO 4565 / DIN 766
- Drum: With
- Weight with Drum: 14kg

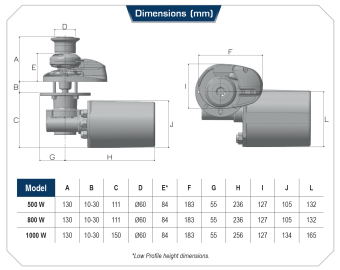

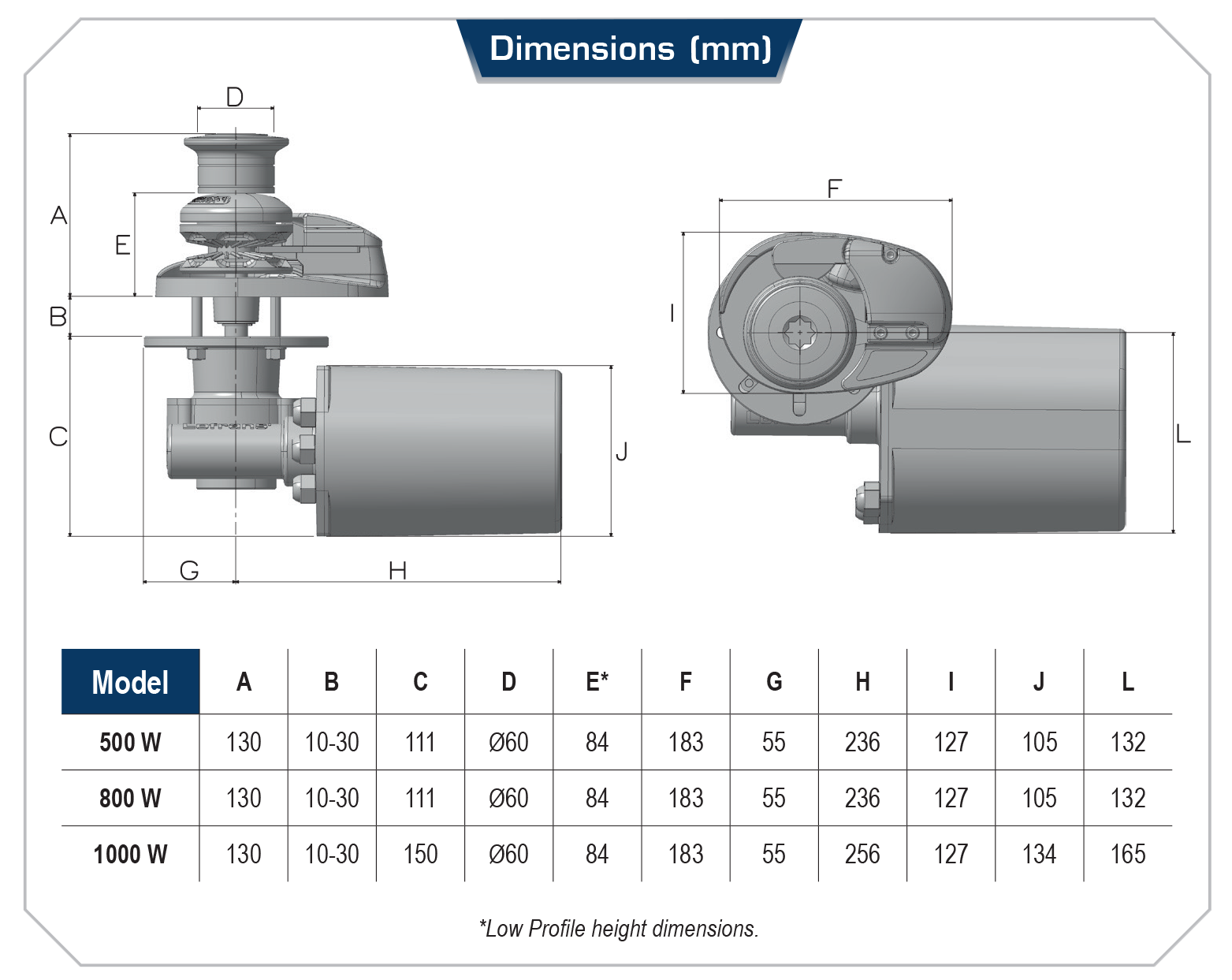

- Dimensions:
- A: 130mm
- B: 10-30mm
- C: 111mm
- D: Ø60mm
- E: 84mm
- F: 183mm
- G: 55mm
- H: 229mm
- I: 127mm
- J: Ø95mm
- L: 92mm
-
