SKU:
ALP 72206
€ 1.069,66
1-2 weeks delivery time
-
+
The Lofrans Windlass Vertical 'Project X1' is a reliable and compact windlass designed for boats ranging from 20 to 30 feet. With a 500W motor and 12V power supply, it handles up to 630kg of linear load and offers a line speed of up to 26m/min. This model is well-suited for lighter marine applications, providing a practical solution for smaller vessels with its efficient performance and included control box.
- Description
- Ask a Question
-

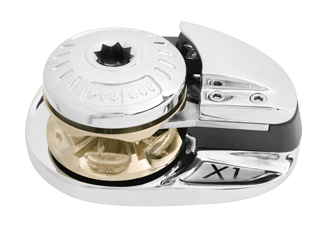

Lofrans Windlass Vertical, Model 'Project X1', 6mm, 12v, 500w, Without Drum
The Lofrans Windlass Vertical 'Project X1' is a robust and reliable windlass designed for smaller boats in the 20-30' (6-9m) range. Powered by a 500W motor and designed to run on a 12V power supply, this model offers both strength and precision for your marine needs.
- Article number: 72206
- EAN number: 8719182119746
- Boat size: For boats 20-30' (6-9m)
- Motor: 500W
- Power Supply: 12V
- Max. Linear Load: 630kg
- Max. Lift Load: 345kg
- Lift Working Load: 95kg
- Amps Work Load: 60A
- Line Speed: 23m/min
- Max. Line Speed: 26m/min
- Control Box: Included
- Size: 6mm
- Conform: ISO 4565 / DIN 766
- Drum: Without
- Weight with Drum: 12kg

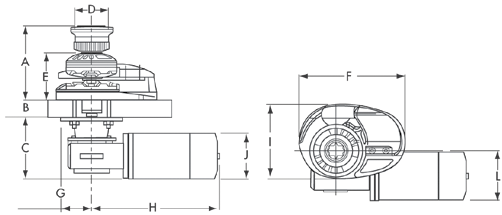

- Dimensions:
- Dimension A: 130mm
- Dimension B: 10-30mm
- Dimension C: 111mm
- Dimension D: Ø60mm
- Dimension E: 84mm
- Dimension F: 183mm
- Dimension G: 55mm
- Dimension H: 225mm
- Dimension I: 127mm
- Dimension J: Ø82mm
- Dimension L: 85mm
-
