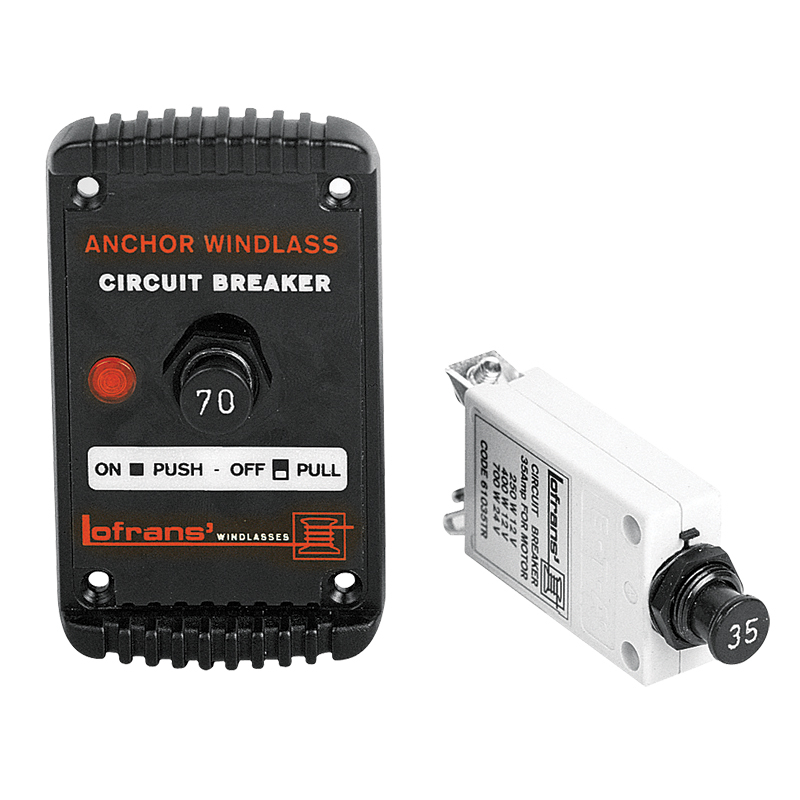

Lofrans 187332 – Windlass Thermal Magnetic Circuit Breaker 70A

SKU: ALP 71804

$ 234,82

1-2 weeks delivery time

- +

Add to cart

The Lofrans 187332 Thermal Magnetic Circuit Breaker (70A) provides robust safety for windlass systems, protecting against short circuits and overloads. Designed for 12V motors (700W) and 24V motors (1000W / 1200W / 1500W), it features an elegant 80 × 52 mm wall-mount panel and a bright LED indicator for instant voltage monitoring. Certified by Bureau Veritas and compliant with European safety standards, this breaker ensures reliable marine electrical protection.

Description
Ask a Question

Lofrans 187332 – Thermal Magnetic Circuit Breaker 70A

The Lofrans 187332 Magnetic Thermal Circuit Breaker is an essential component for marine electrical safety, designed specifically for windlass systems. It protects against dangerous short circuits, safeguards the windlass motor from overload, and allows full manual disconnection when required. Developed with E-T-A Germany, its intervention curve is optimized for windlass applications.

Main Functions
- Short-Circuit Protection: Immediate tripping in case of overcurrent
- Motor Protection: Prevents overload damage with tailored trip curve
- Disconnection: Enables safe and quick manual cut-off of power
Key Features
- Rated Current: 70A
- Voltage Compatibility: 12V / 24V systems
- Windlass Motor Compatibility:
  - 12V: 700W
  - 24V: 1000W / 1200W / 1500W
- Mounting Panel: Included (80 × 52 mm)
- LED Indicator: Shows voltage presence
- Terminal Connection: 6 mm lug hole
- Reset: Manual reset after tripping
- Certifications: EEC compliant, Bureau Veritas & Lloyd’s Register approved
The Lofrans 187332 Circuit Breaker combines effective electrical protection with user-friendly features such as LED indication and an elegant mounting plaque. Designed for both 12V and 24V windlass motors, it ensures reliable and safe anchoring operations under all marine conditions.
