SKU:
ALP 71232
€ 10.270,78
1-2 weeks delivery time
-
+
The Lofrans Windlass Horizontal 'Titan B' is a powerful windlass designed for boats between 65-85' (20-26m). With a 2300W motor and a 24V power supply, it can handle a maximum linear load of 2700kg and a lift load of 1500kg. This model offers a line speed of 16m/min and includes a control box, making it ideal for demanding marine environments.
- Description
- Ask a Question
-
Lofrans Windlass Horizontal, Model 'Titan B', 24v, 2300w, 2x Chain Gipsy 12-13 Din766 & 1x Drum
The Lofrans Windlass Horizontal 'Titan B' is an efficient and powerful windlass designed for boats between 65-85' (20-26m). With a robust motor and high lifting capacity, this model is ideal for demanding marine environments.
- Article number: 71232
- For Boats: 65-85' (20-26m)
- Motor: 2300W
- Power Supply: 24V
- Max. Linear Load: 2700kg
- Max. Lift Load: 1500kg
- Lift Working Load: 430kg
- Amps Work Load: 140A
- Line Speed: 10m/min
- Max. Line Speed: 16m/min
- Weight: 115kg
- Control Box: Included
- Conform: ISO 4565

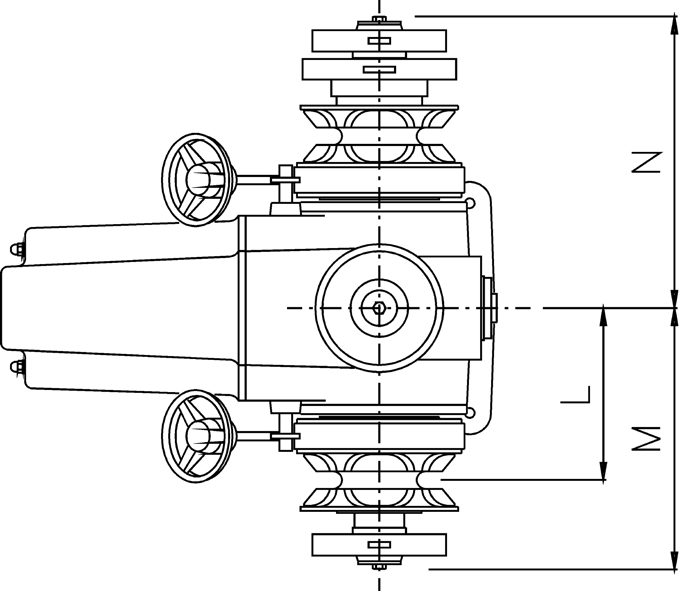

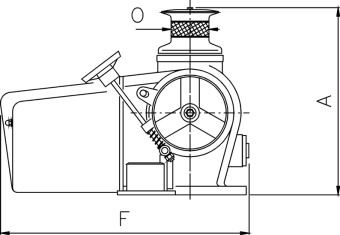

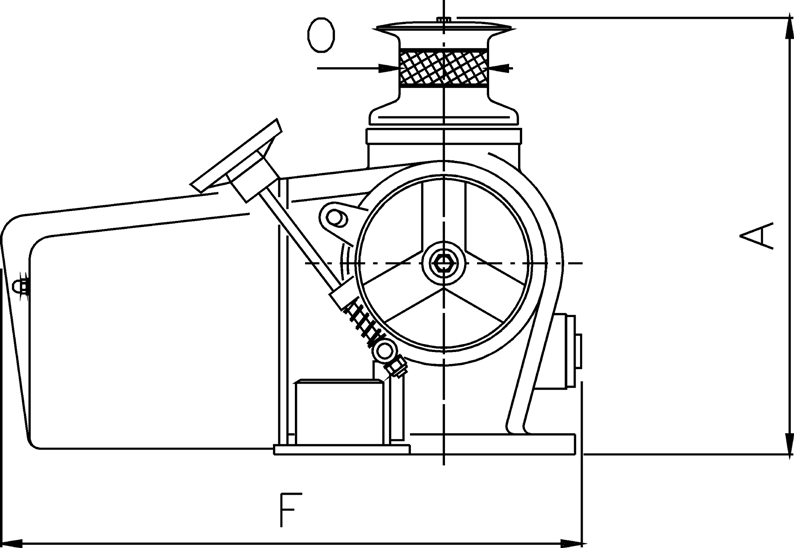

- Dimensions:
- A: 330mm
- C: 465mm
- D: Ø104mm
- F: 590mm
- L: 185mm
- M: 270mm
- N: 330mm
-
