SKU:
ALP 71737
€ 2.703,87
1-2 weeks delivery time
-
+
The Lofrans Windlass Capstan Vertical Model 'T1700' (24V, 1700W) is suited for larger vessels ranging from 65 to 75 feet (20-23m). With a 1700W motor running on 24V, it can handle a max linear load of 1695kg and a lift load of 850kg. The model is designed for optimal efficiency, offering line speeds up to 32m/min and includes a control box.
- Description
- Ask a Question
-

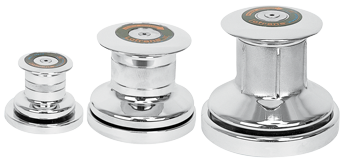

Lofrans Windlass Capstan Vertical, Model 'T1700', 24V, 1700W
Designed for larger vessels (65-75 feet), this model provides a 24V option with improved load handling, speed, and durability.
- Article number: 71737
- EAN number: 8719182106906
- For boats: 65-75' (20-23m)
- Motor Power: 1700W
- Power Supply: 24V
- Max. Linear Load: 1695kg
- Max. Lift Load: 850kg
- Lift Working Load: 215kg
- Amps Work Load: 68A
- Line Speed: 16m/min
- Max. Line Speed: 32m/min
- Weight: 30kg
- Control Box: Included

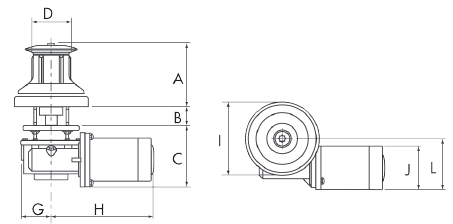

- Dimension A: 168mm
- Dimension B: 50-70mm
- Dimension C: 165mm
- Dimension D: Ø104mm
- Dimension G: 80mm
- Dimension H: 300mm
- Dimension I: Ø195mm
- Dimension J: Ø126mm
- Dimension L: 134mm
-
