$ 144,71
1-2 weeks delivery time
-
+
The Lofrans Control Box 3T (24V, 1700–2300W) is a heavy-duty relay box with dual solenoids designed to operate high-power 3-pole windlass motors. With an IP56 waterproof rating and a self-extinguishing polyester resin enclosure, it is resistant to shock and marine corrosion. All terminals are externally accessible for quick installation, ensuring reliable performance for demanding anchoring systems.
- Description
- Ask a Question
-

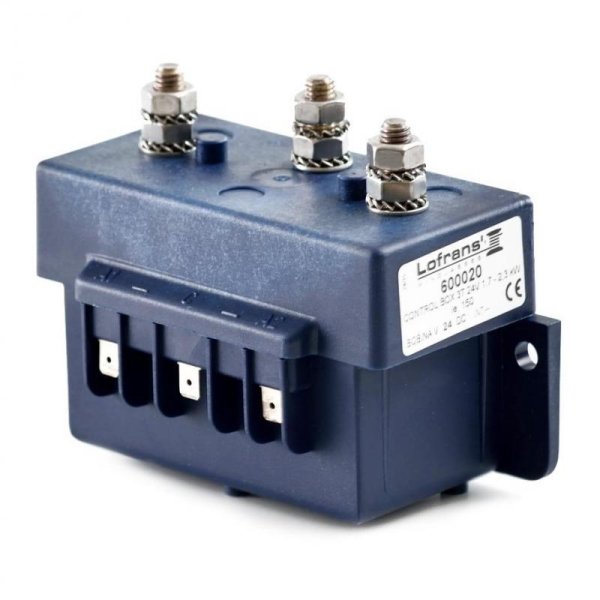

Lofrans Control Box 3T – 24V, 1700–2300W
The Lofrans Control Box 3T is a robust relay unit designed for high-power windlass motors. Equipped with two high-performance solenoids, it controls motor direction (forward/reverse or up/down), ensuring smooth and efficient anchoring operations even under heavy loads.
Key Features
- 3-terminal relay box with two integrated solenoids
- Designed for 24V systems, supporting 1700–2300W motors
- Controls motor direction: forward/reverse (up/down)
- IP56 splashproof, shock-resistant, and non-corrosive construction
- Outer casing in self-extinguishing polyester resin
- All terminals accessible externally – no need to open the housing
- Connection bolts: M8 for secure wiring
Technical Specifications
Voltage 24V Motor Power Range 1700–2300W Terminals 3 Waterproof Rating IP56 Dimensions 115 x 90 x 60 mm Material Self-extinguishing polyester resin Motor Type 3-pole Connection Bolts M8
Important Notes
- Not suitable for overhead installation
- Specifically designed for high-power 24V windlass motors
Built to withstand harsh marine conditions, the Lofrans Control Box 3T – 24V, 1700–2300W delivers dependable performance and durability, making it a vital component for large yachts and heavy-duty anchoring systems.
-
