SKU:
CN AB600018 / ALP 71790
$ 108,66
1-2 weeks delivery time
-
+
The Lofrans Control Box 3T (12V, 500–1700W) is a watertight relay box equipped with high-performance relays for operating windlasses and heavy electrical loads. Designed for 3-pole motors, it provides forward and reverse control via two solenoids. With an IP56 splashproof rating and robust polyester resin housing, it is resistant to shock, heat, and marine corrosion.
- Description
- Ask a Question
-

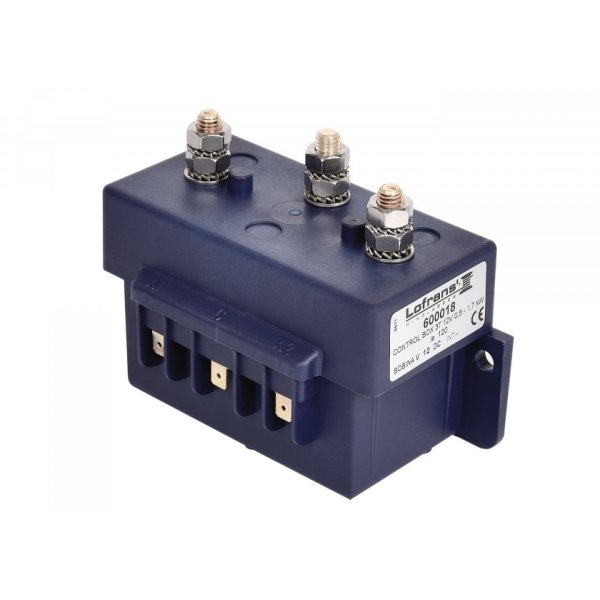

Lofrans Control Box 3T – 12V, 500–1700W
The Lofrans Control Box 3T is a durable and watertight relay box designed to control windlasses and other electrical loads with high power consumption. It contains two solenoids for switching the windlass motor in forward and reverse directions, ensuring smooth and reliable operation. Built for 3-pole motors, this control box is ideal for marine applications requiring dependable performance under harsh conditions.
Key Features
- 3-terminal relay box with two solenoids
- Controls windlass motor in forward and reverse (up/down)
- Rated for motors from 500 to 1700W
- IP56 splashproof, shock-resistant, and non-corrosive design
- Encapsulated in self-extinguishing polyester resin
- High-performance relays ensure safe and efficient operation
- Sturdy external terminals with M8 connection bolts
Technical Specifications
Voltage 12V Motor Power Range 500–1700W Terminals 3 Waterproof Rating IP56 Connection Bolt M8 Dimensions 115 × 90 × 60 mm Material Self-extinguishing polyester resin Motor Type 3-pole
Important Notes
- Not suitable for overhead installation
- Designed exclusively for 3-pole motors
With its watertight build and high-quality relays, the Lofrans Control Box 3T ensures reliable control of windlass operations, making it an essential component for safe and efficient anchoring.
-
