Italwinch Raja Windlass 24V 2300W / Chain 12,5mm TR

SKU: EX RA-2324-12T-A

€ 7.591,58

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Italwinch Raja Windlass (Model RA-2324-12T-A) is a robust electric winch designed for marine use, featuring a 24V DC power supply and a hauling speed of 12 m/min. It accommodates a chain diameter of 12.5 mm and has a maximum load capacity of 2800 kg, with a working load limit of 520 kg. With a current draw of 120 A and a power output of 2300 W, this windlass is built for reliability and efficiency, measuring 632 mm in length and 500 mm in width.

Description
Ask a Question

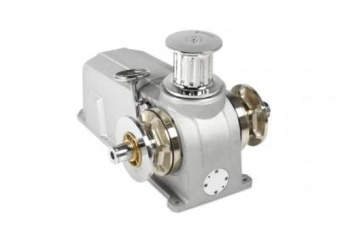

Italwinch Raja Windlass 24V 2300W / Chain 12.5mm TR RA-2324-12T-A

The Italwinch Raja Windlass is a powerful electric winch designed for efficient marine use. With a robust build and impressive specifications, this windlass ensures reliability and performance on the water.
- Product Number: RA-2324-12T-A
- Unit of Sale: 1 Piece
- Chain Diameter: 12.5 mm
- EAN Code: 8720763545298
- Brand: Italwinch
- Hauling Speed: 12 mtr/min
- Maximum Load Capacity: 2800 kg
- Voltage Type: 24V DC
- Current: 120 A
- Power: 2300 W
- Working Load: 520 kg
- Series: RAJA

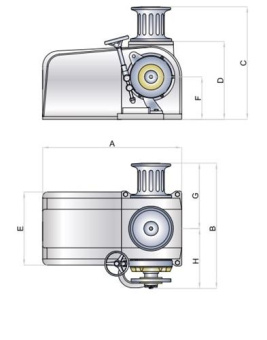

- Dimensions:
  - A: 632 mm
  - B: 500 mm
  - C: 400 mm
  - D: 280 mm
  - E: 210 mm
  - F: 165 mm
  - G: 260 mm
  - H: 240 mm
