Italwinch Raja Windlass 230-400V 3600W/Chain 12mm ISO/13mm DIN766

SKU: EX RA-36AC-12D-A

€ 7.419,98

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Italwinch Raja Windlass RA-36AC-12D-A is a high-performance electric winch designed for demanding marine environments, capable of handling lifting and pulling tasks with ease. It features a dual voltage motor for versatility, a maximum load capacity of 3200 kg, and a working load of 700 kg. With a powerful 3600 W motor, it boasts a hauling speed of 12 m/min and is compatible with 12mm ISO/13mm DIN766 chain. The windlass measures 632 mm in length and 500 mm in width, making it a robust and reliable solution for marine applications.

Description
Ask a Question

Italwinch Raja Windlass 230-400V 3600W/Chain 12mm ISO/13mm DIN766 RA-36AC-12D-A

The Italwinch Raja Windlass is a powerful and efficient electric winch tailored for demanding marine environments. With its robust design and high-performance specifications, it is an ideal solution for lifting and pulling tasks. Equipped with a dual voltage motor, this windlass combines versatility with reliability.
- Product Number: RA-36AC-12D-A
- Unit for Sale: 1 Piece
- EAN Code: 8720763545472
- Brand: Italwinch
- Hauling Speed: 12 m/min
- Maximum Load: 3200 kg
- Working Load: 700 kg
- Power: 3600 W
- Voltage: 230/400 V
- Series: RAJA
- Type: Electric

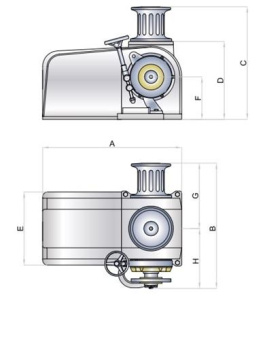

- Measurements on Drawing:
  - A: 632 mm
  - B: 500 mm
  - C: 400 mm
  - D: 280 mm
  - E: 210 mm
  - F: 165 mm
  - G: 260 mm
  - H: 240 mm
