Italwinch Raja Windlass 230-400V 3600W/Chain 10mm DIN766

SKU: EX RA-36AC-10D-A

€ 7.419,98

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

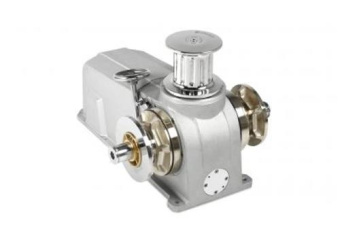

The Italwinch Raja Windlass RA-36AC-10D-A is a powerful marine solution, designed for various anchoring needs with a hauling speed of 12 m/min and a maximum load capacity of 3200 kg. It operates on 230V/400V power and has a robust design compatible with 10 mm DIN766 chain. With a working load of 700 kg and dimensions that include a length of 632 mm and a width of 500 mm, this electric windlass offers reliable performance and efficiency for marine applications.

Description
Ask a Question

Italwinch Raja Windlass 230-400V 3600W/Chain 10mm DIN766 RA-36AC-10D-A

The Italwinch Raja Windlass is a powerful and efficient solution for marine applications. Designed to handle various anchoring needs, this windlass offers excellent features for both performance and reliability.
- Product Number: RA-36AC-10D-A
- Unit of Sale: 1 Piece
- Chain Thickness: 10 mm
- EAN Code: 8720763545229
- Brand: Italwinch
- Hauling Speed: 12 m/min
- Maximum Load: 3200 kg
- Working Load: 700 kg
- Power: 3600 W
- Voltage: 230 V / 400 V
- Model Series: RAJA
- Type: Electric

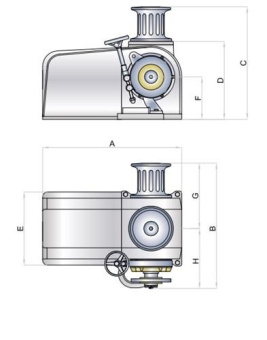

- Dimensions:
  - A: 632 mm
  - B: 500 mm
  - C: 400 mm
  - D: 280 mm
  - E: 210 mm
  - F: 165 mm
  - G: 260 mm
  - H: 240 mm
