Italwinch Orchid Windlass 230-400V 2200W / Chain 12mm ISO

SKU: EX OR-22AC-12L

€ 4.372,37

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

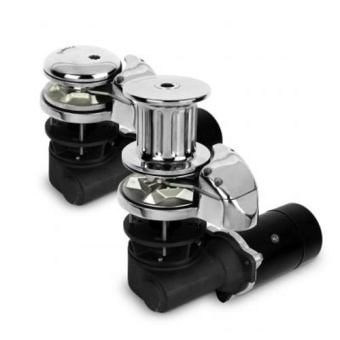

The Italwinch Orchid Windlass (model OR-22AC-12L) is a high-performance electric winch that operates on 230-400V with a power of 2200W and is designed for a chain thickness of 12 mm. It features a maximum load capacity of 2550 kg, a working load of 535 kg, and a hauling speed of 17 m/min. Constructed from robust stainless steel 316, it includes a chain counter sensor and measures various dimensions suited for effective use. Ideal for users in need of a reliable lifting solution, it is part of the Orchid series.

Description
Ask a Question

Italwinch Orchid Windlass 230-400V 2200W / Chain 12mm ISO OR-22AC-12L

The Italwinch Orchid Windlass is an electric winch designed for various applications, featuring robust construction and high-performance specifications. This model is ideal for users seeking a reliable and efficient lifting solution.
- Product Number: OR-22AC-12L
- Unit of Sale: 1 Piece
- Chain Thickness: 12 mm
- EAN Code: 8720763544703
- Brand: Italwinch
- Hauling Speed: 17 m/min
- Chain Counter Sensor: Yes

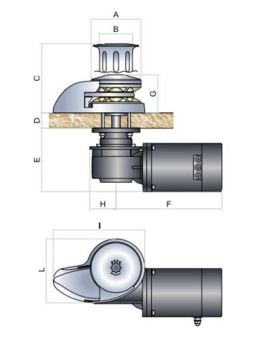

- Dimensional Indicators:
  - A: 150 mm
  - B: 102 mm
  - C: 212 mm
  - D: 37/62 mm
  - E: 174 mm
  - F: 350 mm
  - G: 107 mm
  - H: 78 mm
  - I: 268 mm
  - L: 188 mm
- Line Thickness: 18; 19; 20 mm
- Material: Stainless Steel 316
- Maximum Load: 2550 kg
- Series: Orchid
- Type of Voltage: VAC
- Execution Type: Electric
- Power: 2200 W
- Voltage: 400 V
- Voltage: 230 V
- Working Load: 535 kg
