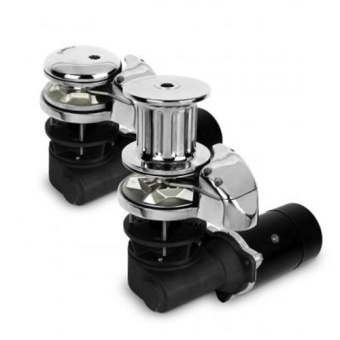

Italwinch Orchid Windlass 230-400V 2000W / Chain 10mm ISO

SKU: EX OR-20AC-10L

€ 3.080,79

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Italwinch Orchid Windlass (Product Number: OR-20AC-10L) is a powerful electric winch designed for heavy-duty applications, featuring a robust construction with a stainless steel 316 material, a pulling speed of 20 m/min, and a maximum load capacity of 1700 kg, with a working load of 300 kg. It operates on 230 V / 400 V voltage and has a power rating of 2000 W, with a chain thickness of 10 mm and a built-in chain counter sensor. The windlass measures various dimensions (e.g., 150 mm A, 102 mm B, and 212 mm C) for versatile installation.

Description
Ask a Question

Italwinch Orchid Windlass 230-400V 2000W / Chain 10mm ISO OR-20AC-10L

The Italwinch Orchid Windlass is a powerful electric winch designed for heavy-duty applications, featuring robust construction and advanced technology to ensure reliable performance.
- Product Number: OR-20AC-10L
- Units Sold: 1 Piece
- Chain Thickness: 10 mm
- EAN Code: 8720763544598
- Brand: Italwinch
- Pulling Speed: 20 m/min
- Chain Counter Sensor: Yes
- Maximum Load: 1700 kg
- Working Load: 300 kg
- Series: Orchid
- Power Type: VAC
- Execution Type: Electric
- Power: 2000 W
- Voltage: 230 V / 400 V
- Material: Stainless Steel 316

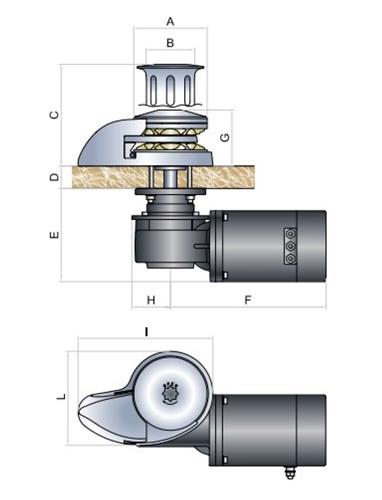

- Dimension A: 150 mm
- Dimension B: 102 mm
- Dimension C: 212 mm
- Dimension D: 37/62 mm
- Dimension E: 174 mm
- Dimension F: 330 mm
- Dimension G: 107 mm
- Dimension H: 78 mm
- Dimension I: 268 mm
- Dimension L: 188 mm
