Italwinch Orchid Windlass 12V 1500W / Chain 8mm

SKU: EX OR-1512-08L

€ 2.207,92

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Italwinch Orchid Windlass (model OR-1512-08L) is a powerful 12V electric winch designed for marine use, featuring a robust stainless steel 316 construction and capable of handling a maximum load of 1250 kg with a working load of 170 kg. It offers a hauling speed of 12 m/min, includes a chain counter sensor, and operates with a current of 130 A at 1500 W power. The windlass is compatible with 8 mm chains and has specific dimensions important for installation.

Description
Ask a Question

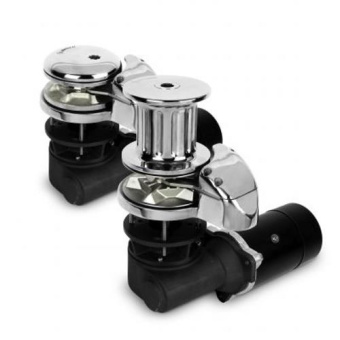

Italwinch Orchid Windlass 12V 1500W / Chain 8mm OR-1512-08L

The Italwinch Orchid Windlass is a highly efficient and powerful electric winch designed specifically for marine applications. With a robust construction and advanced features, it ensures a reliable performance in various conditions.
- Product Number: OR-1512-08L
- Unit of Sale: 1 Piece
- Chain Thickness: 8 mm
- EAN Code: 8720763544451
- Brand: Italwinch
- Hauling Speed: 12 m/min
- Chain Counter Sensor: Yes
- Maximum Load: 1250 kg
- Working Load: 170 kg
- Material: Stainless Steel 316
- Voltage: 12 V
- Power: 1500 W
- Current: 130 A
- Series: Orchid
- Type of Execution: Electric
- Voltage Type: VDC

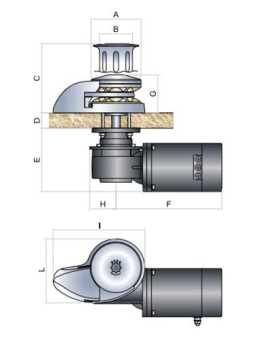

Dimensions as per drawing:
- A: 150 mm
- B: 102 mm
- C: 212 mm
- D: 37/62 mm
- E: 141 mm
- F: 252 mm
- G: 107 mm
- H: 78 mm
- I: 268 mm
- L: 188 mm
