Italwinch Orchid Windlass 12V 1500W / Chain 10mm ISO

SKU: EX OR-1512-10L

€ 2.207,92

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

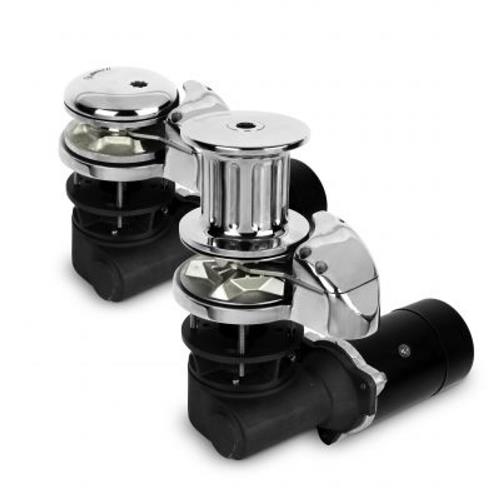

The Italwinch Orchid Windlass (Model OR-1512-10L) is a powerful 12V electric winch designed for maritime use, featuring a robust stainless steel 316 construction and a hauling speed of 12 m/min. It accommodates a 10mm chain and has a maximum load capacity of 1250 kg, with a working load of 170 kg. Equipped with a chain counter sensor and rated at 1500W with a 130A ampere rating, it is an efficient solution for various boating applications. Key dimensions include a height of 150 mm (A) and a length of 268 mm (I).

Description
Ask a Question

Italwinch Orchid Windlass 12V 1500W / Chain 10mm ISO OR-1512-10L

The Italwinch Orchid Windlass is a powerful and efficient electric winch designed for maritime use. With a robust construction and high loading capacity, it ensures dependable performance for a variety of boating applications.
- Product Number: OR-1512-10L
- Unit of Sale: 1 Piece
- Chain Thickness: 10 mm
- EAN Code: 8720763544437
- Brand: Italwinch
- Hauling Speed: 12 m/min
- Chain Counter Sensor: Yes
- Maximum Load: 1250 kg
- Working Load: 170 kg
- Voltage Type: VDC
- Ampere Rating: 130 A
- Power: 1500 W
- Material: Stainless Steel 316
- Series: Orchid

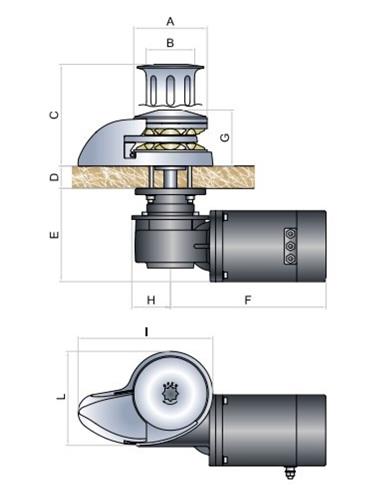

Dimensional Specifications
- A: 150 mm
- B: 102 mm
- C: 212 mm
- D: 37/62 mm
- E: 141 mm
- F: 252 mm
- G: 107 mm
- H: 78 mm
- I: 268 mm
- L: 188 mm
