SKU:
EX NV16-11HY-14DT-S
€ 20.565,69
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Italwinch NV-16 is a high-performance hydraulic windlass designed for demanding marine environments, featuring a robust stainless steel 316 construction. It has a pulling speed of 12 meters per minute and a maximum load capacity of 3000 kg, making it effective for anchoring and mooring tasks. The unit, which uses a 14 mm chain, has the product number NV16-11HY-14DT-S and comes with specific dimensions: A=330 mm, B=250 mm, C=155 mm, D=400 mm, E=150 mm, F=340 mm, G=365 mm, and H=246 mm.
- Description
- Ask a Question
-

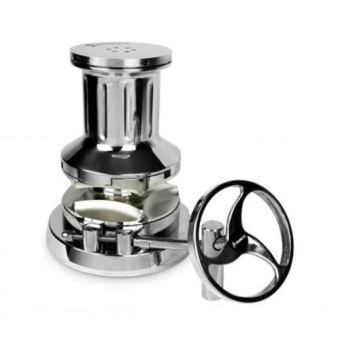

Italwinch NV-16 Hydraulic Windlass / Chain 14mm With Drum And Stud Link
The Italwinch NV-16 is a high-performance hydraulic windlass designed to meet the needs of demanding marine environments. This reliable equipment boasts robust construction and impressive capabilities, ensuring smooth and efficient operation for anchoring and mooring tasks.
- Product Number: NV16-11HY-14DT-S
- Unit of Sale: 1 Piece
- Chain Thickness: 14 mm
- EAN Code: 8720763544345
- Brand: Italwinch
- Pulling Speed: 12 meters/minute
- Maximum Load Capacity: 3000 kg
- Hydraulic Series: NV16
- Material: Stainless Steel 316
- Working Load: 3000 kg

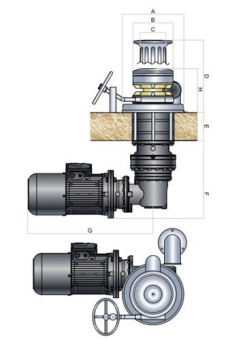

- A: 330 mm
- B: 250 mm
- C: 155 mm
- D: 400 mm
- E: 150 mm
- F: 340 mm
- G: 365 mm
- H: 246 mm
-
