$ 175,74
1-2 weeks delivery time
-
+

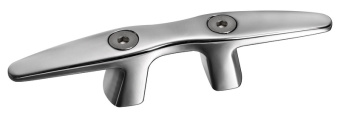

The Osculati 40.153.32 Silhouette cleat is a 320 mm high-strength mooring cleat made of mirror-polished AISI316 stainless steel. Designed for thru-hull installation using Ø 14 mm bolts spaced at 96 mm, this cleat ensures maximum holding power and long-term corrosion resistance. Its wide 64 mm base and discreet profile make it ideal for large yachts and commercial vessels requiring both performance and aesthetic integration.
- Description
- Ask a Question
-
Osculati 40.153.32 – Silhouette Cleat Mirror-Polished AISI316 Thru-Hull Screw-Mounting 320 mm
The Osculati Silhouette cleat (item 40.153.32) is the largest model in the Silhouette thru-hull series, engineered for high-load marine applications. Fabricated from premium AISI316 stainless steel and mirror-polished for enhanced corrosion resistance and visual appeal, this cleat combines robust performance with a clean, flush-deck installation. Its thru-bolt mounting system using Ø 14 mm bolts provides exceptional strength and reliability for mooring large vessels.
Key Features:
- Marine-grade AISI316 stainless steel with mirror-polished finish
- Thru-hull screw mounting using Ø 14 mm bolts
- Designed for large yachts, catamarans, and commercial craft
- Wide 64 mm base for better load distribution
- Discreet, low-profile design for flush deck integration
Technical Specifications:
Item Length (A) mm Width (B) mm Height (C) mm Stud Spacing (D) mm Base Width (E) mm Through Bolt Ø mm Silhouette cleat 320 mm (40.153.32) 320 64 136 96 52 14
This cleat is built for professional-grade installations where strength, corrosion resistance, and clean design are essential. A perfect fit for new builds or refits on high-end vessels.
Documents
Osculati Catalogue 2025 - page 722 Size: 226,4 Kb -
