€ 133,02
1-2 weeks delivery time
-
+
The Osculati 43.122.50 zinc ogive anode is built for 50 mm marine propeller shafts with a 36×3 mm threaded end. Featuring a replaceable zinc core (Osculati 43.250.00), it provides efficient galvanic protection at the shaft tip while maintaining excellent hydrodynamic performance. Ideal for saltwater vessels where durability and serviceability are crucial.
- Description
- Ask a Question
-

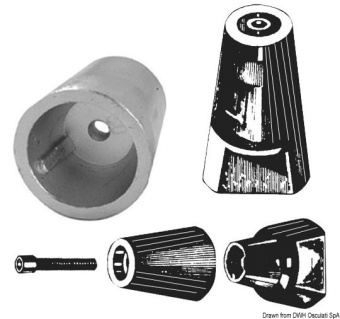

Osculati 43.122.50 – Propeller Shaft Zinc Ogive Anode 50 mm
The Osculati 43.122.50 is a heavy-duty ogive-style zinc anode designed for marine propeller shafts with a diameter of 50 mm. Its threaded body (36×3 mm) allows secure installation on the shaft end, while the replaceable zinc insert (Osculati 43.250.00) offers long-lasting protection against galvanic corrosion. The bullet-shaped hydrodynamic design minimizes drag, making it ideal for saltwater propulsion systems requiring maximum performance and maintainability.
Key Features
- Material: High-purity marine-grade zinc
- Thread size: 36×3 mm
- For 50 mm diameter shafts
- Replaceable zinc insert: Osculati 43.250.00
- Ogive shape for reduced turbulence and drag
- Focused protection of shaft tip threads
Technical Specifications
Item Material Shaft Diameter (mm) Thread Zinc Replacement 43.122.50 Zinc 50 36×3 43.250.00
Applications
- Marine propeller shafts with 50 mm diameter and 36×3 mm thread
- Localized galvanic protection for threaded shaft ends
- Yachts, motorboats, and light commercial vessels in saltwater
Installation Notes
- Thread the anode securely onto a clean 36×3 mm shaft end
- Monitor zinc insert (43.250.00) wear and replace when ~50% depleted
- Check tightness and condition during regular maintenance or haul-out
Documents
Osculati Catalogue 2025 - page 793 Size: 215 Kb -
