SKU:
VDM AC001205
€ 18,58
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Self-Locking D Shackle with a 10 mm diameter is designed for optimal strength and reliability in heavy-duty applications. Made from 316 stainless steel, it offers exceptional corrosion resistance and is capable of supporting large loads, with a working load limit (WLL) of 860 kg and a breaking load of 4300 kg. Weighing 98 grams, its dimensions include an overall length of 33 mm and a pin diameter of 10 mm. This shackle is produced by Wichard, ensuring secure connections in demanding conditions.
- Description
- Ask a Question
-

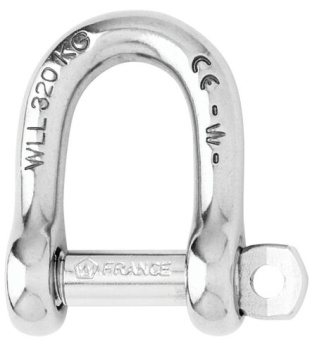

Self-Locking D Shackle - Dia 10 mm
The Self-Locking D Shackle - Dia 10 mm is built to offer optimal strength and reliability for heavy-duty use. Made from 316 stainless steel, this shackle provides exceptional corrosion resistance and is designed to support large loads, ensuring secure connections in demanding conditions.
- Materials: 316 stainless steel grade
- Working load: 1520 kg
- WLL: 860 kg
- Breaking load: 4300 kg
- Weight: 98 g
- A: 33 mm
- B: 20 mm
- C: 10 mm
- D: 19 mm
- D diameter: 10 mm
- E: 9 mm
- F: 57 mm
- G: 52 mm
Brand: Wichard
Product Number: 1205
Wichard SKU: 1205
VDM - Reya SKU: AC001205
EAN CODE: 3587790012057 -
