SKU:
VDM AC0011247
€ 149,81
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The HR Bow Shackle with a 16 mm diameter is constructed from HR 17.4 PH stainless steel, providing exceptional strength and resistance for demanding environments. It has a working load limit (WLL) of 3800 kg and a breaking load of 19000 kg, making it suitable for heavy-duty applications. Weighing 526 grams, its dimensions include an overall length of 70 mm and a pin diameter of 16 mm. This shackle is manufactured by Wichard, ensuring high quality and reliability.
- Description
- Ask a Question
-

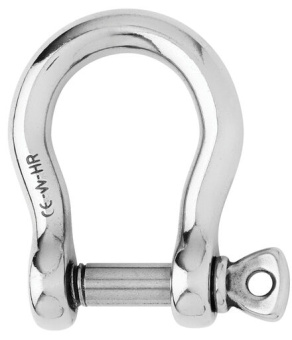

HR Bow Shackle - Dia 16 mm
The HR Bow Shackle in 16 mm diameter is built from HR 17.4 PH stainless steel, offering great resistance and strength. It is suitable for demanding environments, with a working load of up to 6800 kg.
- Materials: HR 17.4 PH stainless steel grade
- Working load (kg): 6800
- WLL (kg): 3800
- Breaking load (kg): 19000
- Weight (g): 526
- A (mm): 70
- B (mm): 32
- C (mm): 16
- D (mm): 32
- D diameter (mm): 16
- E (mm): 15
- H (mm): 50
- M (mm): 83
- Brand: Wichard
- Product Number: 11247
Wichard SKU: 11247
VDM - Reya SKU: AC0011247
EAN CODE: 3587790112474 -
