SKU:
TN 00811082
€ 341,53
1-2 weeks delivery time
-
+
The Ankerplex AP8AL is a lightweight aluminum anchor weighing 2.6 kg, suitable for boats between 5.5 and 7.5 meters. It provides triple the holding force of conventional anchors and assembles quickly without tools using three flat metal parts and a shackle. The roll bar ensures correct positioning in the seabed, and its compact parts allow for easy storage, even under a mattress.
- Description
- Ask a Question
-

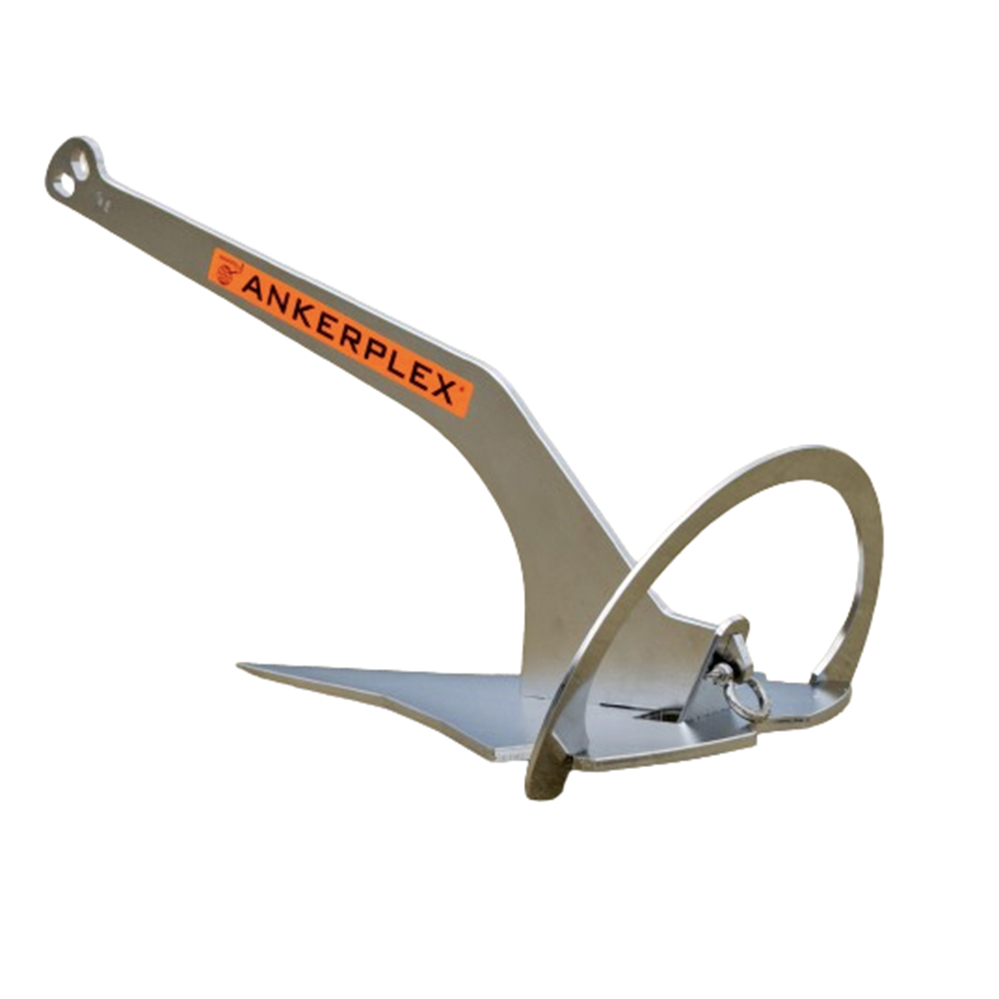

Ankerplex AP8AL - Anchor 2.6 kg Aluminum
This compact anchor stands out with a unique design focused on easy storage and high holding power. Engineered to deliver three times the holding force of conventional anchors of the same weight, it performs on par with the latest generation of anchors.
- High Holding Power (HHP) anchor made from three flat metal parts forming a sturdy, self-supporting 3D unit
- Simple assembly using a normal shackle without tools; quick and error-proof due to innovative design
- Roll bar ensures proper positioning for rapid burial in the seabed
- No moving parts to jam or damage during use or handling
- Storage is easy thanks to flat parts; can fit under a mattress when disassembled
- Constructed from durable AISI 304 stainless steel, ideal for salty environments, with superior finish compared to galvanized anchors
- Recommended for boats of 5.5 to 7.5 meters length, depending on weather conditions

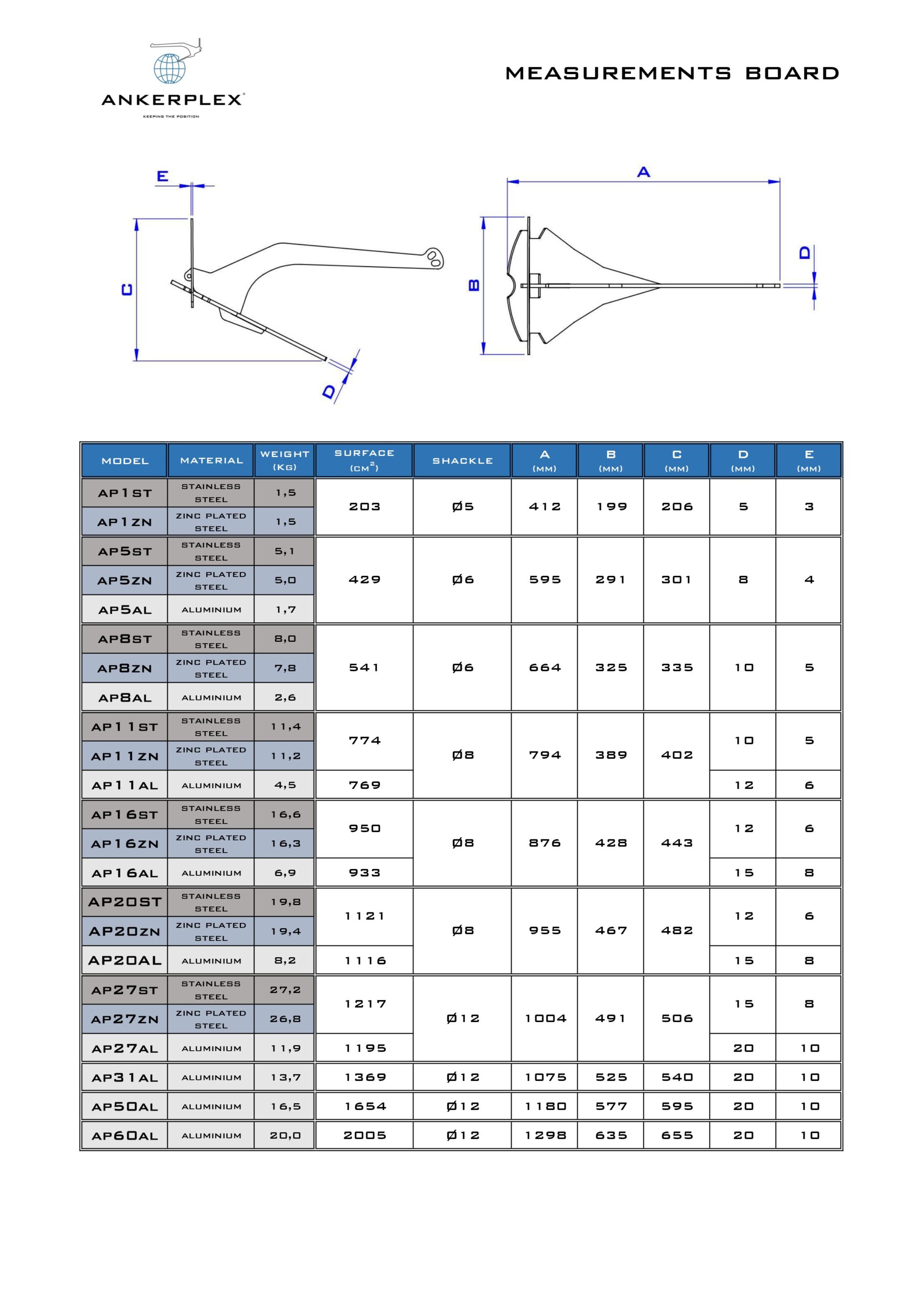

- Specifications:
- Weight: 2.6 kg
- Material: Aluminium
- Surface area: 541 cm²
- Length: 664 mm
- Width: 325 mm
- Height: 335 mm
- Material thickness: 10 mm
- Roll bar thickness: 5 mm
- Model: AP8AL
- Order number: 00811082

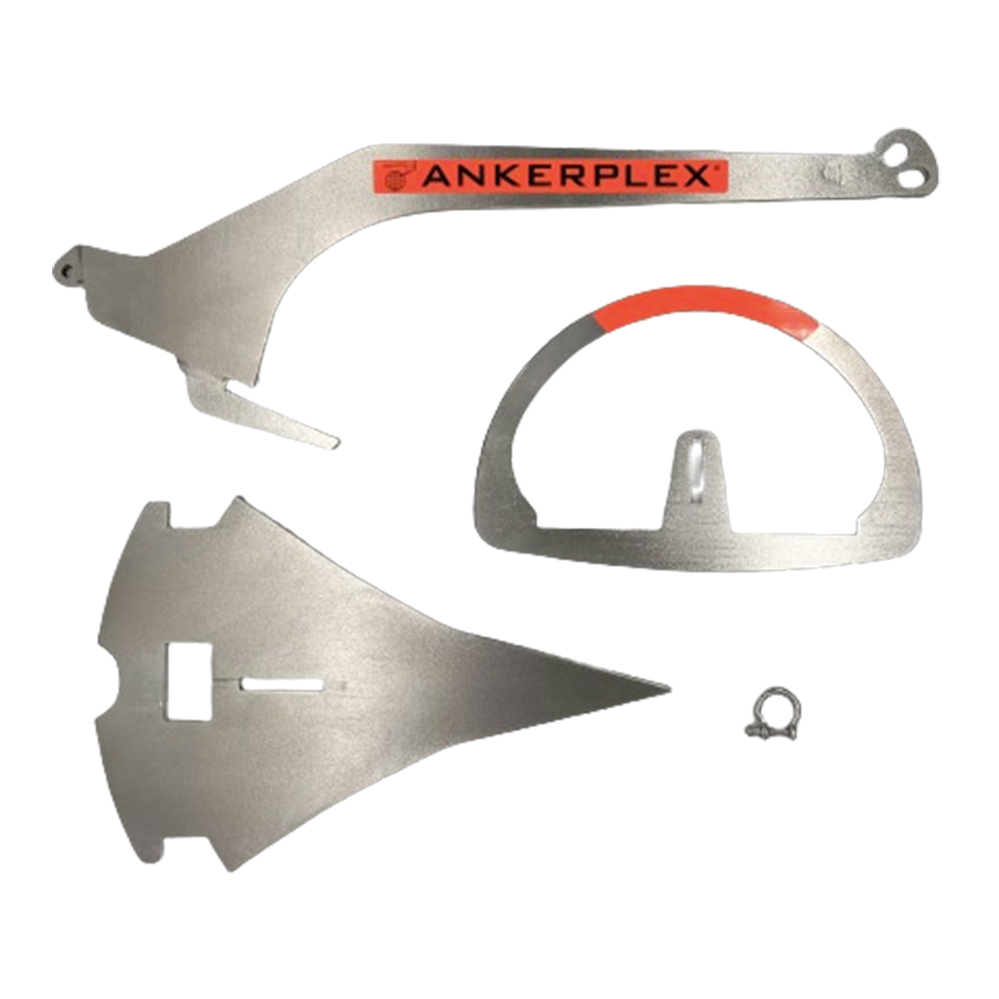

- Assembly instructions:
- Arrange shaft, rolling paper, roll bar, and shackle side by side
- Insert hook-shaped shaft protrusion into rolling paper’s central hole and slide together
- Insert roll bar into rolling paper recesses
- Fold roll bar top over shaft locking hole
- Secure assembly with supplied shackle pin through the shaft protrusion hole
- Note: Compliance with local regulations, classification, or insurance requirements should be verified before selection
-
