The Ankerplex AP60AL is a 20 kg aluminum anchor for larger vessels up to 20 meters. It triples the holding power of traditional anchors and consists of three flat metal parts that assemble quickly without tools. Its roll bar guarantees proper orientation for fast seabed embedding, and the parts store compactly, making it practical for limited spaces.
- Description
- Ask a Question
-

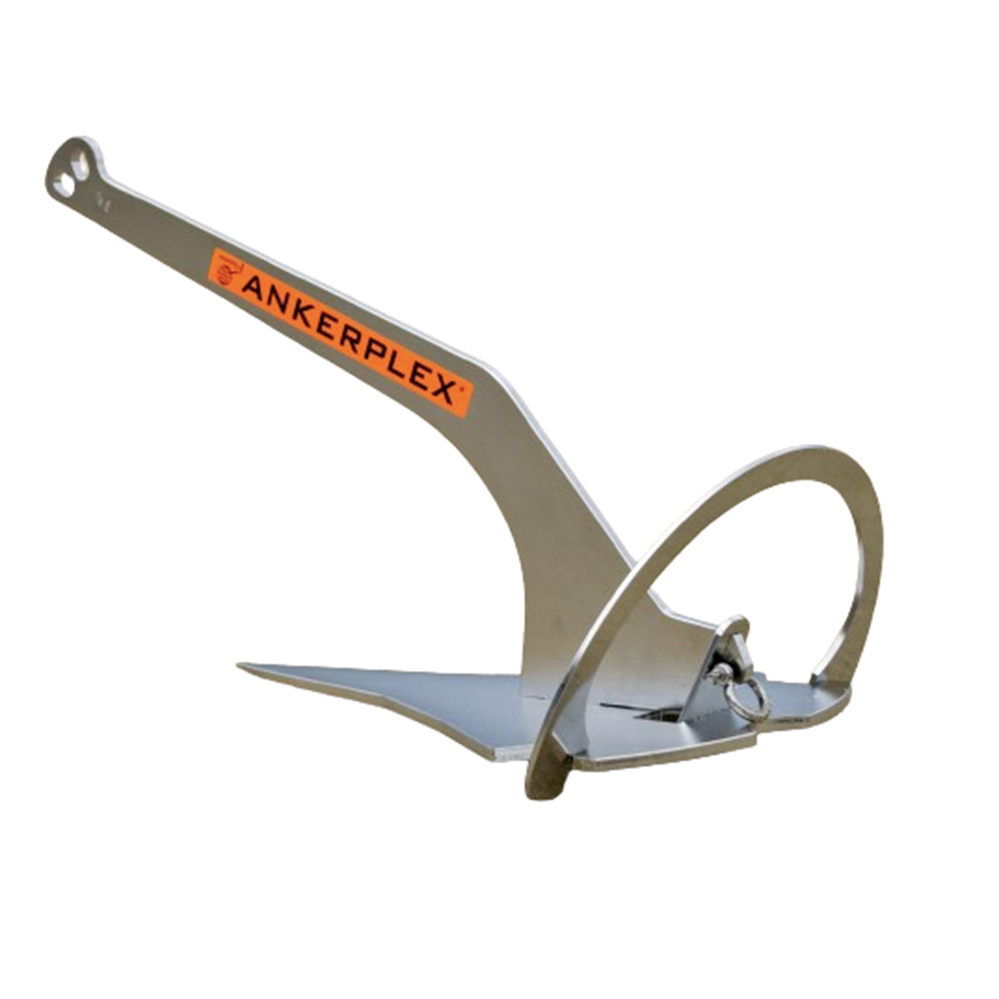

Ankerplex AP60AL - Anchor 20 kg Aluminum
Designed for larger vessels, this anchor combines compact storage with exceptional holding strength. It triples the holding power of traditional anchors of equivalent weight and matches the performance of the newest anchor models available.

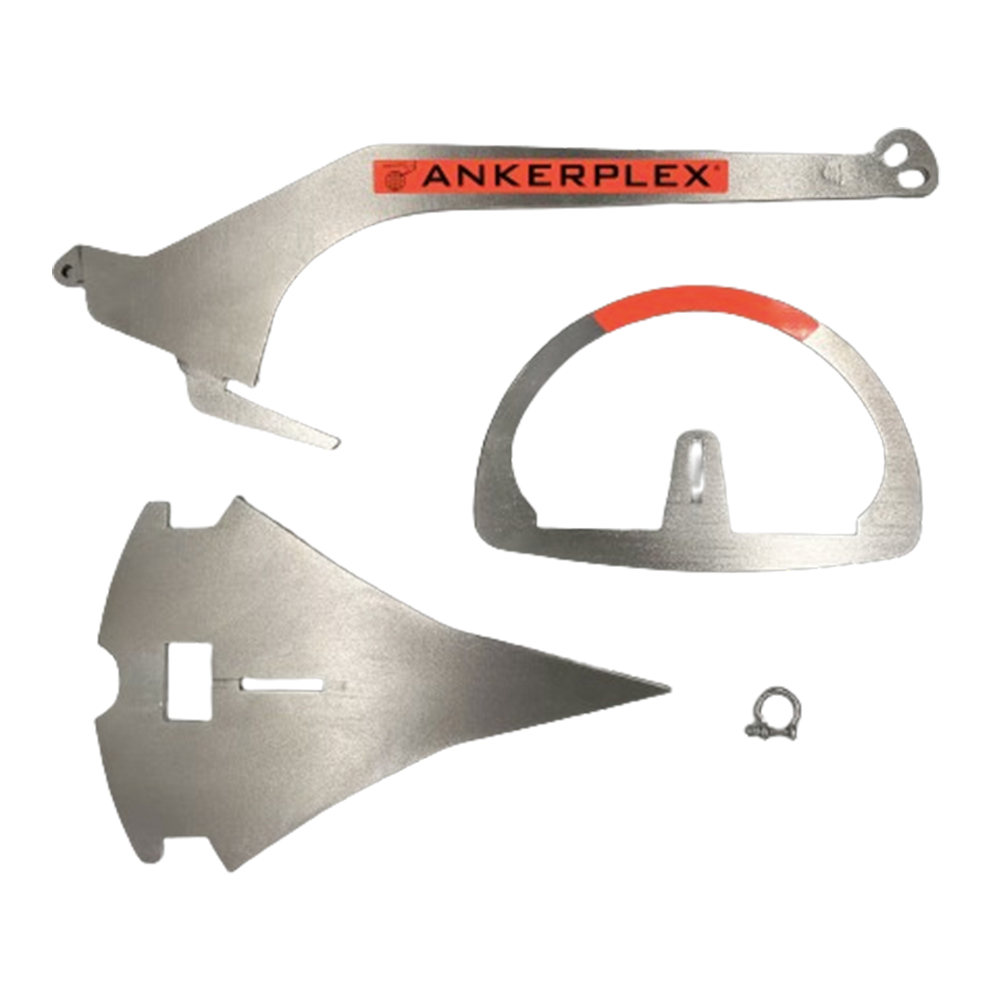

- Composed of three high-quality flat metal parts that assemble into a robust three-dimensional anchor
- Fast and straightforward assembly with a regular shackle; no tools required and no risk of incorrect setup
- Roll bar maintains the anchor’s correct orientation for swift seabed penetration
- Completely free of moving parts to prevent jamming or damage during use or handling
- Compact and easy to store; individual parts fit comfortably even in limited spaces
- Manufactured from AISI 304 stainless steel ensuring excellent durability and corrosion resistance in marine environments
- Recommended for ships 20 meters in length, suitable for various weather conditions

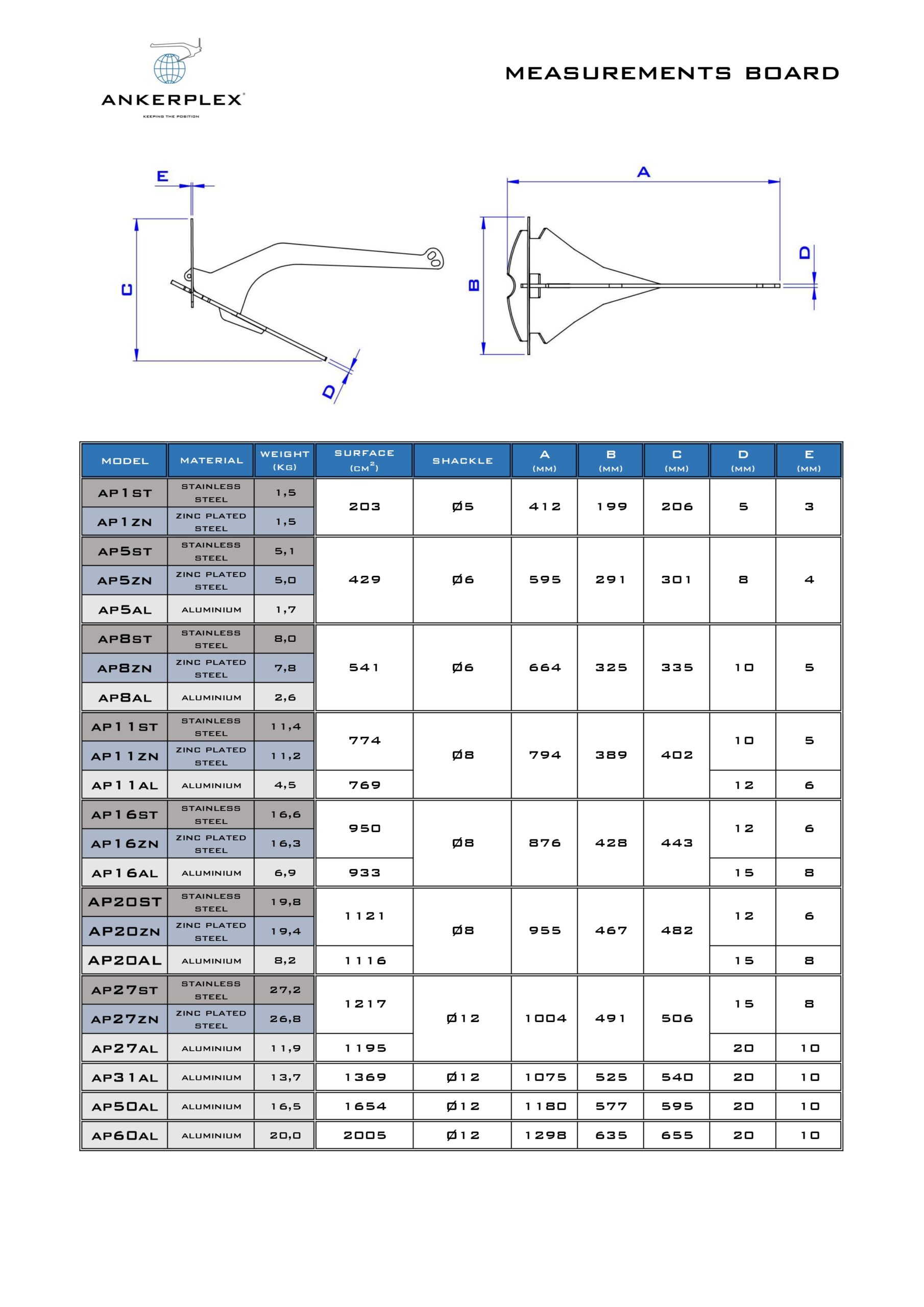

- Specifications:
- Weight: 20 kg
- Material: Aluminium
- Surface area: 2005 cm²
- Length: 1295 mm
- Width: 635 mm
- Height: 655 mm
- Material thickness: 20 mm
- Roll bar thickness: 10 mm
- Model: AP60AL
- Order number: 00811600
- Assembly process:
- Lay out shaft, rolling paper, roll bar, and shackle
- Connect shaft’s hook-shaped end into rolling paper’s central hole and slide together
- Fit roll bar into rolling paper recesses
- Fold roll bar top over shaft locking hole
- Lock the assembly securely with the shackle pin through the shaft’s protrusion hole
- Important: Verify applicable regulations and insurance requirements before selecting the anchor for your vessel
-
