SKU:
TN 00811050
€ 349,03
1-2 weeks delivery time
-
+
The Ankerplex AP5ST is a compact stainless steel anchor weighing 5.1 kg, suitable for boats up to 6.5 meters in good weather. It delivers triple the holding force of traditional anchors and assembles rapidly from three flat parts and a shackle without tools. The roll bar ensures proper seabed burial, and its parts can be stored easily in small spaces.
- Description
- Ask a Question
-

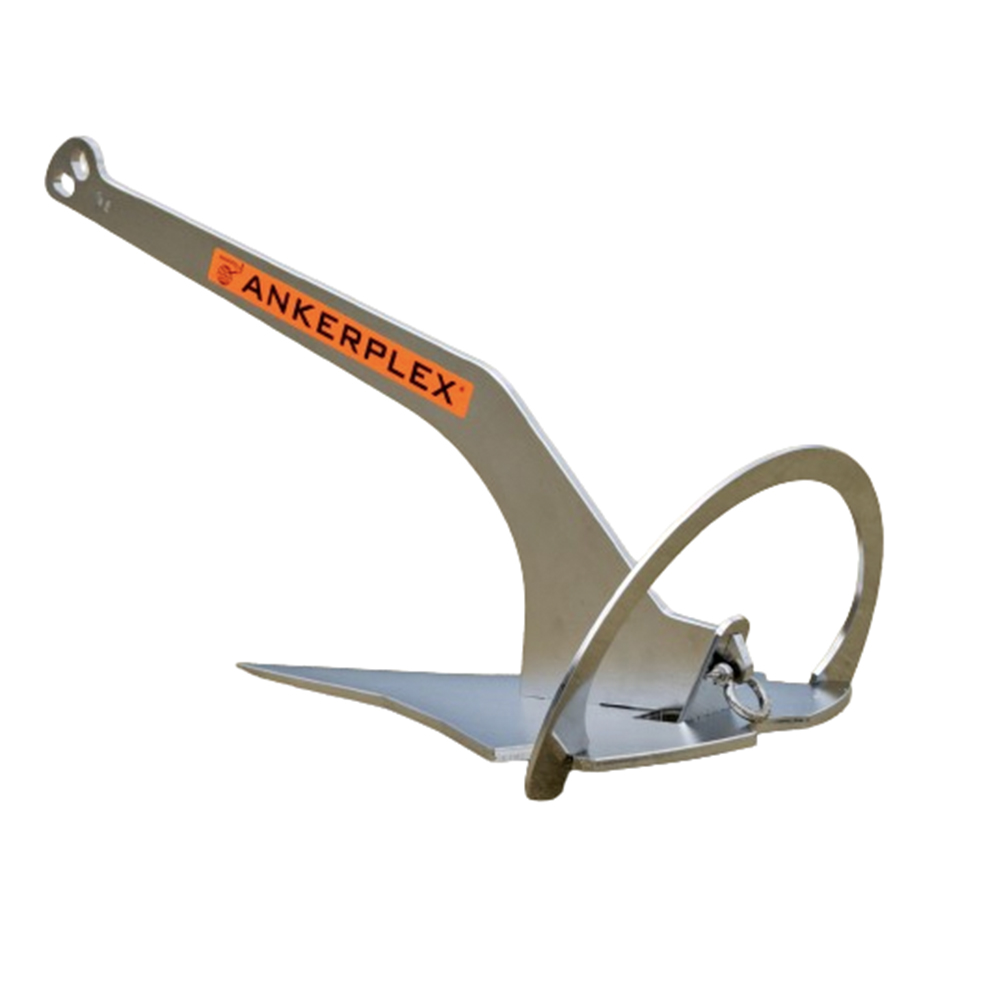

Ankerplex AP5ST - Anchor 5.1 kg Stainless Steel
The Ankerplex AP5ST is a compact, high holding power anchor designed to deliver three times the holding force of traditional anchors weighing the same. Its innovative structure and materials ensure reliable performance and easy storage, making it an excellent choice for medium-sized boats.
- High Holding Power (HHP) anchor made of AISI 304 stainless steel, ideal for salty environments

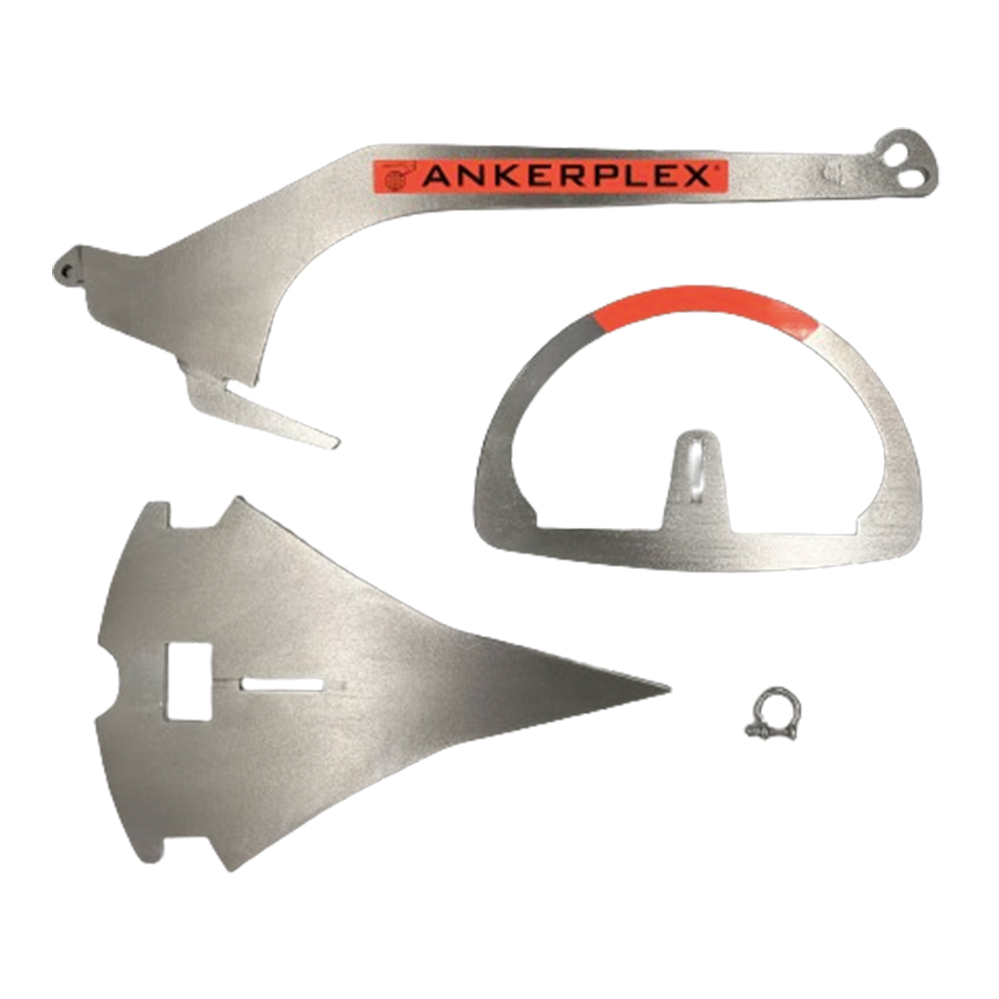

- Composed of three flat metal parts that assemble quickly without tools, secured by a standard shackle
- Roll bar ensures correct positioning for rapid burial in the seabed
- No moving parts, eliminating risk of jamming or damage during use and handling
- Compact design allows easy storage, even under a mattress in separated parts

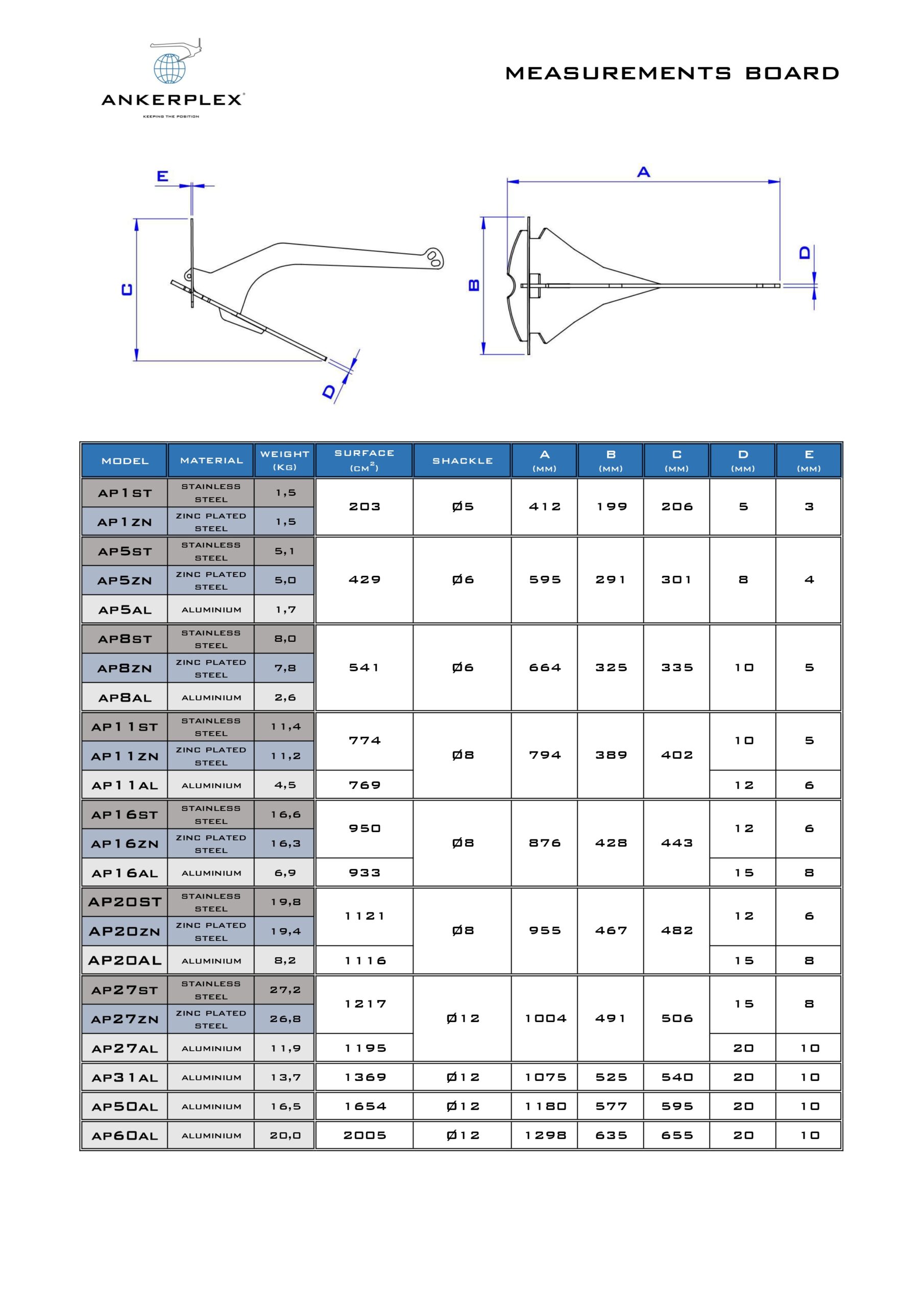

- Dimensions: Length 595 mm, Width 291 mm, Height 301 mm
- Weight: 5.1 kg; Surface area: 429 cm²; Material thickness: 8 mm; Roll bar thickness: 4 mm
- Recommended for ships up to 6.5 meters in good weather and 5.5 meters in general weather
- Order number: 00811050; Supplier code: AP5ST
Assembly Instructions:
- Arrange the four parts (shaft, rolling paper, roll bar, shackle) side by side.
- Insert the shaft’s hook-shaped protrusion into the rolling paper’s central rectangular hole and slide together.
- Fit the roll bar into the recesses of the rolling paper.
- Fold the top of the roll bar towards the shaft so its recess aligns with the shaft's locking hole.
- Secure the assembly by inserting the shackle pin through the shaft's protrusion hole, ensuring stability and security.
-
