SKU:
TN 00811052
€ 226,92
1-2 weeks delivery time
-
+
The Ankerplex AP5AL is a lightweight 1.7 kg aluminum anchor designed for small boats where weight is important. It features a modular design for easy storage and assembly, offering three times the holding power of traditional anchors. Made from durable aluminum alloys, it includes three interlocking flat metal parts and a roll bar for proper seabed positioning. The anchor has no moving parts, preventing jams, and is ideal as a spare or for racing boats and seaplanes.
- Description
- Ask a Question
-

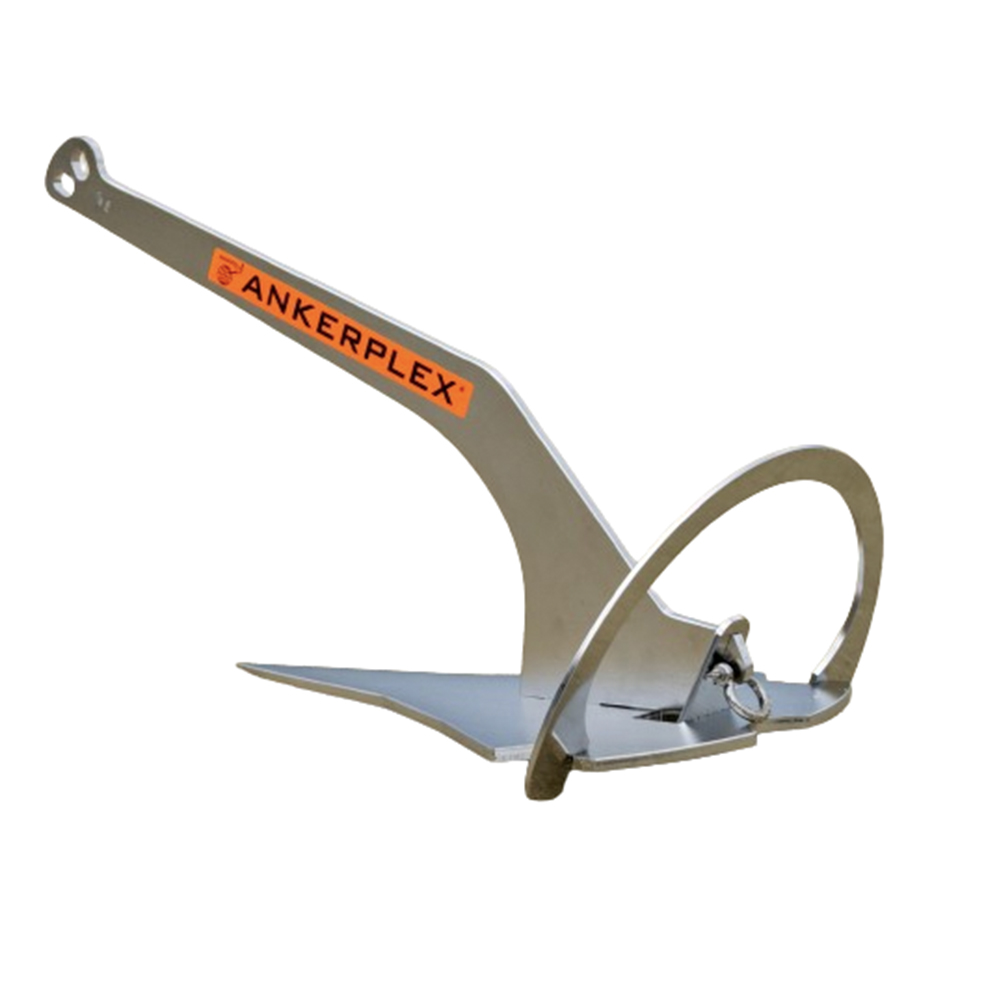

Ankerplex AP5AL - Anchor 1.7 kg Aluminum
The Ankerplex AP5AL anchor offers a lightweight yet powerful solution for vessels where weight is critical. Its unique modular design ensures easy storage and assembly, while providing excellent holding strength suitable for various small boats and watercraft.
- High Holding Power design triples the holding force of traditional anchors at the same weight.
- Made of durable and lightweight aluminum alloys AL5083 and AL5754, providing mechanical resistance and longevity.

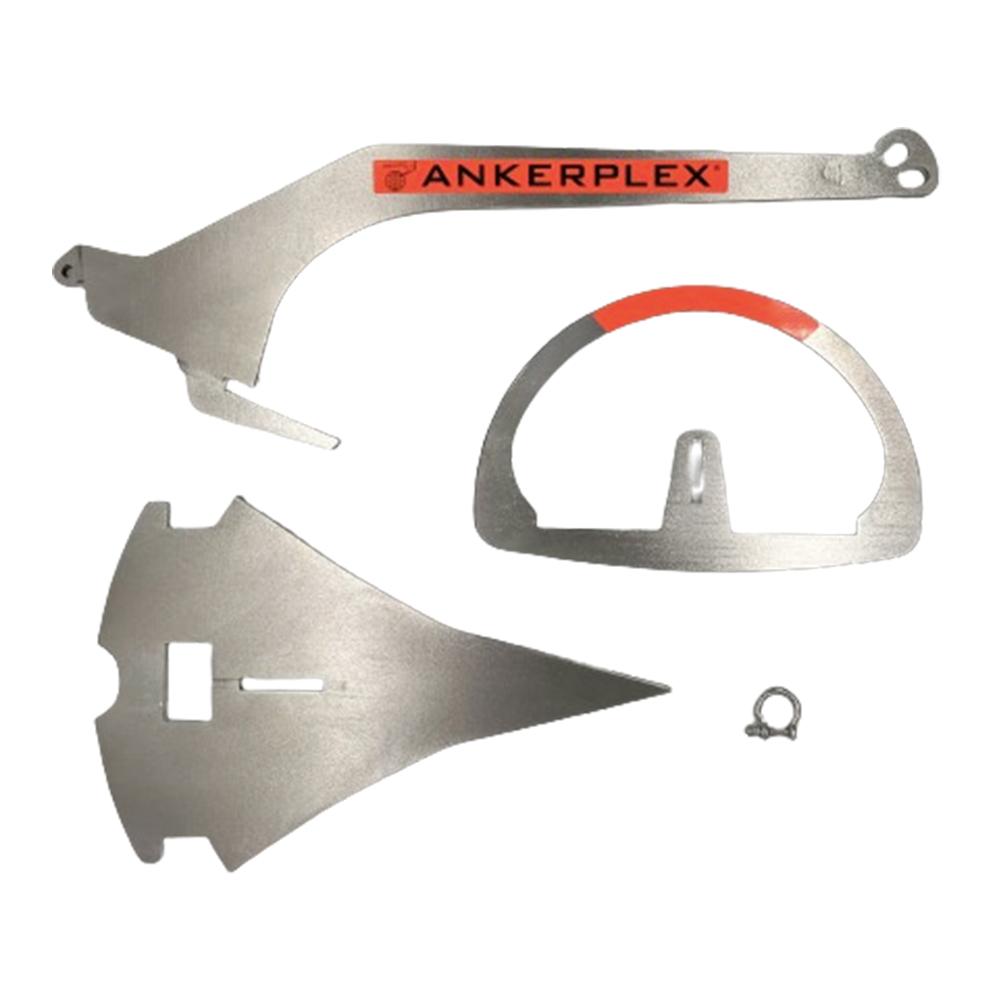

- Consists of three flat metal components that interlock with a standard shackle to form a strong, self-supporting unit.
- Roll bar guarantees proper orientation for rapid anchoring in different seabed conditions.
- No moving parts, preventing jamming or damage during handling and use.
- Easy to disassemble and compact for storage; ideal as a spare anchor or for racing boats and seaplanes.
- Assembly instructions:
- Arrange shaft, rolling paper, roll bar, and shackle.
- Insert shaft’s hook into rolling paper’s central hole and slide together.
- Insert roll bar into rolling paper recesses.
- Fold roll bar top to fit over shaft locking hole.
- Secure assembly by inserting shackle pin through shaft protrusion hole.

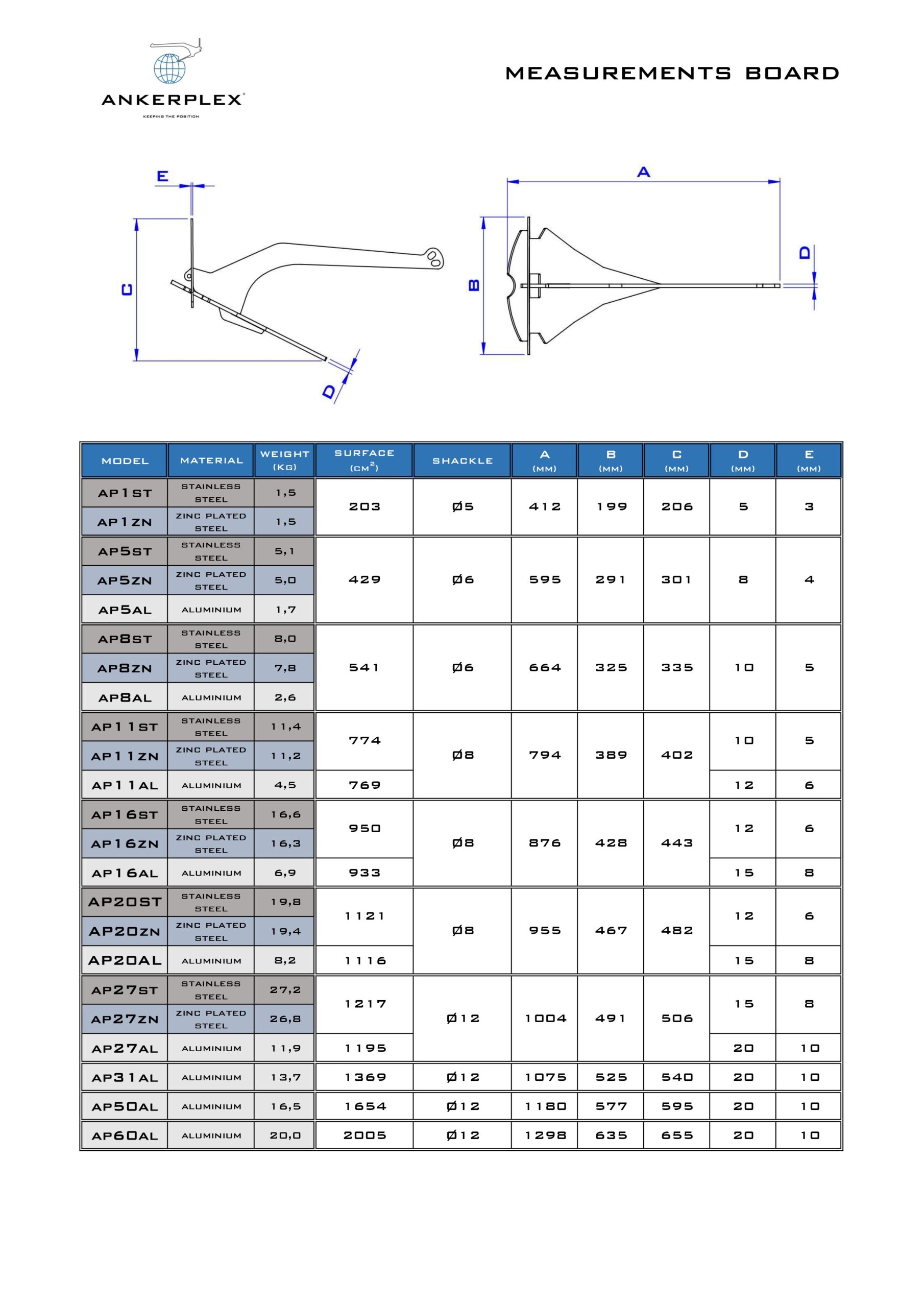

- Specifications:
- Order number: 00811052
- Supplier code: AP5AL
- Material: Aluminum (AL5083, AL5754)
- Weight: 1.7 kg
- Surface area: 429 cm²
- Length: 595 mm
- Width: 291 mm
- Height: 301 mm
- Material thickness: 8 mm
- Roll bar thickness: 4 mm
- Suitable for: 5.5 meter ships, dinghies, kayaks
-
