SKU:
TN 00811500
€ 1.949,09
1-2 weeks delivery time
-
+
The Ankerplex AP50AL is a 16.5 kg aluminum anchor engineered for large boats up to 20 meters. It features a flat-part design with three robust plates that form a strong 3D unit using a shackle, delivering triple the holding power of traditional anchors. The roll bar ensures proper orientation for fast anchoring, and the absence of moving parts reduces risk of jams. Its flat construction allows easy storage, and it assembles quickly without tools.
- Description
- Ask a Question
-

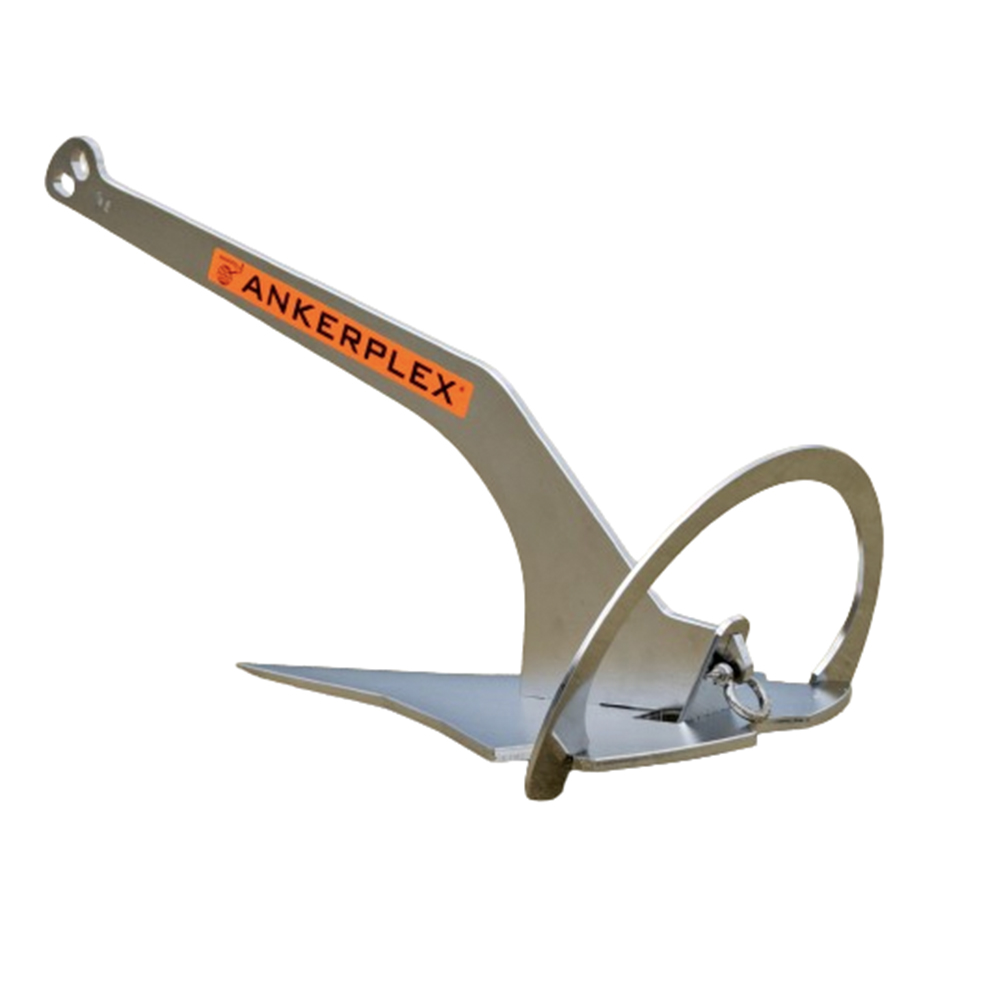

Ankerplex AP50AL - Anchor 16.5 kg Aluminum
The Ankerplex AP50AL is engineered for large boats requiring a lightweight but high-performance anchor. Its unique flat-part design provides excellent holding power and convenience in storage and handling, suitable for ships up to 20 meters.
- High Holding Power anchor that triples the holding force of traditional anchors of the same weight.
- Consists of three robust aluminum plates that assemble easily into a strong 3D unit using a normal shackle.
- Roll bar guarantees correct positioning for rapid and effective seabed anchoring.
- Free of moving parts, eliminating risks of jamming or damage during use and transport.
- Flat construction allows simple storage; parts can fit under a mattress and assemble quickly without tools.
- Made from aluminum offering a good balance of durability, mechanical strength, and lightness.
- Assembly procedure:

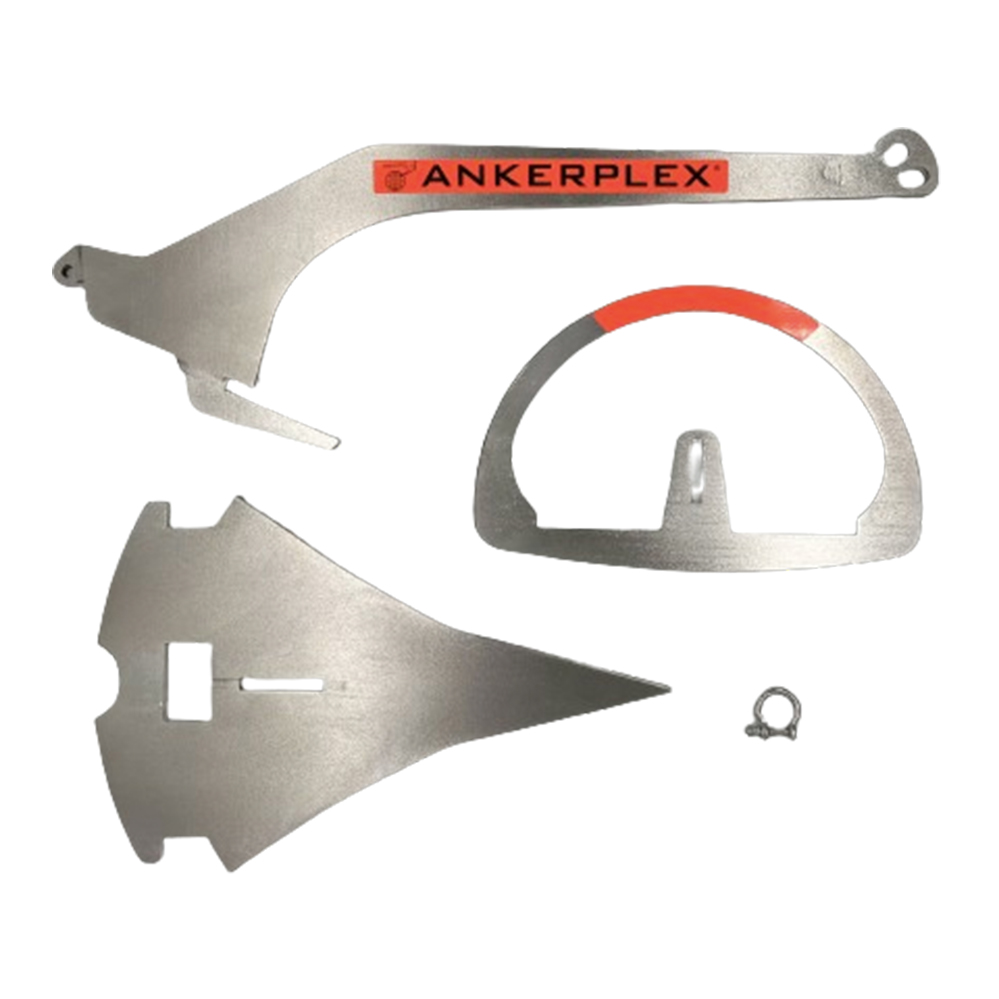

- Arrange the shaft, rolling paper, roll bar, and shackle side by side.
- Insert the shaft’s hook-shaped protrusion into the rolling paper’s rectangular hole and slide them together.
- Insert the roll bar into the rolling paper’s recesses.
- Fold the roll bar’s top to align its recess with the shaft locking hole.
- Secure by mounting the shackle pin through the hole at the shaft’s back protrusion.

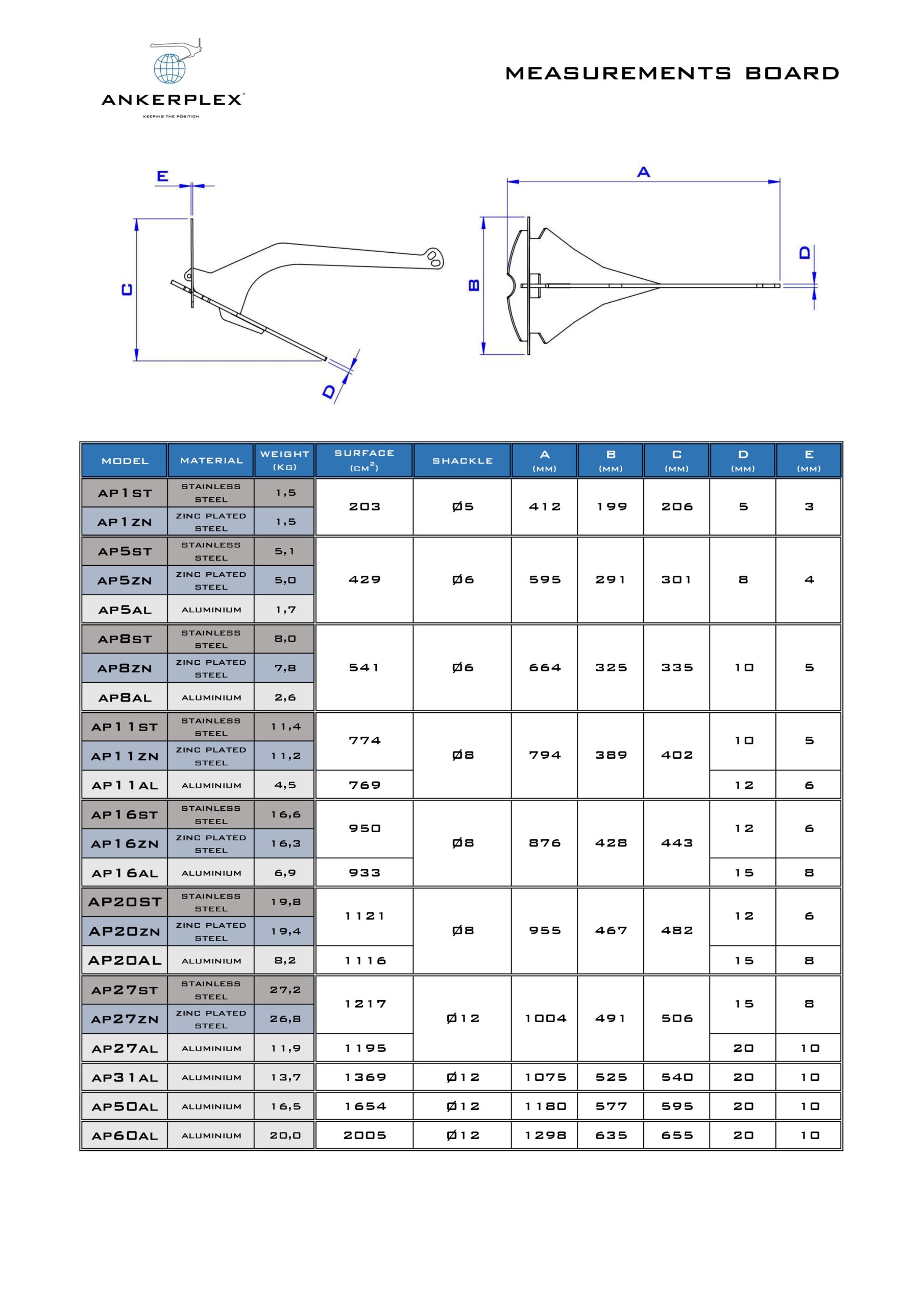

- Specifications:
- Order number: 00811500
- Supplier code: AP50AL
- Material: Aluminum
- Weight: 16.5 kg
- Surface area: 1654 cm²
- Length: 1180 mm
- Width: 577 mm
- Height: 595 mm
- Material thickness: 20 mm
- Roll bar thickness: 10 mm
- Suitable for vessels up to 20 meters in good weather, 15-17 meters generally
-
