SKU:
TN 00811310
€ 1.639,56
1-2 weeks delivery time
-
+
The Ankerplex AP31AL is a 13.7 kg aluminum anchor designed for boats up to 15 meters, offering triple the holding power of traditional anchors. It is composed of three flat parts that assemble into a solid 3D structure with a shackle and features a roll bar for proper positioning. The anchor is free of moving parts, allowing quick assembly and compact storage. Its durable aluminum construction balances strength and corrosion resistance for reliable anchoring.
- Description
- Ask a Question
-

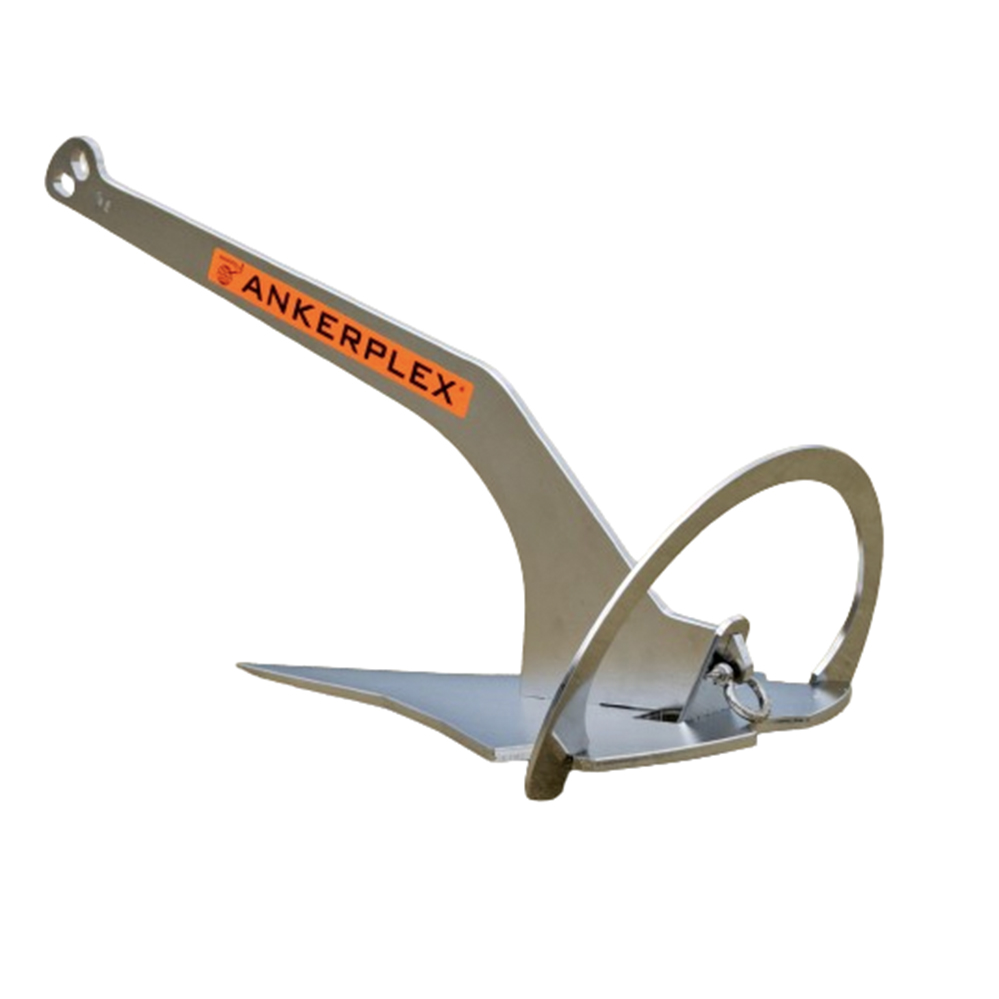

Ankerplex AP31AL - Anchor 13.7 kg Aluminum
The Ankerplex AP31AL offers a powerful yet compact anchoring solution for larger vessels, combining high holding power with easy storage and quick assembly. Designed for boats up to 15 meters in good weather, it delivers reliability and durability through innovative design and high-quality materials.
- High Holding Power anchor, providing triple the grip compared to traditional anchors of the same weight.
- Composed of three flat aluminum parts that connect easily with a standard shackle to form a solid, self-supporting 3D unit.
- Roll bar ensures the anchor is always positioned correctly for fast and efficient seabed penetration.
- No moving parts prevent jamming or damage during use and handling.
- Flat plate design simplifies storage and transport; parts fit compactly and assemble quickly without tools.
- Constructed from aluminum for a balance of strength, weight, and corrosion resistance.

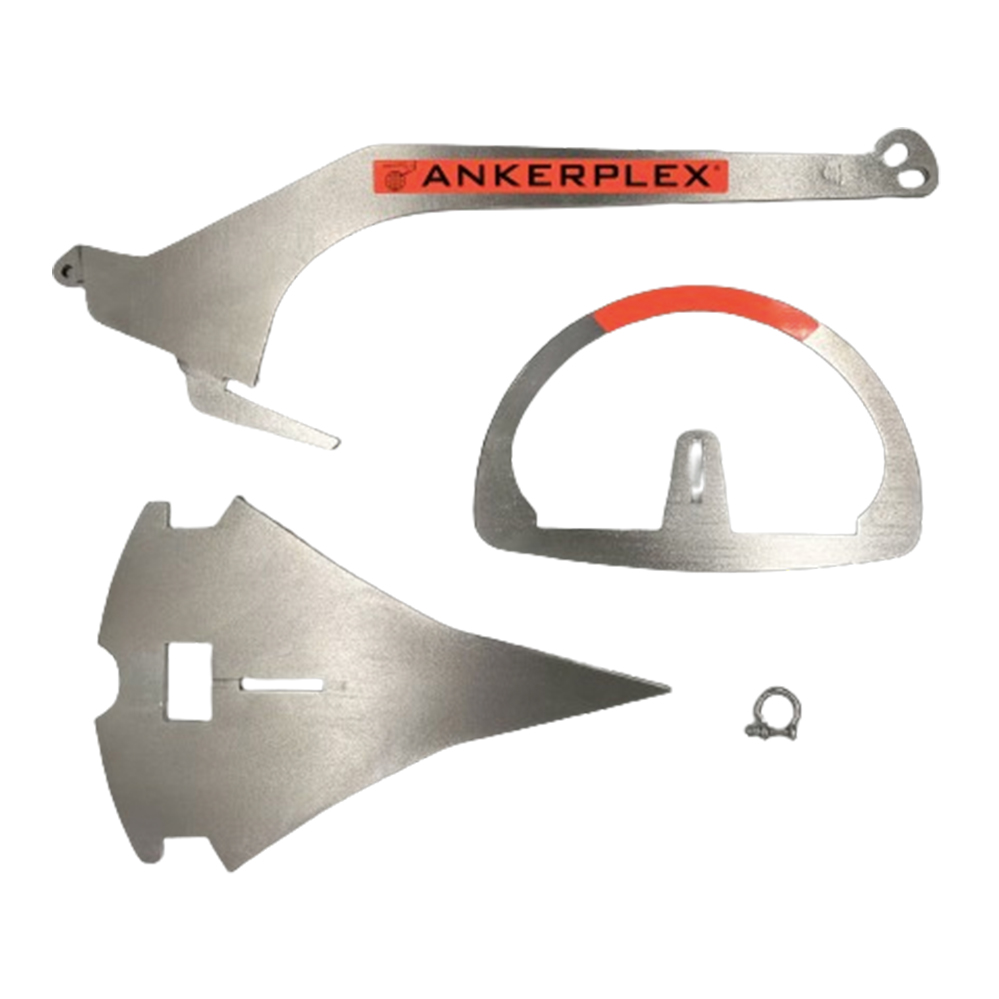

- Assembly steps:
- Place shaft, rolling paper, roll bar, and shackle side by side.
- Insert the shaft’s hook-shaped end into the rolling paper’s rectangular hole and slide them together.
- Fit the roll bar into the rolling paper’s recesses.
- Fold the roll bar’s top over the shaft’s locking hole.
- Secure the assembly by mounting the shackle pin through the hole in the shaft’s rear protrusion.

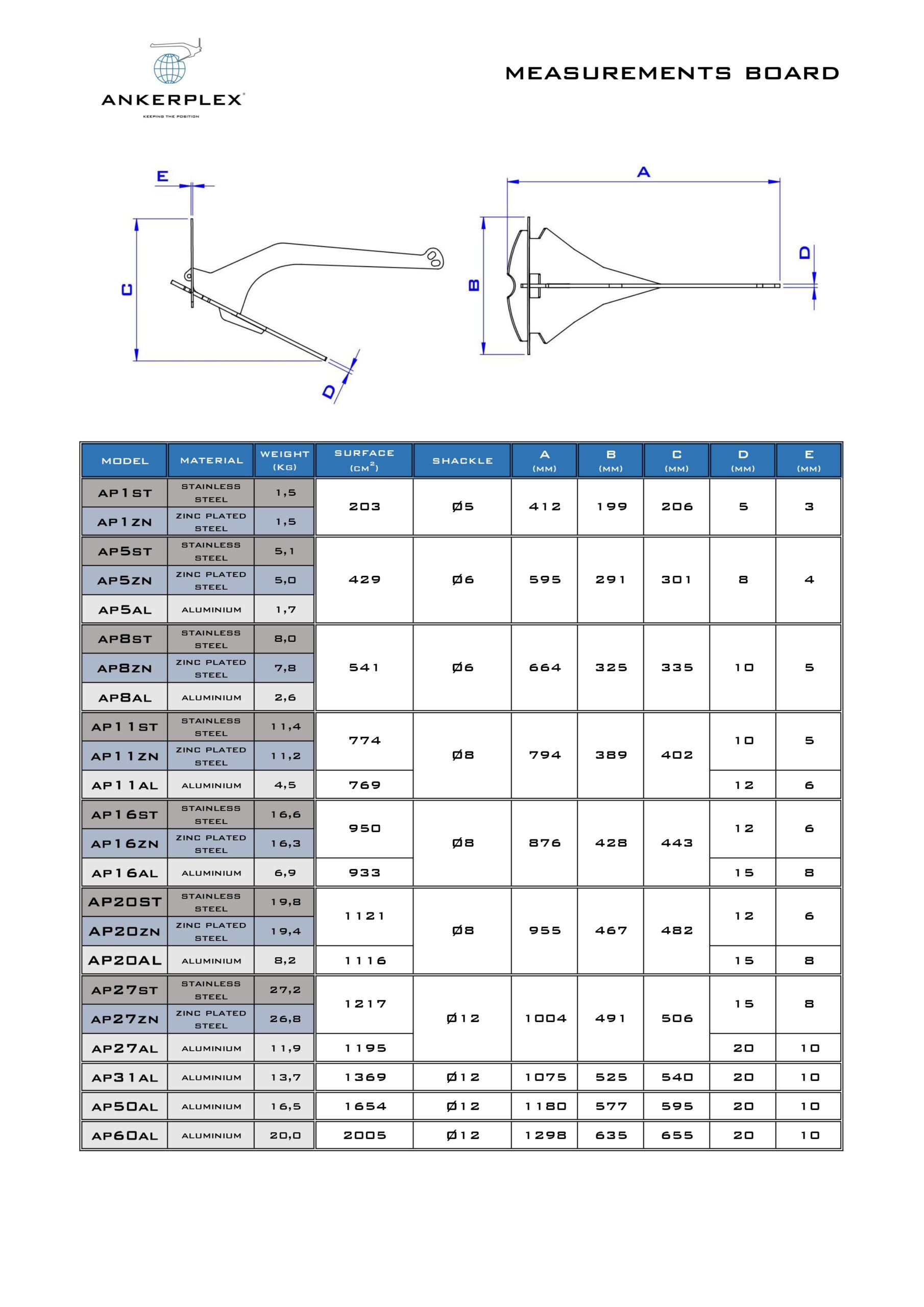

- Specifications:
- Order number: 00811310
- Supplier code: AP31AL
- Material: Aluminum
- Weight: 13.7 kg
- Surface area: 1369 cm²
- Length: 1075 mm
- Width: 525 mm
- Height: 540 mm
- Material thickness: 20 mm
- Roll bar thickness: 10 mm
- Suitable for vessels up to 15 meters in good weather, 14 meters generally
-
