Ankerplex AP27ST - Anchor 27.2 kg Stainless Steel

Ankerplex AP27ST - Anchor 27.2 kg Stainless Steel

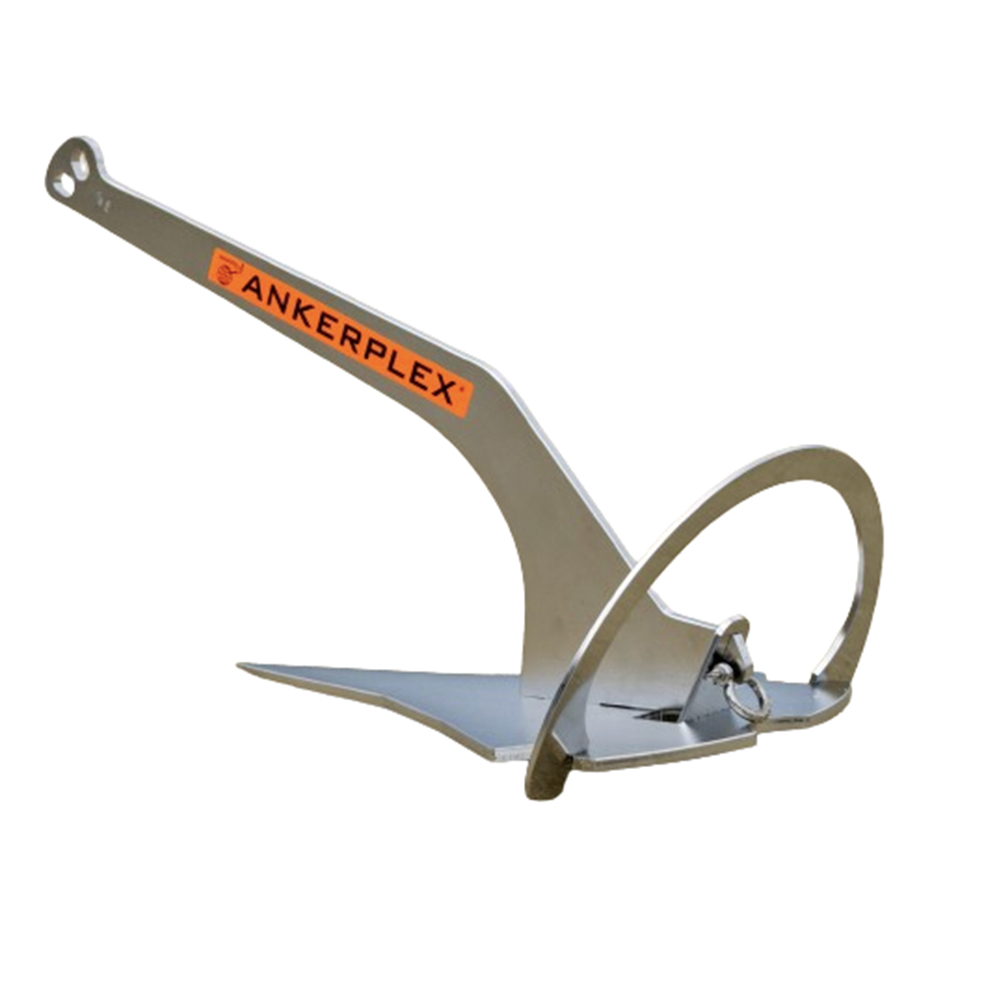

The Ankerplex AP27ST offers a compact and innovative anchor design that delivers exceptional holding power. This anchor combines simplicity and strength, providing a reliable solution for various boat sizes and weather conditions.

• High Holding Power (HHP) anchor, tripling the holding force compared to traditional anchors of the same weight.
• Effectiveness matches top anchors of the latest generation.
• Constructed from durable AISI 304 stainless steel for excellent corrosion resistance in salty environments.
• Consists of three flat metal parts that interlock easily with a standard shackle, forming a solid, self-supporting 3D unit.
• Roll bar ensures the anchor always positions correctly for fast and reliable burying in the seabed.
• No moving parts, eliminating the risk of jamming or damage during handling.
• Flat plate design allows easy storage and transport; parts fit neatly even under a mattress.
• Assembly is quick and tool-free, guided by an innovative design that prevents mistakes.
• Manufacturer’s recommendation based on experience, tests, and specialized publications; users should also consider local regulations and standards.

Assembly Instructions:

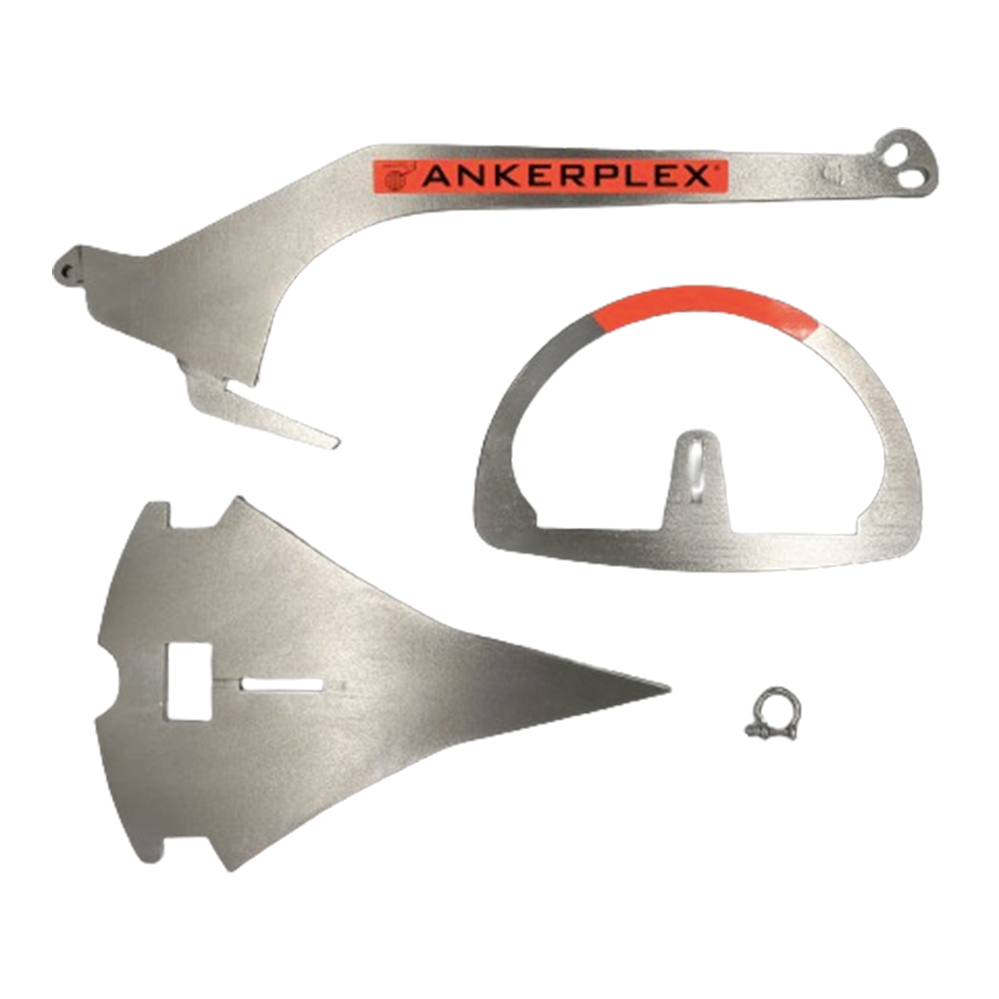

• Lay out all four parts: shaft (stick), rolling paper (tail), roll bar, and shackle.
• Insert the hook-shaped protrusion of the shaft into the central rectangular hole of the rolling paper and slide together.
• Insert the roll bar into the rolling paper's recesses.
• Fold the roll bar's top towards the shaft so its recess aligns over the shaft’s locking hole.
• Secure assembly by mounting the shackle pin through the hole in the shaft’s protrusion.

• Order number: 00811270
• Supplier code: AP27ST

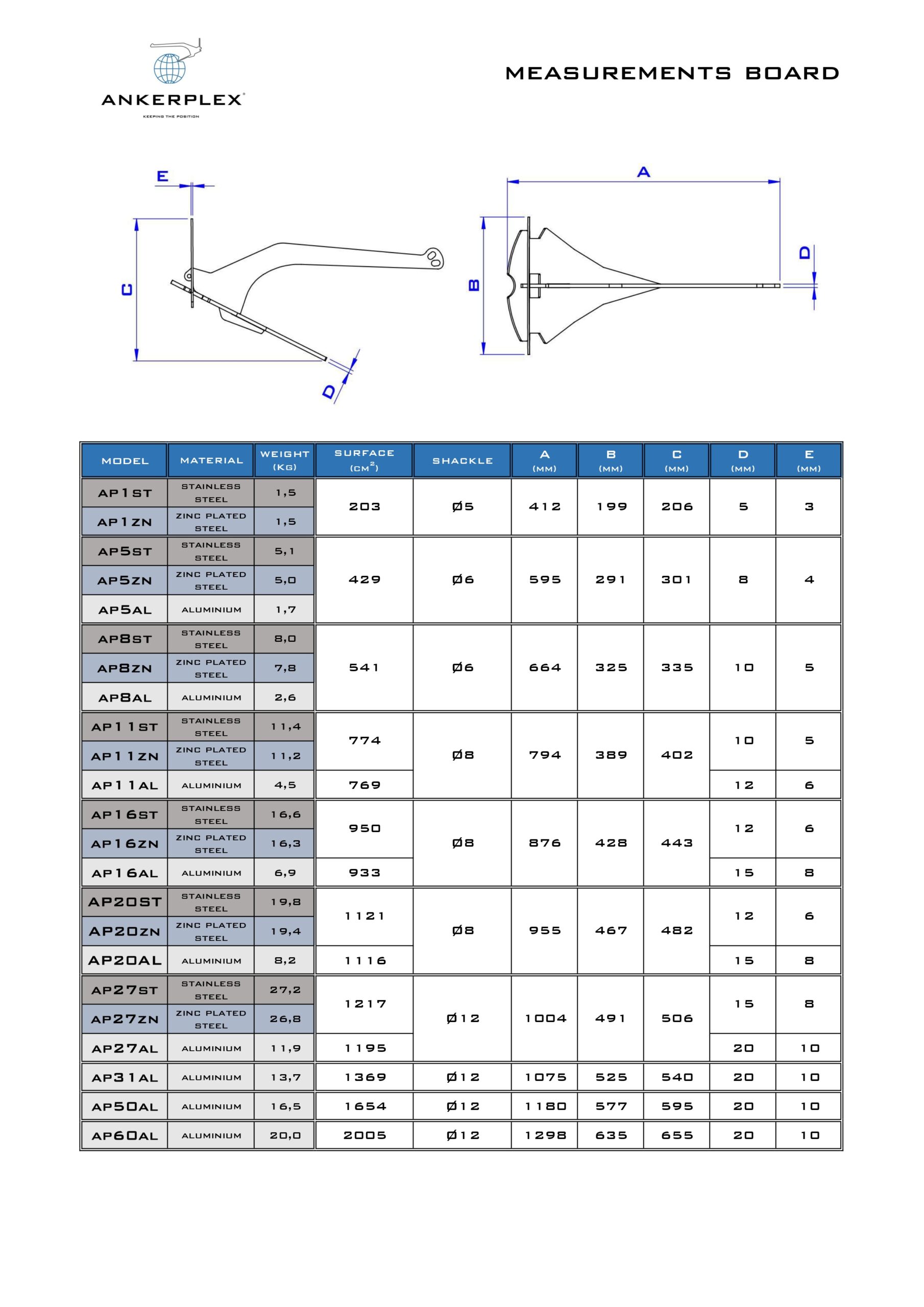

• Suitable for boats up to 15 meters in good weather and 13–14 meters in general weather.
• Weight: 27.2 kg
• Surface area: 1217 cm²
• Dimensions (L×W×H): 1004 mm × 491 mm × 506 mm
• Material thickness: 15 mm
• Roll bar thickness: 8 mm
• Model: AP27ST
