SKU:
TN 00811272
€ 1.453,37
1-2 weeks delivery time
-
+
The Ankerplex AP27AL weighs 11.9 kg and combines lightweight aluminum construction with strong holding power for larger boats. It consists of three flat aluminum parts connected by a shackle, with a roll bar ensuring correct orientation and fast seabed penetration. The anchor has no moving parts, preventing jams and damage. Its compact flat design allows easy storage, and it assembles quickly without tools, suitable for vessels up to 14 meters in good weather.
- Description
- Ask a Question
-

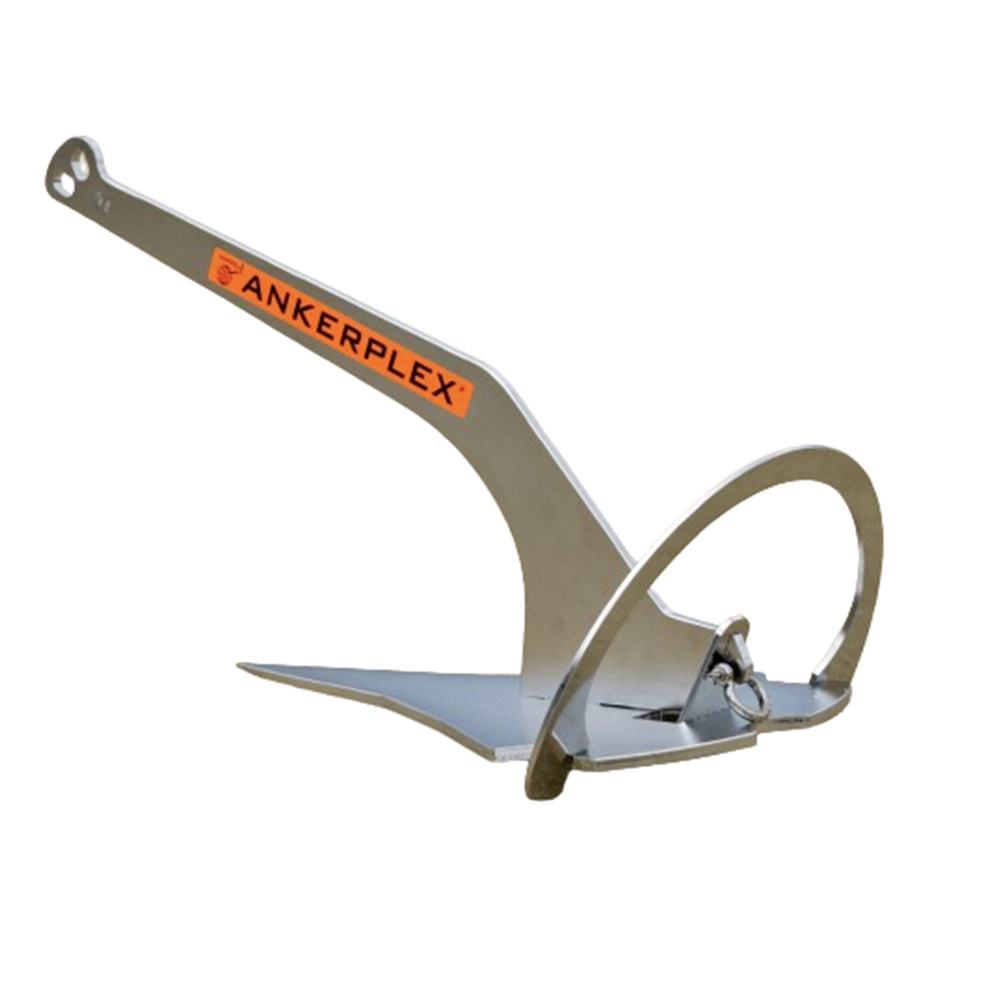

Ankerplex AP27AL - Anchor 11.9 kg Aluminum
The Ankerplex AP27AL combines lightweight aluminum construction with powerful holding capacity, making it an excellent choice for larger boats where weight is a concern. It features a smart modular design for easy transport and quick assembly without tools.
- High Holding Power anchor that triples the grip compared to traditional anchors of the same weight.
- Constructed from durable aluminum alloys (AL5083, AL5754) for strength, lightness, and corrosion resistance.

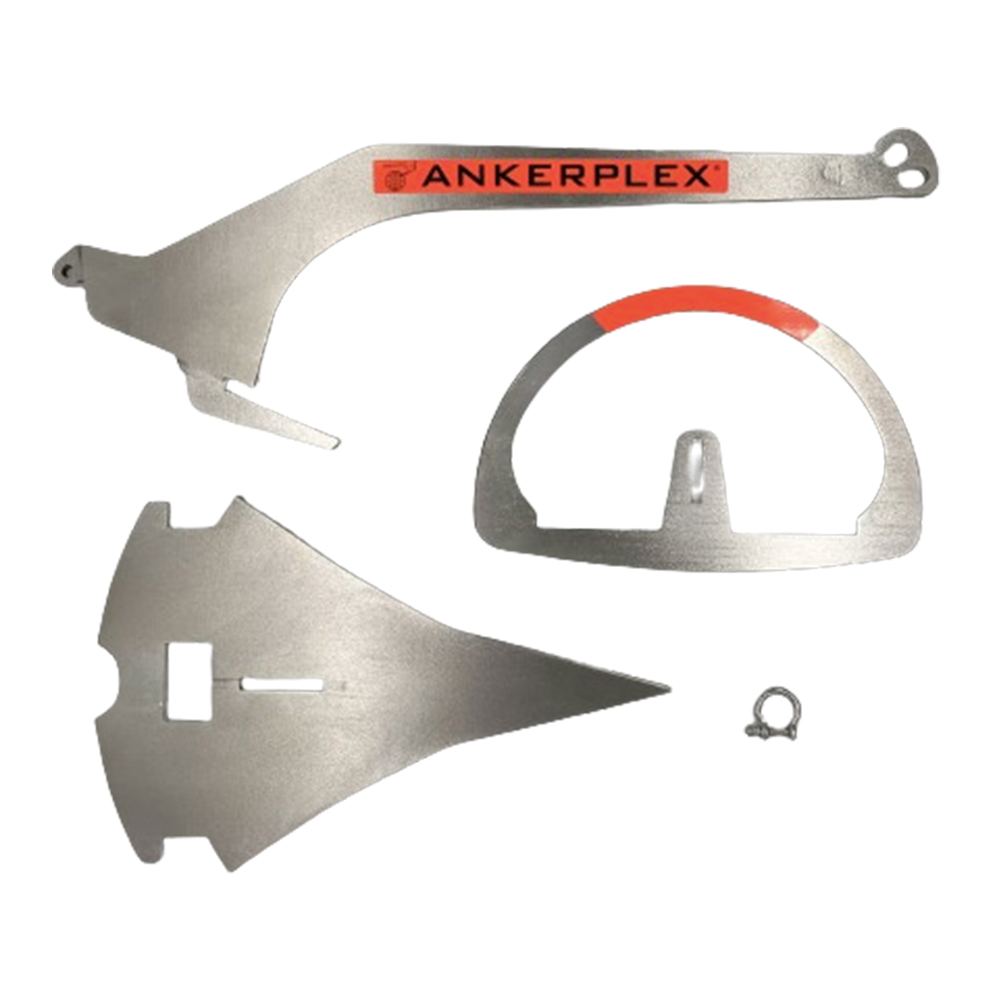

- Consists of three flat metal parts linked by a simple shackle into a strong, self-supporting structure.
- Roll bar guarantees proper orientation, ensuring fast and secure seabed penetration.
- No moving parts, preventing jams or damage during handling and use.
- Compact flat design allows easy storage; parts can fit under a mattress and assemble quickly without tools.
- Assembly instructions:
- Place shaft, rolling paper, roll bar, and shackle next to each other.
- Insert the shaft’s hook into the rolling paper’s central rectangular hole and slide together.
- Insert the roll bar into the rolling paper’s recesses.
- Fold the roll bar’s top over the shaft locking hole.
- Secure the anchor by mounting the shackle pin through the hole in the shaft’s rear protrusion.

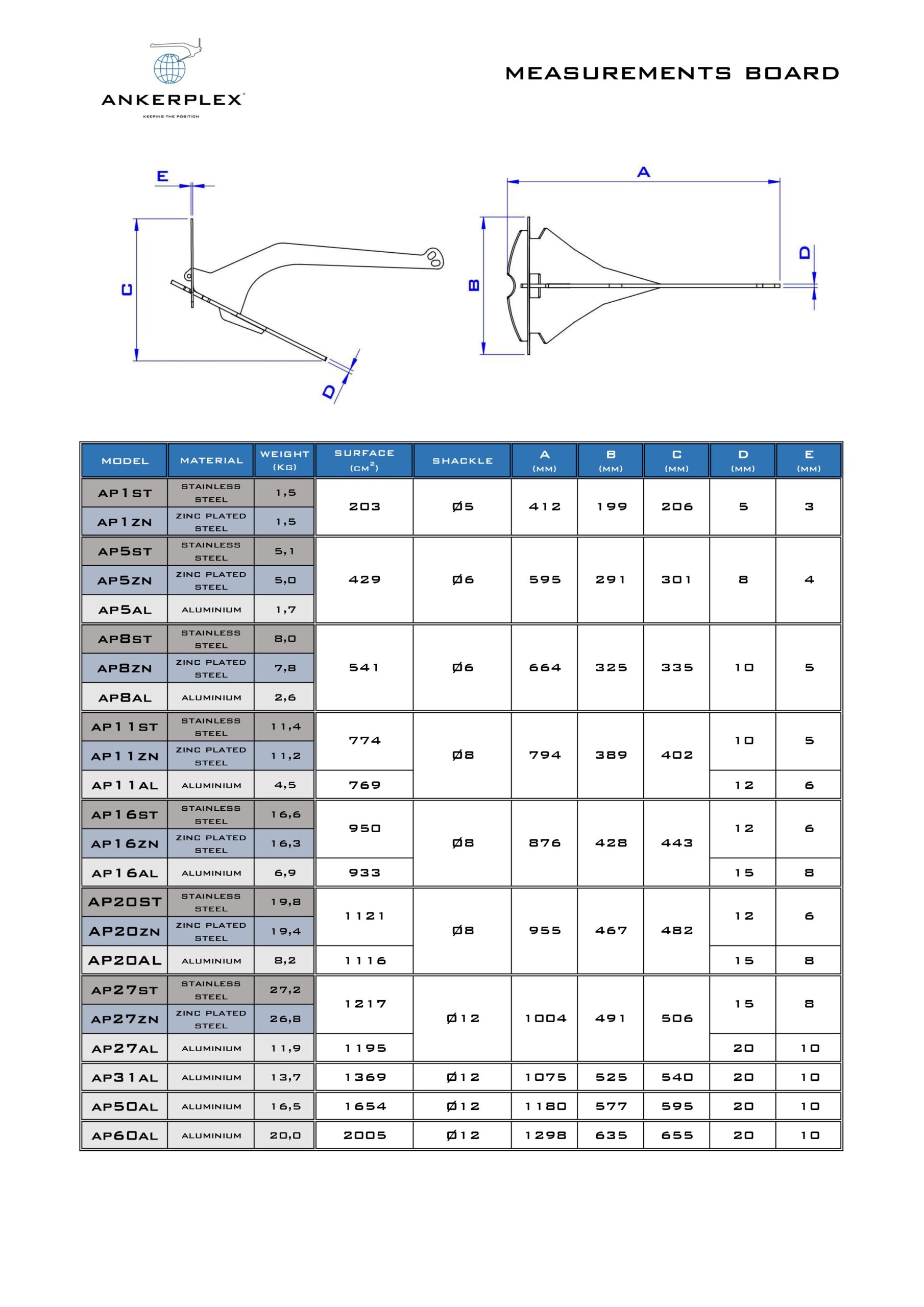

- Specifications:
- Order number: 00811272
- Supplier code: AP27AL
- Material: Aluminum (AL5083, AL5754)
- Weight: 11.9 kg
- Surface area: 1195 cm²
- Length: 1004 mm
- Width: 491 mm
- Height: 506 mm
- Material thickness: 20 mm
- Roll bar thickness: 10 mm
- Suitable for vessels up to 14 meters in good weather, 12-13 meters generally
-
