SKU:
TN 00811200
€ 1.127,56
1-2 weeks delivery time
-
+
The Ankerplex AP20ST is a stainless steel anchor weighing 19.8 kg, designed for vessels up to 13 meters in good weather. It offers three times the holding power of traditional anchors of the same weight and features a quick, tool-free assembly from three flat metal parts secured by a shackle. Its roll bar ensures proper seabed penetration, and its compact disassembled design makes storage easy.
- Description
- Ask a Question
-

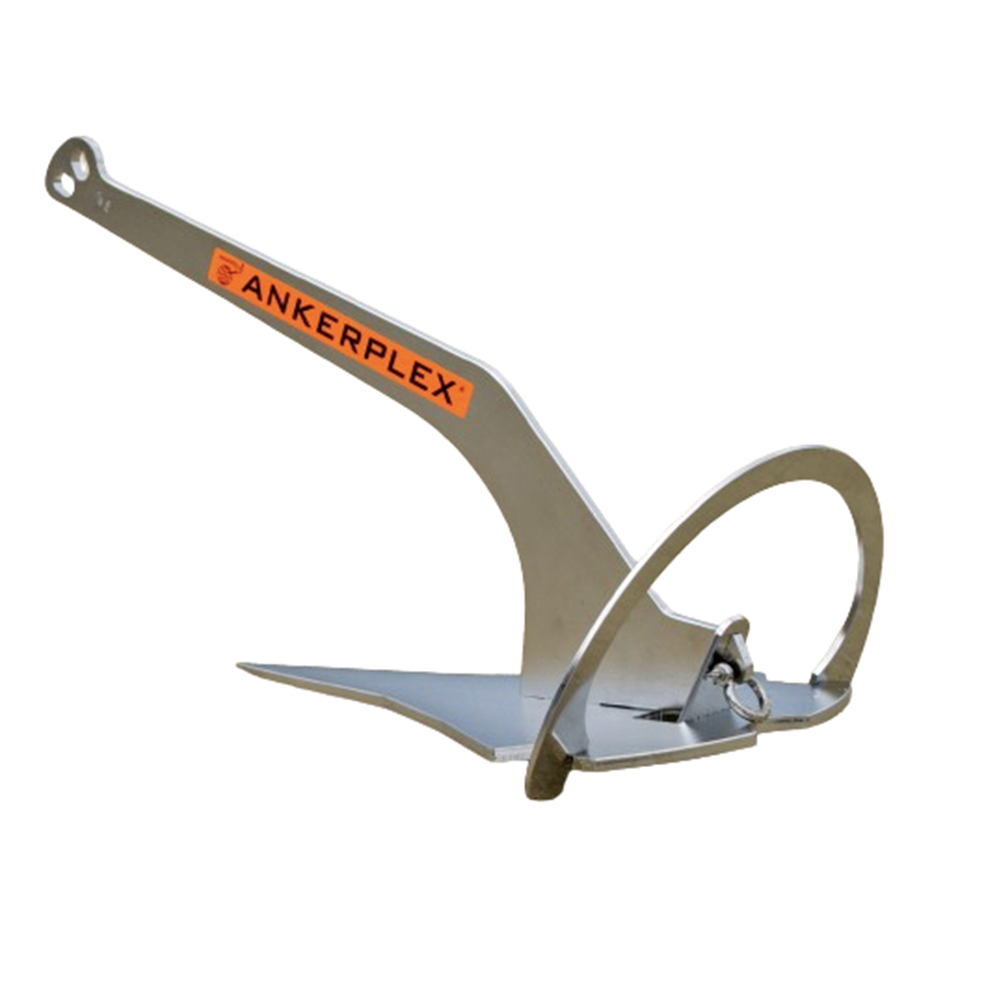

Ankerplex AP20ST - Anchor 19.8 kg Stainless Steel
The Ankerplex AP20ST combines compact storage with superior holding power, tripling the effectiveness of traditional anchors weighing the same. Built from high-quality stainless steel, it withstands harsh marine environments while providing easy assembly and transport. Its design ensures quick, reliable embedding in various seabeds.
- Order number: 00811200
- Supplier code: AP20ST
- Suitable for vessels up to 13 meters in good weather
- Suitable for vessels up to 12 meters in general weather conditions
- Material: AISI 304 Stainless Steel
- Weight: 19.8 kg

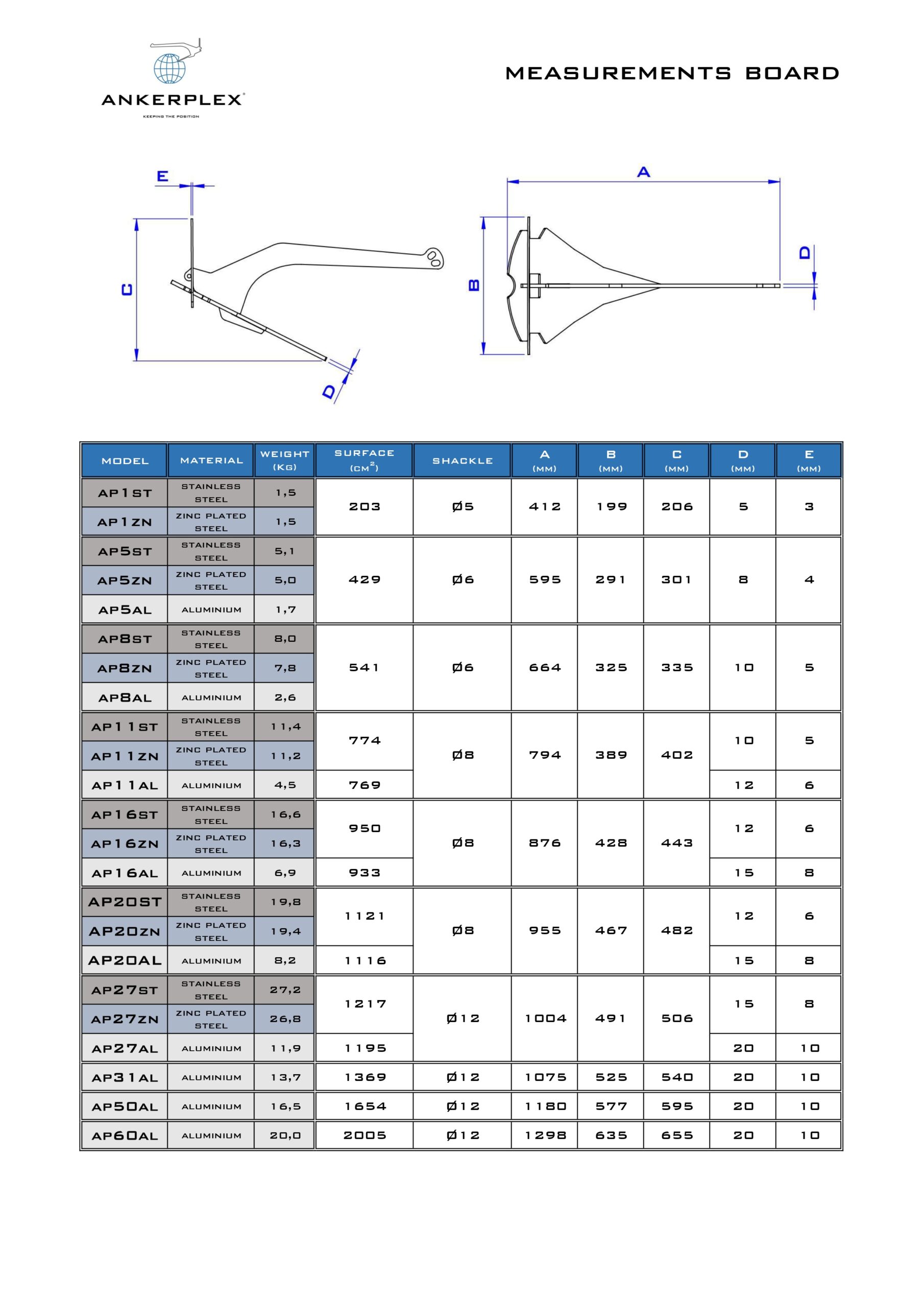

- Surface area: 1121 cm²
- Length: 955 mm
- Width: 467 mm
- Height: 482 mm
- Material thickness: 12 mm
- Roll bar thickness: 6 mm
- Model: AP20ST

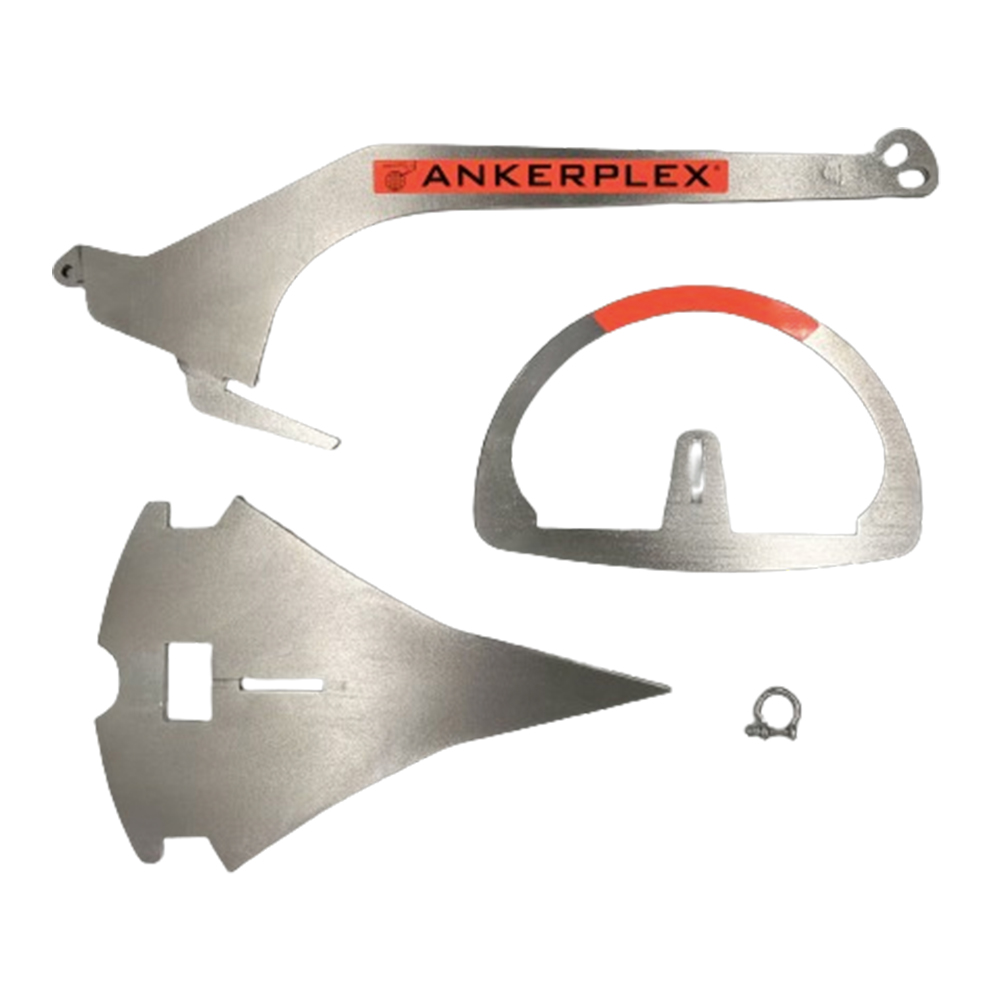

Constructed from three flat, precisely cut metal components, the ANKERPLEX® anchor assembles quickly with no tools using a standard shackle. Its roll bar guarantees proper positioning for swift seabed penetration. The robust flat plates prevent jamming and damage, making handling and storage simple. The disassembled parts are compact enough to store easily, ideal as a spare anchor.
Assembly instructions:
- Place the four parts side by side: shaft (stick), rolling paper (tail), roll bar, and shackle.
- Slide the shaft’s hook-shaped protrusion into the rolling paper’s central rectangular hole.
- Insert the roll bar into the rolling paper’s recesses.
- Fold the roll bar top towards the shaft so its recess fits over the shaft’s locking hole.
- Secure the assembly by inserting the shackle pin through the shaft’s rear hole, ensuring a firm and locked configuration.
-
