Ankerplex AP16ST - Anchor 16.6 kg Stainless Steel
The Ankerplex AP16ST offers a compact and innovative solution for anchoring with exceptional holding power. Designed to triple the holding force compared to traditional anchors of the same weight, it ensures reliable performance even in demanding conditions. Its stainless steel construction provides durability and corrosion resistance ideal for salty environments.
- Order number: 00811160
- Supplier code: AP16ST
- Suitable for vessels up to 12 meters in good weather
- Suitable for vessels up to 11 meters in general weather conditions
- Material: AISI 304 Stainless Steel
- Weight: 16.6 kg

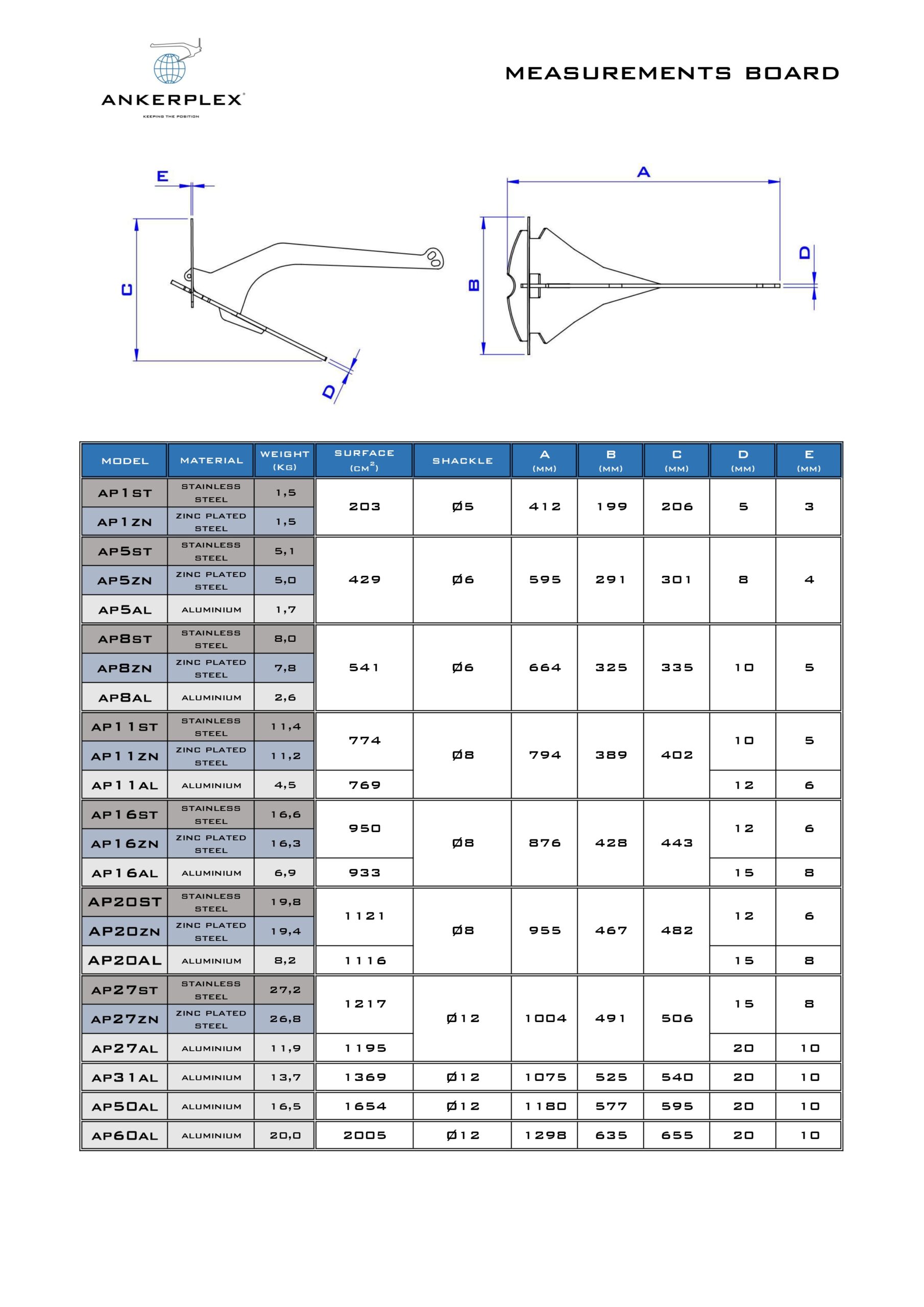

- Surface area: 950 cm²
- Length: 876 mm
- Width: 428 mm
- Height: 443 mm
- Material thickness: 12 mm
- Roll bar thickness: 6 mm
- Model: AP16ST

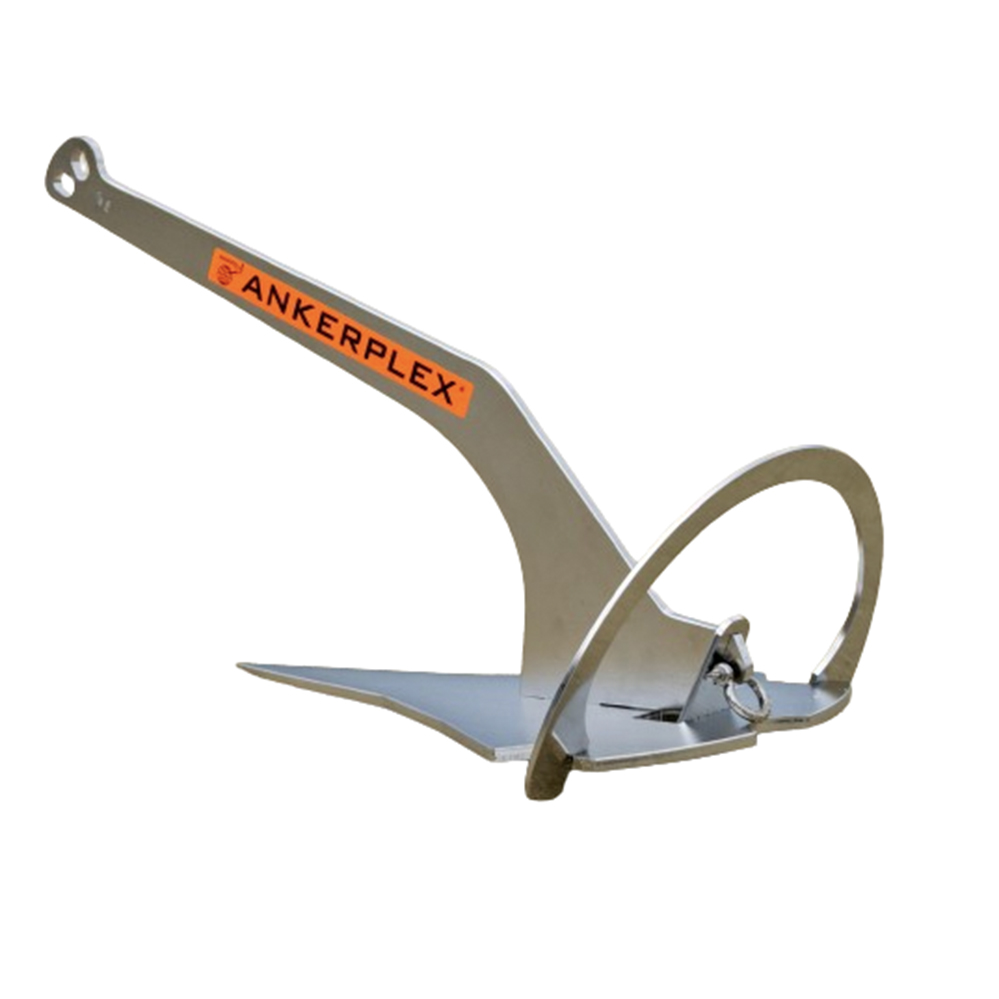

ANKERPLEX® anchors are made of three flat metal parts that assemble quickly without tools into a stable, three-dimensional unit using a normal shackle. The roll bar ensures the anchor always positions itself for rapid burial. The simple design means no moving parts, eliminating jamming or damage during handling. When disassembled, the parts store compactly, even fitting under a mattress, making it perfect as a space-saving spare anchor.
Assembly instructions:

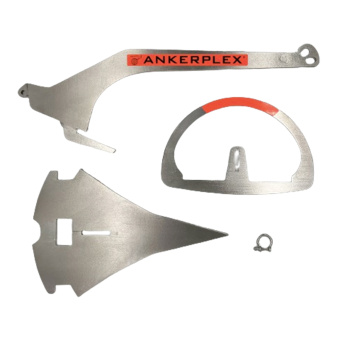

- Arrange the four parts: shaft (stick), rolling paper (tail), roll bar, and shackle.
- Insert the hook-shaped protrusion of the shaft into the rectangular hole of the rolling paper and slide them together.
- Insert the roll bar into the rolling paper recesses.
- Fold the roll bar top towards the shaft so its recess aligns over the shaft’s locking hole.
- Secure the assembly by inserting the shackle pin through the hole on the shaft’s protrusion, ensuring a stable and locked anchor.
-
