The Ankerplex AP16AL is a 6.9 kg aluminum anchor designed for boats up to 11 meters. It provides three times the holding power of traditional anchors and is made from three flat metal parts assembled quickly with a shackle. The roll bar ensures effective seabed penetration, and the flat components allow for compact storage, ideal as a spare anchor.
- Description
- Ask a Question
-

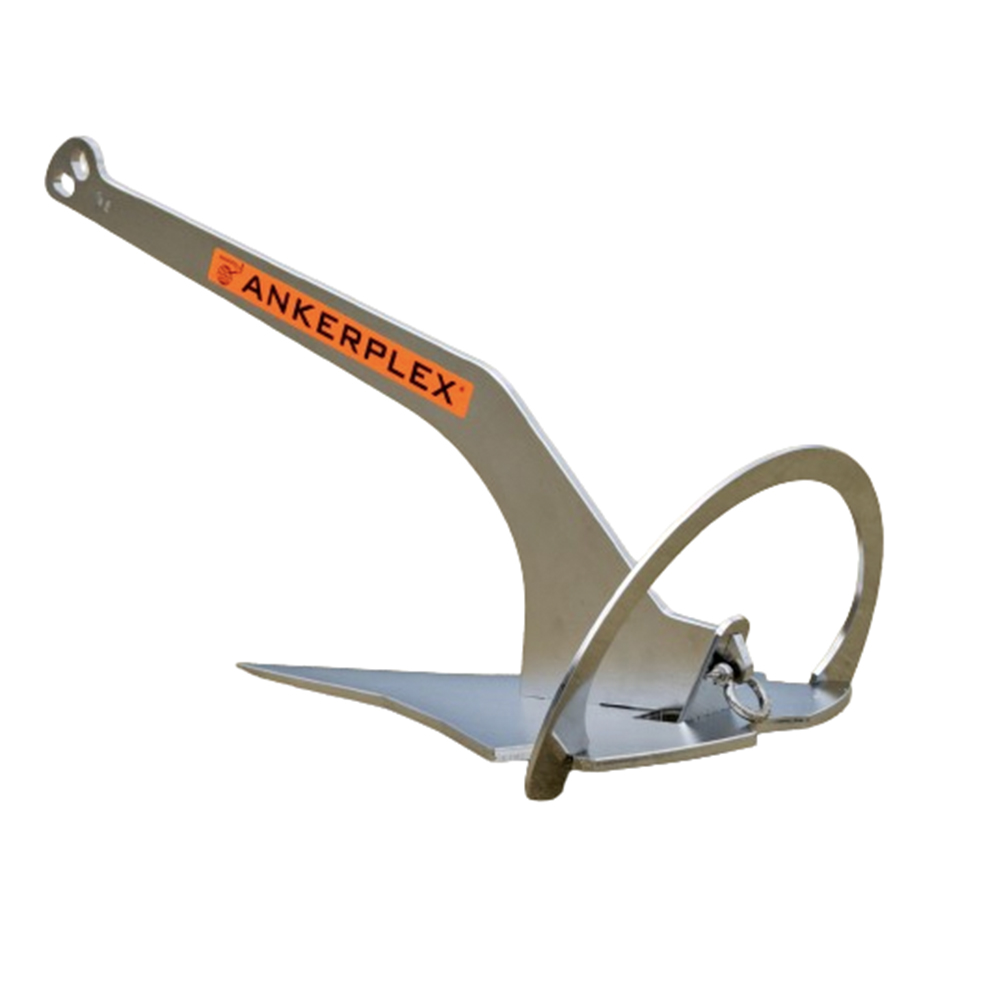

Ankerplex AP16AL - Anchor 6.9 kg Aluminum
The Ankerplex AP16AL is a powerful, lightweight aluminum anchor designed for larger boats. It offers triple the holding force of conventional anchors of similar weight, combined with an innovative design for easy assembly and compact storage.
- High Holding Power (HHP) anchor made from durable aluminum
- Constructed of three flat metal parts that quickly connect with a simple shackle for a strong, self-supporting structure
- Roll bar guarantees proper orientation for quick and effective seabed penetration
- Simple design with no moving parts prevents jamming or damage during handling
- Flat components allow compact storage, ideal as a spare anchor taking minimal space

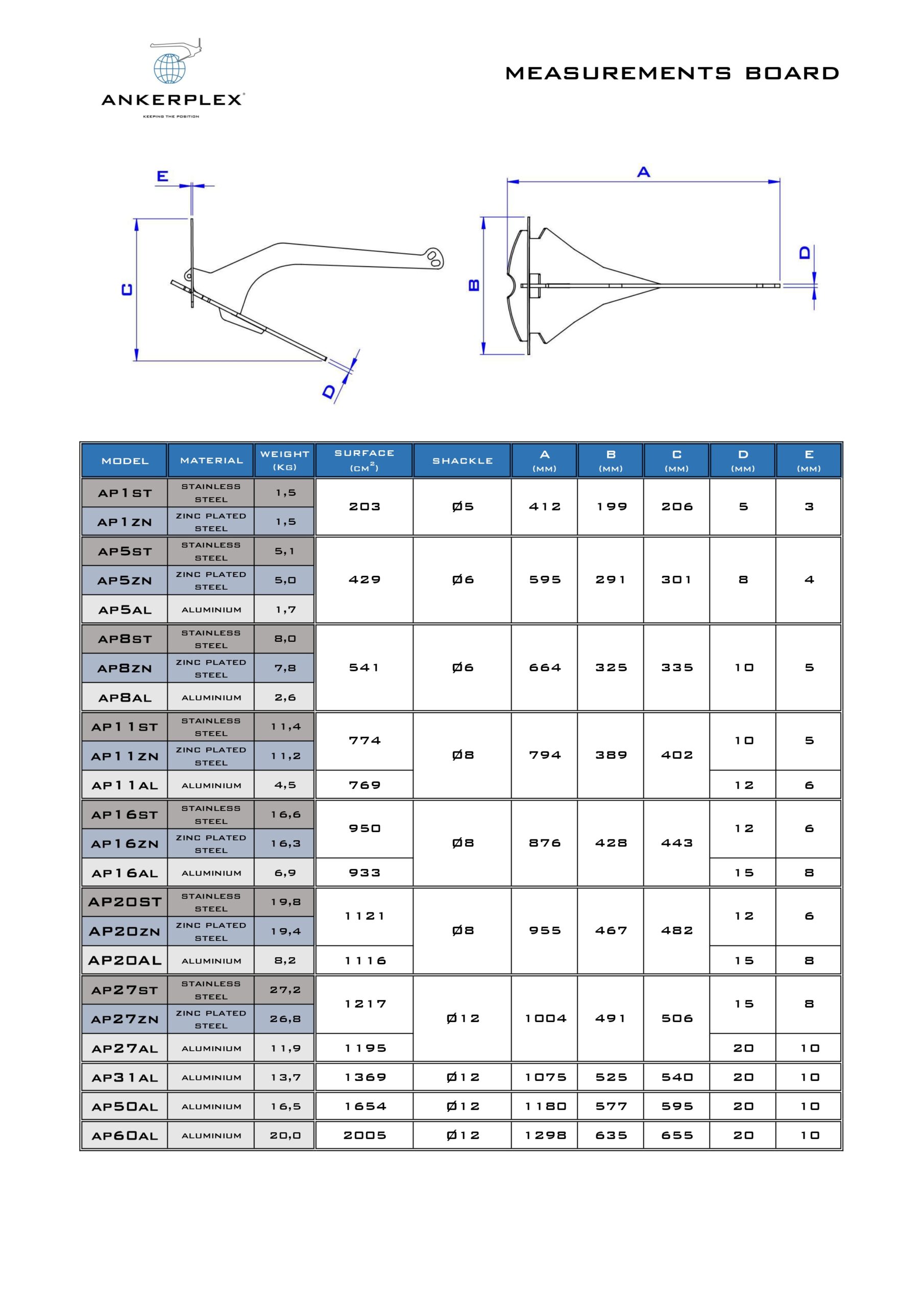

- Dimensions: Length 876 mm, Width 428 mm, Height 443 mm
- Weight: 6.9 kg; Surface area: 933 cm²; Material thickness: 15 mm; Roll bar thickness: 8 mm
- Suitable for ships up to 11 meters in good weather and 10 meters in general weather conditions
- Order number: 00811162; Supplier code: AP16AL
Assembly Instructions:

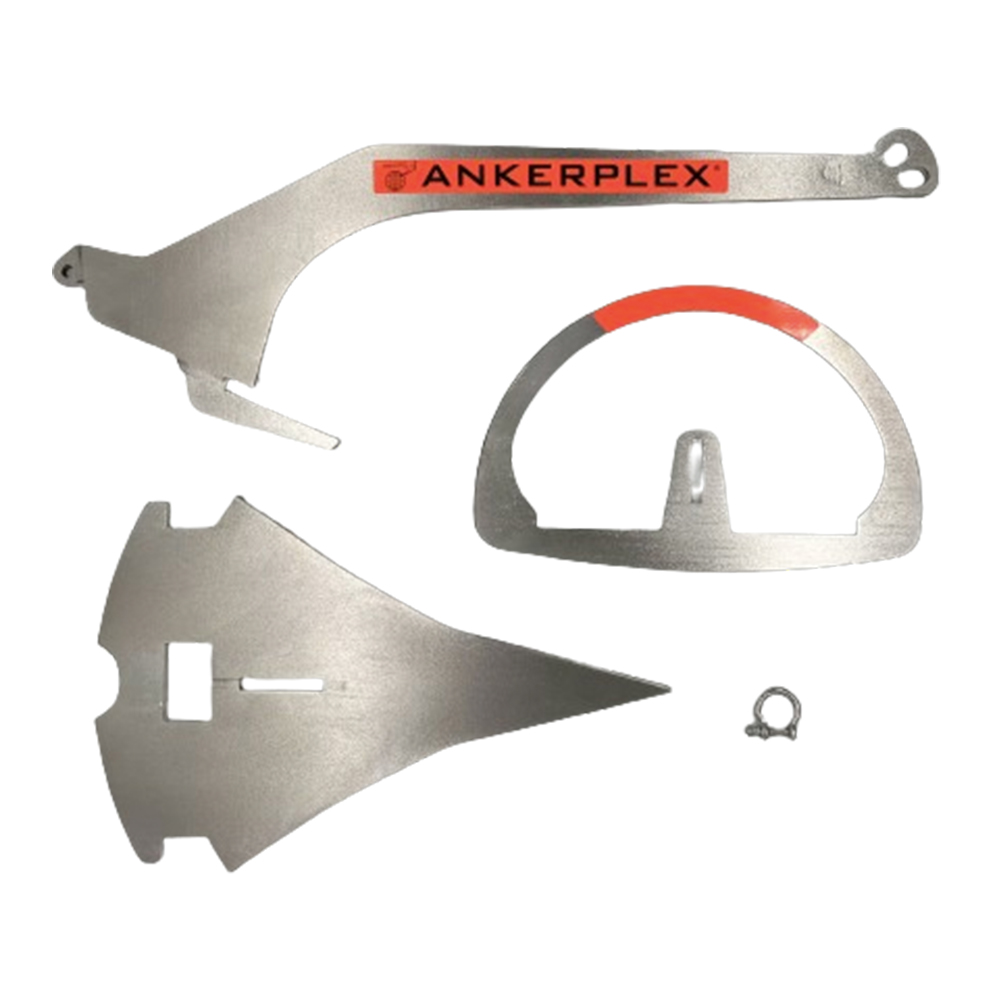

- Lay out the four parts (shaft, rolling paper, roll bar, shackle) in a row.
- Connect the shaft’s hook-shaped end into the rolling paper’s central hole and slide the parts together.
- Insert the roll bar into the recesses on the rolling paper.
- Fold the roll bar top towards the shaft to align its recess with the shaft's locking hole.
- Secure the anchor by inserting the shackle pin through the shaft's protrusion hole, locking the assembly firmly.
-
