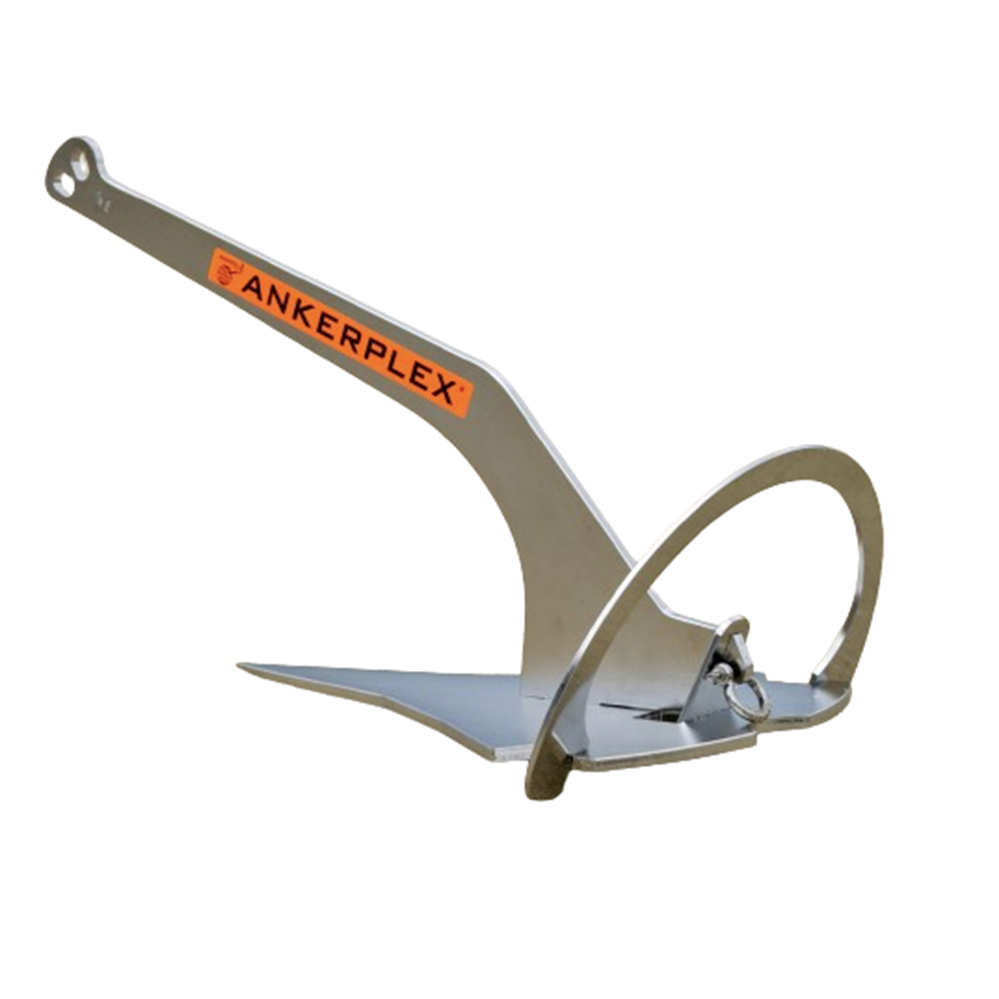

The Ankerplex AP11ST is an 11.4 kg stainless steel anchor built for medium-sized boats up to 11 meters. Its three flat parts connect with a shackle to form a sturdy 3D unit, delivering triple the grip of traditional anchors. The roll bar ensures quick and correct placement in various seabed conditions. It has no moving parts, making it durable and easy to handle, with flat plates that allow compact storage and rapid assembly without tools.
- Description
- Ask a Question
-
Ankerplex AP11ST - Anchor 11.4 kg Stainless Steel
The Ankerplex AP11ST delivers exceptional holding power in a compact design, ideal for medium-sized boats. Its modular flat metal parts allow easy storage and fast assembly, providing a reliable and durable anchoring solution for ships up to 11 meters.
- High Holding Power anchor with three times the grip of traditional anchors at the same weight.
- Consists of three high-quality flat stainless steel (AISI 304) parts connected by a standard shackle, forming a sturdy 3D unit.
- Roll bar ensures correct anchor positioning for quick and effective seabed penetration.
- No moving parts, eliminating jamming or damage during use and handling.
- Flat plates make storage and transport easy; parts fit compactly and can be assembled rapidly without tools.
- Precision-cut stainless steel construction ensures durability and excellent corrosion resistance in saltwater.

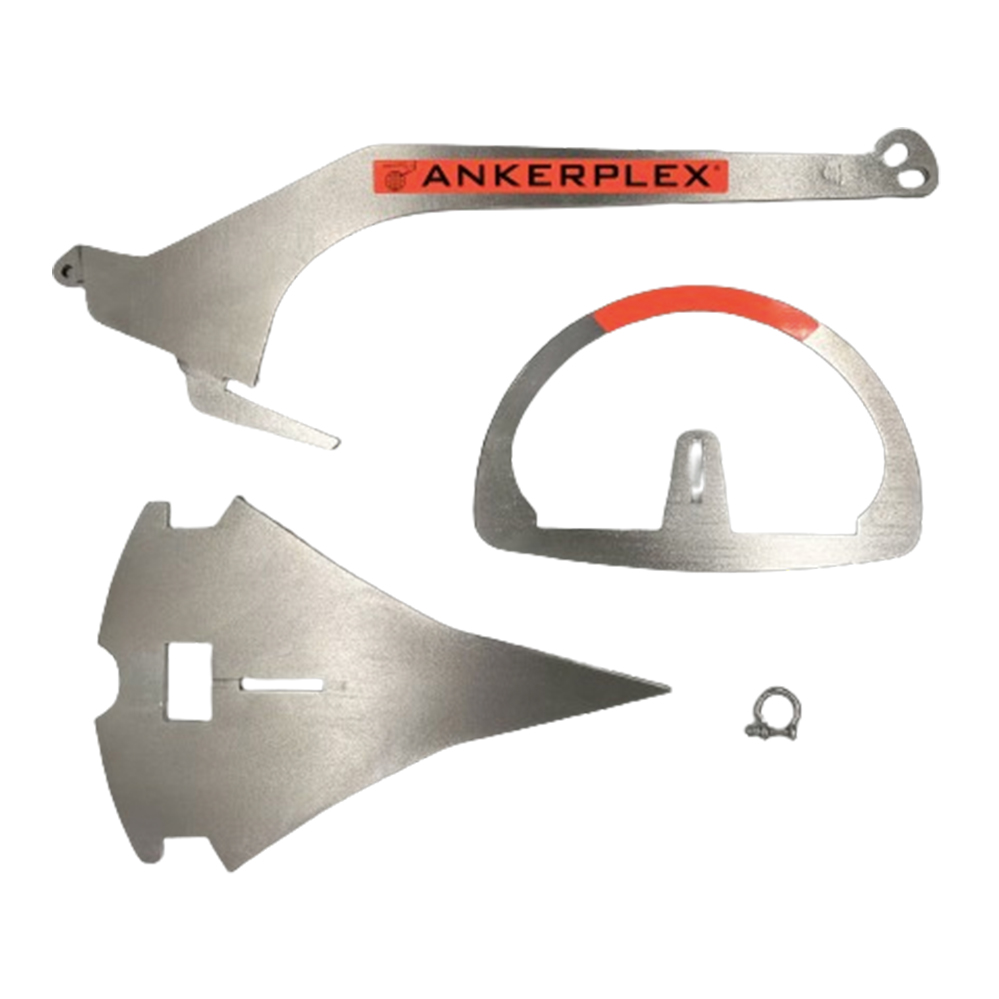

- Assembly process:
- Arrange shaft, rolling paper, roll bar, and shackle.
- Insert the shaft's hook-shaped protrusion into the rolling paper's central rectangular hole and slide them together.
- Insert the roll bar into the recesses of the rolling paper.
- Fold the roll bar's top toward the shaft so its recess aligns with the shaft locking hole.
- Secure the assembly by placing the shackle pin through the hole at the shaft's rear protrusion.

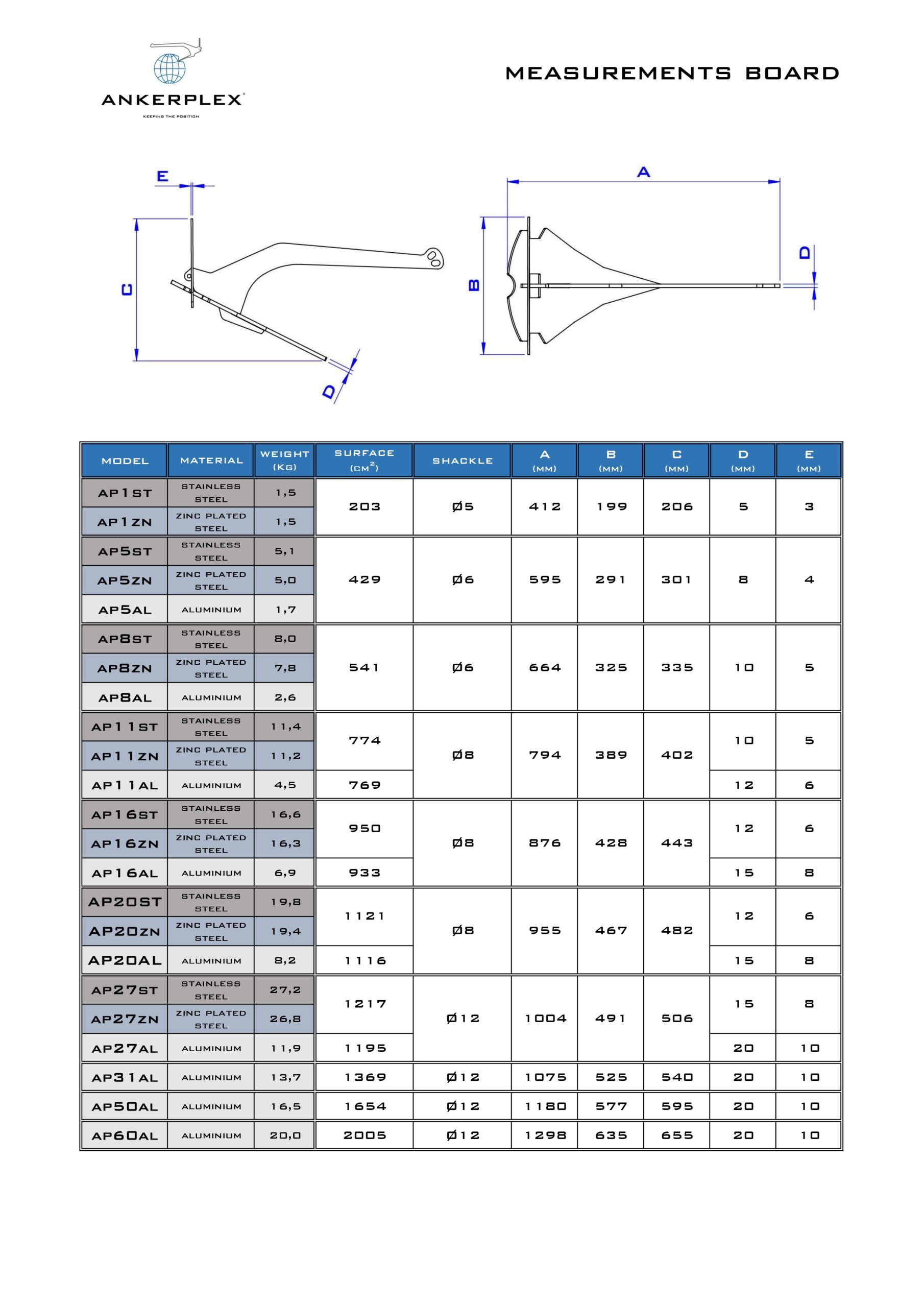

- Specifications:
- Order number: 00811110
- Supplier code: AP11ST
- Material: Stainless steel (AISI 304)
- Weight: 11.4 kg
- Surface area: 774 cm²
- Length: 794 mm
- Width: 389 mm
- Height: 402 mm
- Material thickness: 10 mm
- Roll bar thickness: 5 mm
- Suitable for vessels up to 11 meters in good weather, 9-10 meters generally
-
