SKU:
TN 00811112
€ 564,36
1-2 weeks delivery time
-
+
The Ankerplex AP11AL is a lightweight aluminum anchor weighing 4.5 kg, ideal for boats up to 10 meters. It offers three times the holding power of conventional anchors and features quick assembly from three flat metal parts with a shackle. The roll bar secures proper seabed positioning, and its flat components enable compact storage and portability.
- Description
- Ask a Question
-
Ankerplex AP11AL - Anchor 4.5 kg Aluminum
The Ankerplex AP11AL is a compact and lightweight aluminum anchor designed for smaller boats, providing outstanding holding power through a smart modular design. It combines ease of use with durability and portability.
- High Holding Power (HHP) anchor, tripling the holding force compared to traditional anchors of the same weight.
- Performance comparable to advanced modern anchors.
- Constructed from aluminum for a lighter weight, suitable for boats requiring anchors under 5 kg.
- Made of three flat metal components connected by a simple shackle to form a strong, stable 3D structure.
- Roll bar guarantees proper positioning for efficient seabed penetration and holding.
- No moving parts, preventing jamming or damage when in use or during transport.
- Flat plate parts enable compact storage, even fitting under a mattress.
- Simple, tool-free assembly with an intuitive design that avoids mistakes.
- Manufacturer’s guidance based on practical experience and tests; users must consider local rules and regulations.
Assembly Instructions:

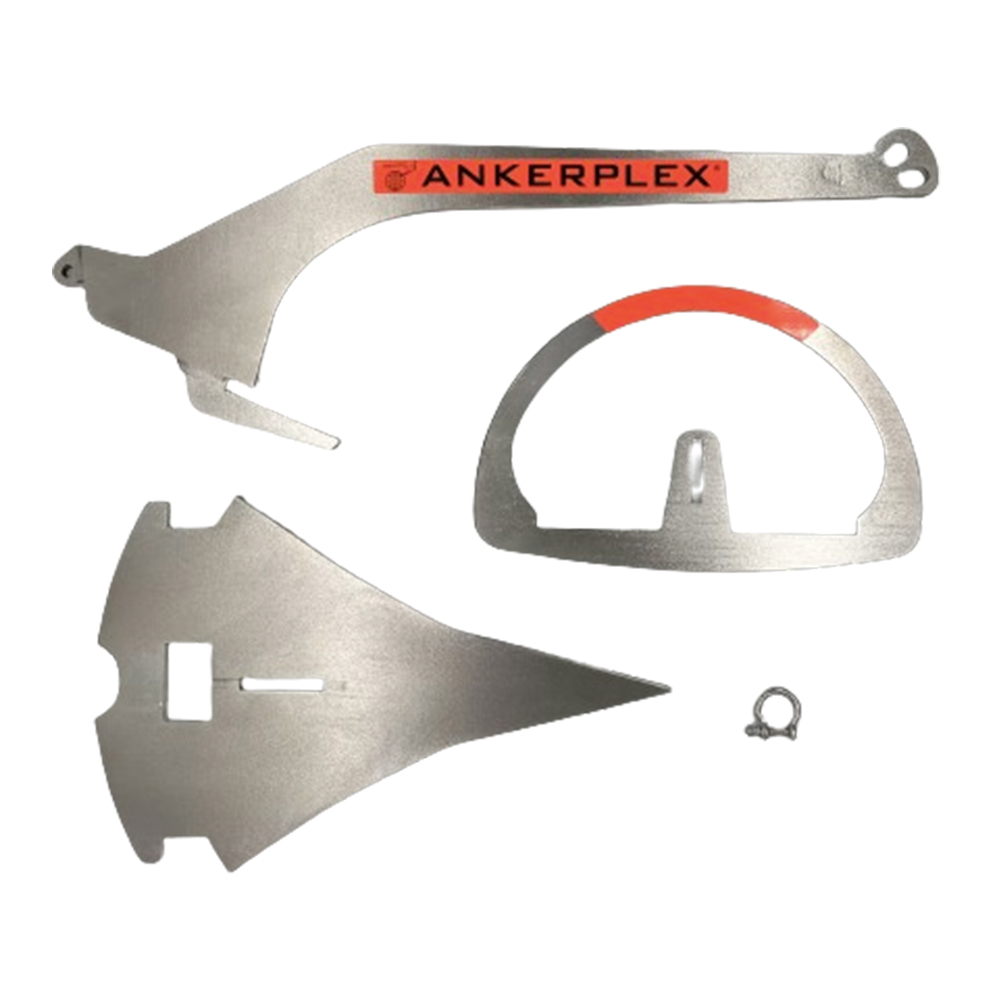

- Arrange the four parts: shaft (stick), rolling paper (tail), roll bar, and shackle.
- Slide the hook-shaped shaft protrusion into the rolling paper's central hole.
- Insert the roll bar into the recesses on the rolling paper.
- Fold the roll bar top towards the shaft so its recess aligns with the shaft's locking hole.
- Secure with the shackle pin through the shaft's protrusion hole.
- Order number: 00811112
- Supplier code: AP11AL
- Suitable for boats up to 10 meters in good weather and 7.5–9 meters in general conditions.
- Weight: 4.5 kg

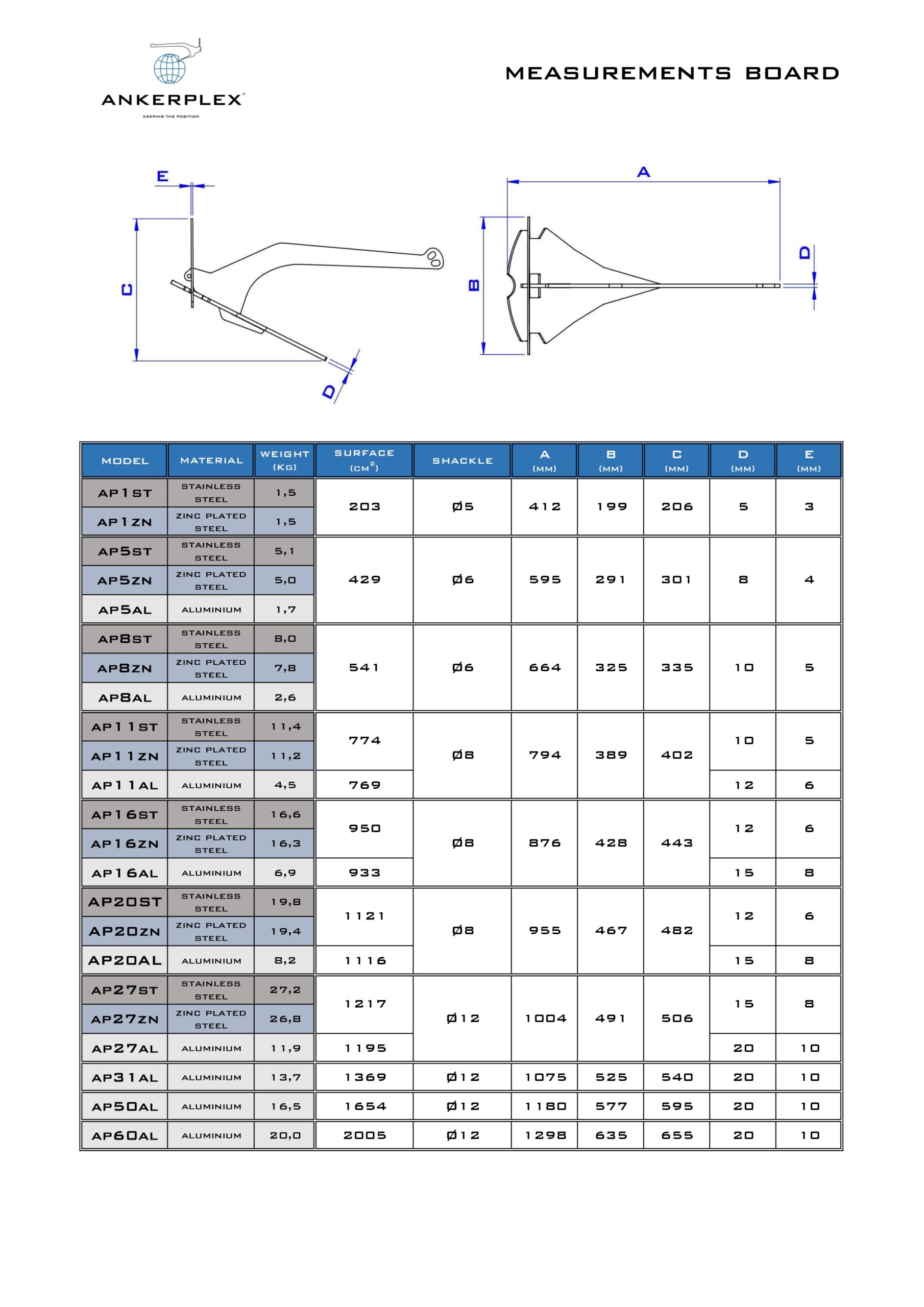

- Surface area: 769 cm²
- Dimensions (L×W×H): 794 mm × 389 mm × 402 mm
- Material thickness: 12 mm
- Roll bar thickness: 6 mm
- Model: AP11AL
-
