SKU:
ALP 72812
€ 778,92
1-2 weeks delivery time
-
+
The "Corse" vertical windlass with a 6mm size line is suitable for boats up to 33 feet (10 meters). It is equipped with a 500W motor and runs on a 12V power supply. It supports a maximum linear load of 650 kg and a lift working load of 90 kg. The windlass moves the line at 23 meters per minute and weighs 9 kg. It comes with a control box and complies with ISO 4565 and DIN 766 standards. This model does not include a drum and features detailed dimensions for fitting.
- Description
- Ask a Question
-

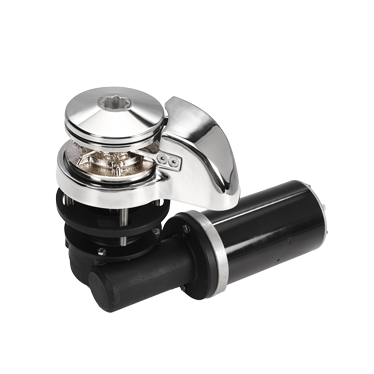

Windlass Vertical, Model 'Corse', 6mm, 12V, 500W, Without Drum
The "Corse" vertical windlass with a 6mm size line is suitable for boats up to 33 feet (10 meters). It is equipped with a 500W motor and runs on a 12V power supply. It supports a maximum linear load of 650 kg and a lift working load of 90 kg. The windlass moves the line at 23 meters per minute and weighs 9 kg. It comes with a control box and complies with ISO 4565 and DIN 766 standards. This model does not include a drum and features detailed dimensions for fitting.
- Article Number: 72812
- Motor Power: 500W
- Power Supply: 12V
- Max Linear Load: 650kg
- Lift Working Load: 90kg
- Amps at Work Load: 60A
- Line Speed: 23m/min
- Weight: 9kg
- Control Box: Included
- Line Size: 6mm
- Conforms to: ISO 4565 / DIN 766
- Drum: Without
- Dimensions:
- D: 18/35mm
- E: 111mm
- F: 221mm
- G: 75.5mm
- H: 43mm
- I: 82mm
- J: 175mm
- L: 122mm
-
