€ 3.691,37
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
Type:
- VWC1000
- VWC1500
- VWC2500
- VWC3500
Voltage:
- 12V
- 24V
- HYD
Item:
- Without drum
- With drum

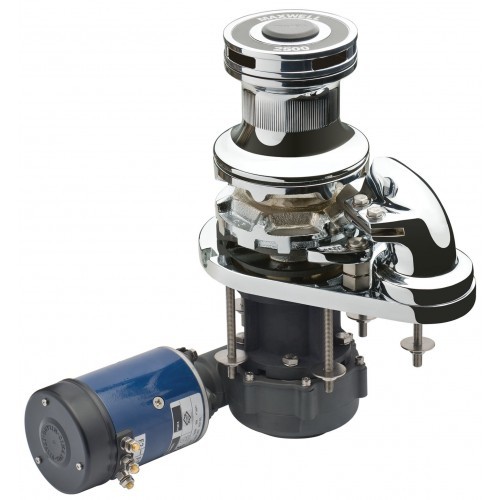

The Maxwell VWC Series Vertical Anchor Windlass provides durable and efficient anchor handling for vessels of various sizes. Designed for cable/chain setups, these windlasses feature stainless steel construction, a conical clutch system, and reversible motors for heavy-duty operations. Available in multiple models (1000, 1500, 2500, and 3500) with options for 12V, 24V, and hydraulic systems.
- Description
- Ask a Question
-
The Maxwell VWC 1000/1500/2500/3500 Vertical Anchor Windlass is an advanced solution for traditional anchor handling. Designed for seamless operation with cable and chain combinations, this vertical windlass series delivers exceptional performance, robust construction, and versatile installation options.
Key Features:
- Versatile Models: Available in models 1000, 1500, 2500, and 3500 to suit a range of vessel sizes.
- Material: Durable stainless steel housing for corrosion resistance and longevity.
- Power Options: Compatible with 12V, 24V, and hydraulic power systems.
- Performance: Tractive effort ranges from 700 kg to 1590 kg, with static holds up to 2200 kg.
- Clutch System: Features a conical clutch for smooth and secure engagement.
- Heavy-Duty Motor: Reversible electric motor ensures reliable performance during demanding operations.
Specifications:
Model Tractive Effort Static Hold Chain Compatibility Lifting Speed Power Supply Motor Power Net Weight Hydraulic Flow Hydraulic Pressure 1000 700 kg (1540 lbs) 1500 kg (3300 lbs) 6-10 mm 18 m/min 12/24V, Hydraulic 1000 W 24 kg 20 L/min 100 bar 1500 850 kg (1870 lbs) 1500 kg (3300 lbs) 6-10 mm 18 m/min 12/24V, Hydraulic 1200 W 24 kg 20 L/min 138 bar 2500 1135 kg (2500 lbs) 2200 kg (4840 lbs) 9-11 mm 15 m/min 12/24V, Hydraulic 1200 W 38 kg 36 L/min 138 bar 3500 1590 kg (3500 lbs) 2200 kg (4840 lbs) 10-13 mm 15 m/min 12/24V, Hydraulic 1200 W 48 kg 42 L/min 138 bar
Applications:
- Designed for traditional anchor handling with cable/chain setups.
- Perfect for medium to large vessels requiring reliable anchor management.
Additional Information:
- Models available with or without a drum.
- Compact vertical design saves deck space while ensuring efficient performance.
Warning: Always use chain stoppers or securing devices to remove the load from the windlass after anchoring.
Contact the Yacht Supply24 team for assistance or visit our feedback form.
Vetus Catalog Parts:
P102717, P102718, P102721, P102760, P102761, P102762, P102719, P102720, P102722
Documents
User's manual - Maxwell VWC 2500 Size: 3 MbUser's manual - Maxwell VWC 1000 Size: 2,5 MbUser's manual - Maxwell VWC 1500 Size: 2,5 Mb -
