€ 4.635,89
1-2 weeks delivery time
-
+

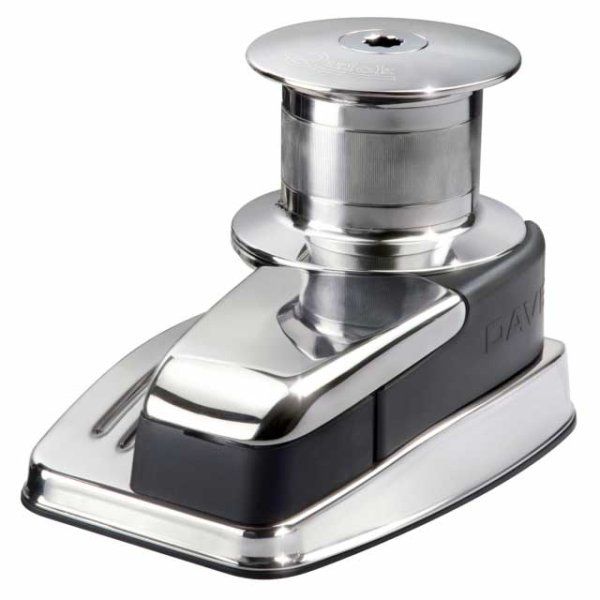

The Quick Windlass Dave Series DV5, with 24V voltage and 2300W power, is a heavy-duty windlass for larger boats, ranging from 16 to 20 meters. It features a single gypsy for rope and chain, an integrated chain counter, and a manual Free-Fall system. The windlass also includes a safety mechanical band brake, inspection cover, and a watertight motor (IP67 for 1700W, IP66 for 2000/2300W). With a maximum pulling force of 2400 kg and a maximum workload of 850 kg, it provides exceptional durability and reliability in harsh marine environments.
- Description
- Ask a Question
-
Quick Windlass Dave Series - DV5 - Voltage 24V, Power 2300W, Drum No, Chain Pipe Left
The Quick Windlass Dave Series DV5 is a heavy-duty vertical windlass that is engineered for larger boats. With its stainless steel AISI 316 base and anodized aluminium construction, it is designed for long-lasting durability and performance in marine conditions.
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system for easy operation
- Safety mechanical band brake for secure usage
- Supplied with pressure lever for smooth control
- Inspection cover for easy maintenance
- Motor watertight to IP67 (1700W)
- Motor watertight to IP66 (2000/2300W)
- Anodized aluminium gearbox for enhanced durability
Specifications
- Voltage: 24V
- Power: 2300W
- Suitable for boats from: 16-20 meters
- Chain size: 10/13/14mm
- Max. pulling force: 2400 kg
- Max. workload: 850 kg
- Drum: No
- Chain pipe: Left
-
