€ 3.924,04
1-2 weeks delivery time
-
+
The Quick Windlass Dave Series DV5 offers a high-performance vertical windlass designed for boats between 12 to 16 meters. With a robust stainless steel AISI 316 base and anodized aluminum construction, it features a rope and chain system on a single gypsy and a manual Free-Fall system for easy operation. It includes a safety mechanical brake, a chain counter, and an inspection cover for quick maintenance. The windlass's motor is IP67 rated for watertight protection, ensuring durability and smooth performance.
- Description
- Ask a Question
-

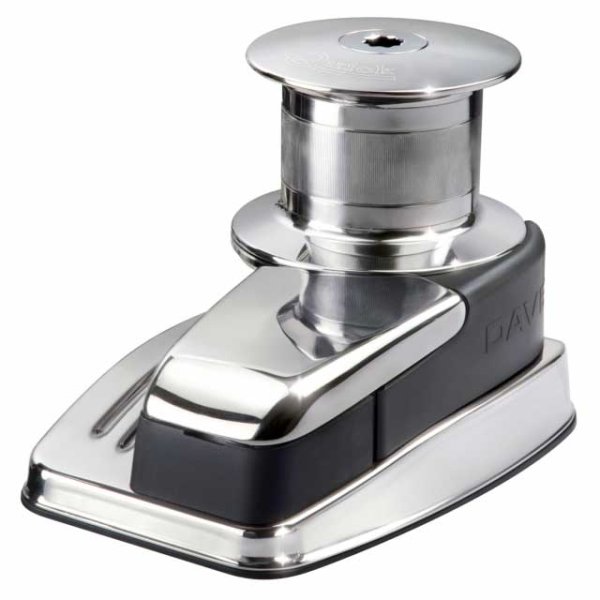

Quick Windlass Dave Series - DV5 - Voltage 24V, Power 1700W, Drum Yes, Chain Pipe Left
The Quick Windlass Dave Series DV5 is a high-performance vertical windlass, constructed with a stainless steel AISI 316 base and anodized aluminium. This model offers robust features that ensure durability and ease of use on the water.
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system for smooth operation
- Safety mechanical band brake for secure functionality
- Supplied with pressure lever for better control
- Inspection cover for easy maintenance and checking
- Motor watertight to IP67 (1700W)
- Motor watertight to IP66 (2000/2300W)
- Anodized aluminium gearbox for enhanced durability
Specifications
- Voltage: 24V
- Power: 1700W
- Suitable for boats from: 12-16 meters
- Chain size: 10/13/14mm
- Max. pulling force: 1200 kg
- Max. workload: 570 kg
- Drum: Yes
- Chain pipe: Left
-
