€ 5.307,83
1-2 weeks delivery time
-
+
The Quick Windlass Dave Series DV5, with 220/380V voltage and 3000W power, is designed for boats ranging from 20 to 24 meters. It features a robust design with a single gypsy, integrated chain counter, and manual Free-Fall system for smooth operation. The system includes a safety mechanical band brake and inspection cover for easy maintenance. The motor is watertight to IP67 for the 1700W version and IP66 for the 2000/2300W versions. With a maximum pulling force of 2800 kg and a maximum workload of 930 kg, it is built for heavy-duty marine use.
- Description
- Ask a Question
-

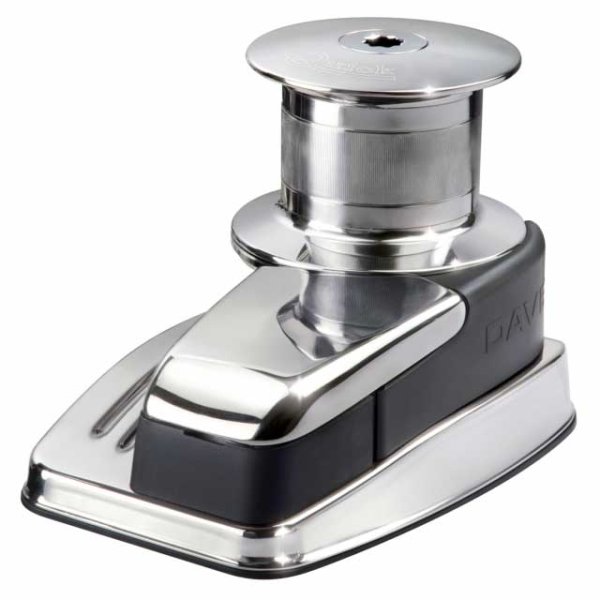

Quick Windlass Dave Series - DV5 - Voltage 220/380V, Power 3000W, Drum Yes, Chain Pipe Left
The Quick Windlass Dave Series DV5 offers a robust vertical windlass solution for larger vessels. With a strong stainless steel AISI 316 base and anodized aluminium body, this windlass is designed to handle heavy-duty operations reliably.
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system for effortless operation
- Safety mechanical band brake for secure usage
- Supplied with pressure lever for easy handling
- Inspection cover for quick access and maintenance
- Motor watertight to IP67 (1700W)
- Motor watertight to IP66 (2000/2300W)
- Anodized aluminium gearbox for superior durability
Specifications
- Voltage: 220/380V
- Power: 3000W
- Suitable for boats from: 20-24 meters
- Chain size: 10/13/14mm
- Max. pulling force: 2800 kg
- Max. workload: 930 kg
- Drum: Yes
- Chain pipe: Left
-
