€ 3.619,12
1-2 weeks delivery time
-
+
The Quick Windlass Dave Series DV5 provides an efficient vertical windlass solution for marine vessels, especially boats from 12 to 16 meters. Constructed with a durable stainless steel AISI 316 base and anodized aluminum, it operates with both rope and chain on a single gypsy. Key features include a manual Free-Fall system, safety mechanical band brake, and an inspection cover for easy maintenance. Its motor is watertight to IP67, ensuring reliable performance in harsh marine environments.
- Description
- Ask a Question
-

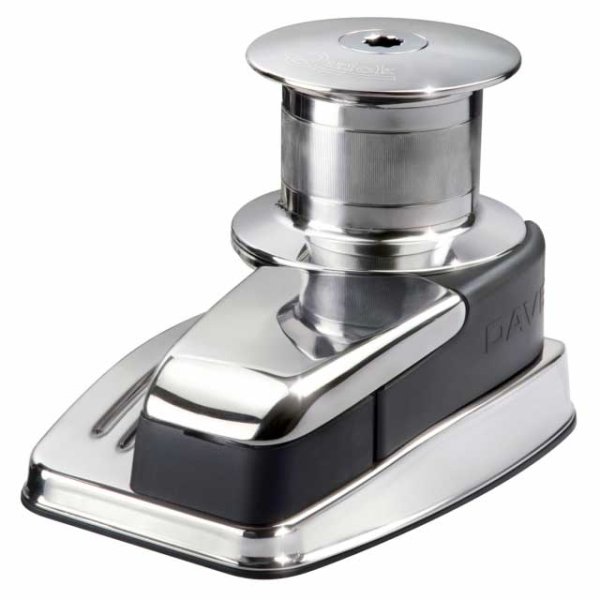

Quick Windlass Dave Series - DV5 - Voltage 12V, Power 1700W, Drum No, Chain Pipe Left
The Quick Windlass Dave Series DV5 offers an efficient vertical windlass solution for marine vessels. With a high-quality stainless steel AISI 316 base and anodized aluminium, it ensures exceptional durability while offering ease of use in challenging environments.
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system for smooth operation
- Safety mechanical band brake for added security
- Supplied with pressure lever for comfortable use
- Inspection cover for easy access and maintenance
- Motor watertight to IP67 (1700W)
- Motor watertight to IP66 (2000/2300W)
- Anodized aluminium gearbox for superior strength
Specifications
- Voltage: 12V
- Power: 1700W
- Suitable for boats from: 12-16 meters
- Chain size: 10/13/14mm
- Max. pulling force: 1100 kg
- Max. workload: 470 kg
- Drum: No
- Chain pipe: Left
-
