€ 4.410,81
1-2 weeks delivery time
-
+
The Quick Windlass Dave Series DV5 Hydraulic with drum and chain pipe left is designed for boats between 12-24 meters. It offers a durable, high-performance solution with a stainless steel AISI 316 base and anodized aluminium construction. The windlass features a manual Free-Fall system, safety mechanical brake, and chain counter, providing efficient and secure operation for both rope and chain handling.
- Description
- Ask a Question
-

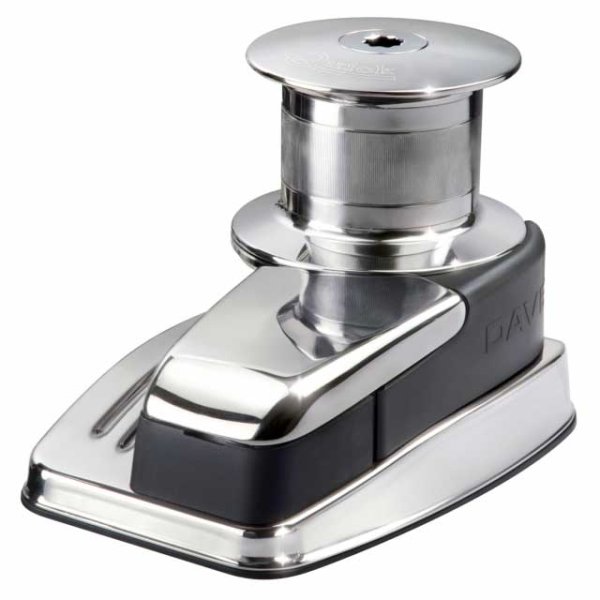

Quick Windlass Dave Series - DV5 - Hydraulic - With Drum, Chain Pipe Left
The Quick Windlass Dave Series DV5 is a reliable and efficient vertical windlass. Crafted with a stainless steel AISI 316 base and anodized aluminum, this model is designed to handle both rope and chain with a single gypsy.
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system for easy operation
- Safety mechanical band brake for secure operation
- Supplied with pressure lever for control
- Inspection cover for easy maintenance
- Anodized aluminium gearbox for durability
Specifications:
- Suitable for boats from 12-24 meters
- Compatible chain sizes: 10/13/14mm
- Max. pulling force: 2900 kg
- Max. workload: 1200 kg
- Drum: Yes
- Chain pipe: Left
-
