€ 2.747,71
1-2 weeks delivery time
-
+
The Quick Dylan DR4 Vertical Windlass is designed for boats ranging from 14 to 18 meters, featuring a durable stainless steel AISI316 base and anodized aluminum construction. It works with both rope and chain on a single gypsy, offering a manual Free-Fall system and emergency manual lift for easy anchoring. The windlass is equipped with a chain counter sensor, a pressure lever, and an inspection lid for easy maintenance, while its IP67 rated motor ensures reliable performance in harsh conditions.
- Description
- Ask a Question
-

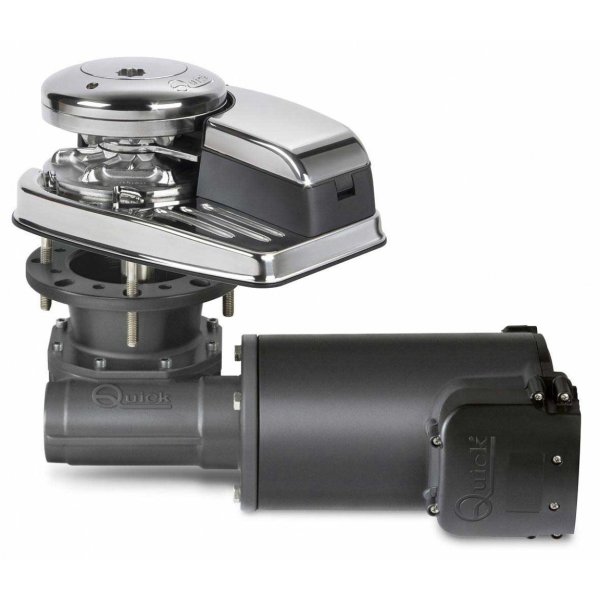

Quick Dylan DR4 Vertical Windlass 12V, 1700W, No Drum
The Quick Dylan DR4 Vertical Windlass is designed for boats ranging from 14 to 18 meters. This windlass is a powerful and durable solution for anchoring, with a sleek combination of stainless steel and anodized aluminum construction. Below are the features of this product:
- Stainless steel AISI316 base for enhanced durability
- Anodized aluminum construction in hard oxide for long-lasting performance
- Operates with both rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter functionality
- Manual Free-Fall system for easy anchoring
- Emergency manual lift system for added safety
- Supplied with pressure lever for smooth operation
- Inspection lid for easy maintenance and checks
- IP67 watertight motor rated between 1500-1700W for reliability in harsh conditions
- Anodized aluminum gearbox for smooth operation
Key specifications include:
- Voltage: 12V
- Power: 1700W
- Recommended for boats between 14-18 meters in length
- Chain size: 10 mm DIN766
- Maximum pulling force: 1150 kg
- Maximum workload: 470 kg
- Drum: No
-
