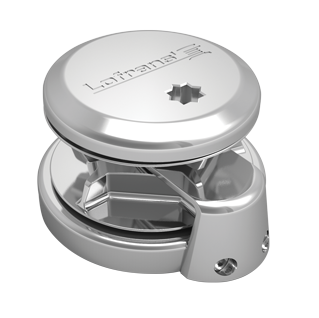

Lofrans SX3 Anchor Windlasses for Boats 15-18 m, Chain 10/12 mm

$ 2.578,84

1-2 weeks delivery time

Diameter, mm:

Voltage:

Electric power, W:

1500
1700

Item:

Without drum
With drum

The Lofrans SX3 Vertical Windlass is designed for boats 15–18 m (50–60 ft) and built from AISI 316L stainless steel for maximum durability. Available in 12V (1500W) and 24V (1700W) versions, with or without drum, it supports 10 mm and 12 mm chains. Featuring an IP66-rated motor, independent gypsy and drum operation, and a pre-installed chain counter magnet, the SX3 ensures powerful, reliable, and efficient anchoring with speeds of up to 40 m/min.

Description
Ask a Question

Lofrans SX3 Vertical Anchor Windlass – For Boats 15–18 m

The Lofrans SX3 is a high-performance vertical windlass designed for yachts and motorboats from 15 to 18 meters (50–60 ft). Built with AISI 316L stainless steel, it combines exceptional durability with a compact round base design, ensuring smooth and efficient anchoring operations.

Main Features

Marine-Grade Stainless Steel: AISI 316L construction for superior resistance to corrosion.
Flexible Installation: Available with drum or in low-profile version.
Independent Gypsy & Drum: Smooth rope and chain handling.
Manual Chain Release: Provides control and safety during anchoring.
Pre-Installed Chain Counter Magnet: Ready for chain counter integration.
Heavy-Duty IP66 Motor: Ensures long-lasting, waterproof performance.
Marine Aluminium Gearbox: Anodised for extra strength and durability.
Optional Chain Pipe: Available separately (code 636311).

Standard Equipment

Dual direction solenoid pack
Handle
Gypsy for chain
Instruction manual (CD)

Technical Specifications – SX3

Model	Voltage	Power	Chain Size	Boat Length	Max. Linear Load	Line Speed	Weight	Drum
SX3 – 10 mm	12V	1500W	10 mm DIN766	15–18 m	1000 kg	20–40 m/min	19–20 kg	Without Drum
SX3 – 10 mm	24V	1700W	10 mm DIN766	15–18 m	1500 kg	19–40 m/min	24–25 kg	With Drum
SX3 – 12 mm	24V	1700W	12 mm DIN766	15–18 m	1500 kg	19–40 m/min	24–25 kg	Without Drum / With Drum

The Lofrans SX3 Vertical Windlass is the ideal choice for mid-size yachts and motorboats, offering reliability, strength, and ease of use. Whether you select the low-profile or drum version, the SX3 delivers consistent anchoring performance with maximum safety at sea.
