Lofrans SX1 Anchor Windlasses for Boats 6-9 m, Chain 6/8 mm

$ 1.289,45

1-2 weeks delivery time

Diameter, mm:

Voltage:

Electric power, W:

The Lofrans SX1 Vertical Windlass is designed for small yachts and motorboats from 6 to 9 meters (20–30 ft). Built from AISI 316L stainless steel with a compact round-base design, it provides reliable anchoring power with 500W or 800W 12V motors. Compatible with 6 mm or 8 mm DIN766 chain, it offers smooth operation, manual chain release, and IP67-rated motor protection in a lightweight 11–14 kg unit.

Description
Ask a Question

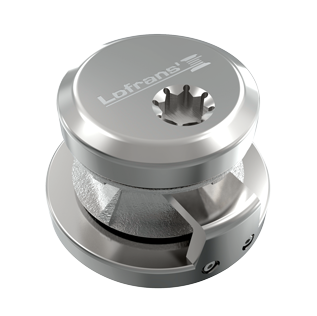

Lofrans SX1 Vertical Anchor Windlass – 500W / 800W, For Boats 6–9 m

The Lofrans SX1 is a compact and efficient vertical windlass, engineered for small motorboats and sailing yachts between 6–9 meters (20–30 ft). Made of AISI 316L marine-grade stainless steel, this windlass combines durability, compact design, and reliable performance for safe anchoring.

Main Features

Compact Design: Round-base construction ideal for limited deck space.
Stainless Steel Build: Made from AISI 316L for superior corrosion resistance.
Independent Gypsy: Efficient chain management with rope/chain compatibility.
Manual Chain Release: Provides flexibility and safety during anchoring operations.
Pre-installed Chain Counter Magnet: Allows easy connection to a chain counter.
IP67 Heavy-Duty Motor: Ensures waterproof protection and reliable performance.
Optional Chain Pipe: Available for optimized chain handling (code 636431).

Standard Equipment

Dual direction solenoid pack
Handle
Gypsy for chain
Instruction manual (CD)

Technical Specifications – SX1

Model	Voltage	Power	Chain Size	Boat Length	Max. Linear Load	Line Speed	Weight
SX1 – 6 mm	12V	500W	6 mm DIN766	6–9 m	630 kg	23–26 m/min	11–12 kg
SX1 – 6 mm	12V	800W	6 mm DIN766	6–9 m	700 kg	25–28 m/min	13–14 kg
SX1 – 8 mm	12V	800W	8 mm DIN766	6–9 m	700 kg	25–28 m/min	13–14 kg

Compact, lightweight, and highly reliable, the Lofrans SX1 Vertical Windlass is the perfect anchoring solution for smaller yachts and motorboats. It provides powerful performance with minimal deck footprint, ensuring safe and easy anchoring every time.
