Lofrans X4 2300/2700W Anchor Windlasses for Boats 18-24 m, Chain 12 mm

$ 8.410,36

1-2 weeks delivery time

Diameter, mm:

Voltage:

Electric power, W:

2300
2700

Item:

CCW Without drum
CCW With Drum
CW With Drum

The Lofrans X4 Vertical Windlass is built for yachts 18–24 m, offering a choice of 2300W or 2700W motors (24V). With versions available with or without drum and both CW and CCW rotation, it supports 12 mm ISO 4565 chain. Constructed from chromed bronze and stainless steel with an IP-rated heavy-duty motor and anodised aluminium gearbox, the X4 ensures maximum strength, durability, and reliability for demanding anchoring operations.

Description
Ask a Question

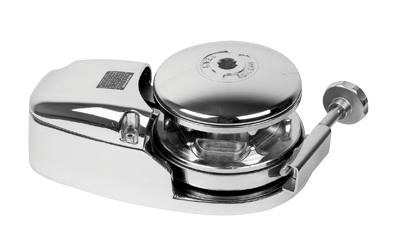

Lofrans X4 Vertical Anchor Windlass – 2300W/2700W for Boats 18–24 m

The Lofrans Project X4 Windlass is designed for large yachts ranging from 18 to 24 meters. Equipped with a powerful 2300W or 2700W 24V motor, it guarantees secure and efficient anchoring even in the toughest conditions. Its chromed bronze base and drum, combined with a marine-grade anodised aluminium gearbox, provide durability and long service life.

Main Features

Heavy-Duty Power: 2300W or 2700W high-torque 24V electric motor.
Premium Construction: Chromed bronze body and stainless steel elements.
Flexible Setup: Available with or without drum, CW or CCW rotation.
Chain Compatibility: For 12 mm ISO 4565 chain.
Manual Functions: Manual chain release and override for reliability.
Advanced Management: Pre-installed magnet for chain counter integration.
Durability: IP-rated heavy-duty motor with anodised aluminium gearbox.

Standard Equipment

Dual direction solenoid pack
Handle
Gypsy for chain
Instruction manual (CD / print)
Control box included

Technical Specifications – Lofrans X4

Model	Voltage (V)	Power (W)	Rotation	Drum	Chain Size (mm)	Boat Length (m)	Max. Linear Load (kg)	Max. Lift Load (kg)	Line Speed (m/min)
X4 – 2300W	24	2300	CW / CCW	With / Without	12	18–24	2000	1000	12–27
X4 – 2700W	24	2700	CW / CCW	With / Without	12	18–24	2400	1200	15–29

Dimensions

A: 285 mm
B: 60–130 mm
C: 200 mm
D: Ø125 mm
E: 150 mm
F: 380 mm
G: 140 mm
H: 445 mm
I: 220 mm
J: Ø127 mm
K: 240 mm
L: 190 mm

The Lofrans X4 Vertical Windlass delivers uncompromising anchoring performance for yachts between 18 and 24 meters. With high motor output, multiple configurations (with/without drum, CW/CCW), and premium marine-grade materials, it is the ideal solution for large motor yachts and sailing vessels.
