Lofrans X3 1700W Anchor Windlasses for Boats 8-18 m, Chain 8/10/12 mm

$ 3.670,61

1-2 weeks delivery time

Diameter, mm:

Voltage:

Electric power, W:

1700

Item:

Without drum
With drum

The Lofrans X3 Vertical Windlass is designed for yachts 12–18 m, with a 1700W high-torque electric motor (12V or 24V). Constructed from chromed bronze and stainless steel, it supports 8, 10, and 12 mm ISO/DIN chains, with with-drum and low-profile versions. Featuring an IP66-rated heavy-duty motor, anodised aluminium gearbox, and manual chain release, the X3 offers strength, reliability, and efficiency for demanding anchoring operations.

Description
Ask a Question

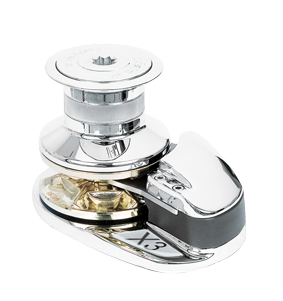

Lofrans X3 Vertical Anchor Windlass – 1700W for Boats 12–18 m

The Lofrans Project X3 Windlass is engineered for yachts ranging from 12 to 18 meters. With a robust 1700W electric motor (12V or 24V), it delivers the power and durability required for safe anchoring. Its construction in bronze, stainless steel, and chromed bronze ensures long-lasting resistance to marine environments.

Main Features

Premium Build: Chrome bronze base and drum with stainless steel components.
High-Torque Motor: 1700W power output for secure anchoring of boats up to 18 m.
With or Without Drum: Available in drum and low-profile versions.
Rope/Chain Gypsy: Designed for rope and chain combinations, with spring-loaded arm management.
Manual Chain Release: Safe and efficient manual release system.
Chain Counter Ready: Pre-installed magnet for chain counter integration.
Sealed Motor: IP66 heavy-duty electric motor with anodised aluminium gearbox.

Standard Equipment

Dual direction solenoid pack
Handle
Gypsy for chain
Instruction manual (CD / print)
Control box included

Technical Specifications – Lofrans X3

Model	Voltage (V)	Power (W)	Drum Option	Chain Size (mm)	Boat Length (m)	Max. Linear Load (kg)	Max. Lift Load (kg)	Line Speed (m/min)
X3 8 mm	12 / 24	1700	With / Without	8	12–16	1600 (12V) / 1695 (24V)	800 (12V) / 850 (24V)	15–32
X3 10 mm	12 / 24	1700	With / Without	10	12–18	1600 (12V) / 1695 (24V)	800 (12V) / 850 (24V)	15–32
X3 12 mm	12 / 24	1700	With / Without	12	15–18	1600 (12V) / 1695 (24V)	800 (12V) / 850 (24V)	15–32

Dimensions

A: 195 mm
B: 50–70 mm
C: 165 mm
D: Ø92 mm
E: 110 mm
F: 270 mm
G: 80 mm
H: 300 mm
I: 192 mm
J: Ø126 mm
L: 135 mm

The Lofrans X3 Vertical Windlass delivers superior anchoring performance for yachts between 12 and 18 meters. With multiple chain sizes (8, 10, 12 mm), 12V and 24V configurations, and drum/no-drum options, it provides unmatched flexibility and strength for demanding marine conditions.
