SKU:
VDM TEC00012 / TN 27122108 / Osculati-50.229.02
$ 1.248,43
1-2 weeks delivery time
-
+
The Tecma Compass High ECO 24V marine toilet combines a narrow footprint and smart back design, enabling flexible installation close to walls or hulls. With a powerful MAC 4 pump, low noise operation, minimal water and energy use (0.5–2 L per flush), and a thermosetting seat with soft-close, it delivers reliability, easy installation, and premium comfort for yachts from 20–50 ft.
- Description
- Ask a Question
-

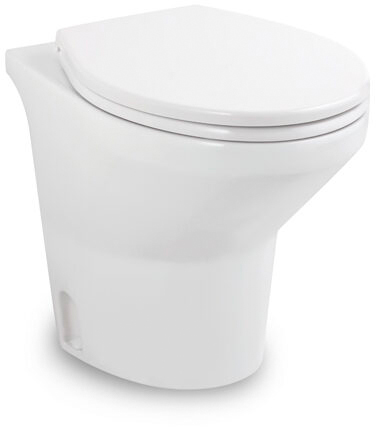

The Tecma T-COM024NW/E – 24V Compass High ECO Marine Toilet is designed to maximize space efficiency and installation flexibility on board. Thanks to its narrow footprint and smart back cutaway, it can be mounted straight to a wall or closer to the hull, ensuring a seamless look in any bathroom layout.
Equipped with a high-quality MAC 4 macerator pump, the Compass toilet provides efficient and reliable waste management while maintaining extremely low sound emissions. Its ECO technology minimizes water consumption (as little as 0.5 L per flush) and power usage, making it one of the most efficient marine toilets in its class.
For added convenience, the toilet features a thermosetting seat with a soft-closing mechanism. A gentle touch activates the damper system, reducing noise and preventing damage from sudden lid drops. The unit is easy to install, with plumbing and wiring designed for fast setup and virtually no maintenance.
The Compass High ECO is trusted by premium yacht brands such as Absolute, Cranchi, Galeon, Oryx, Silvercraft, and Dominator.
Technical Specifications

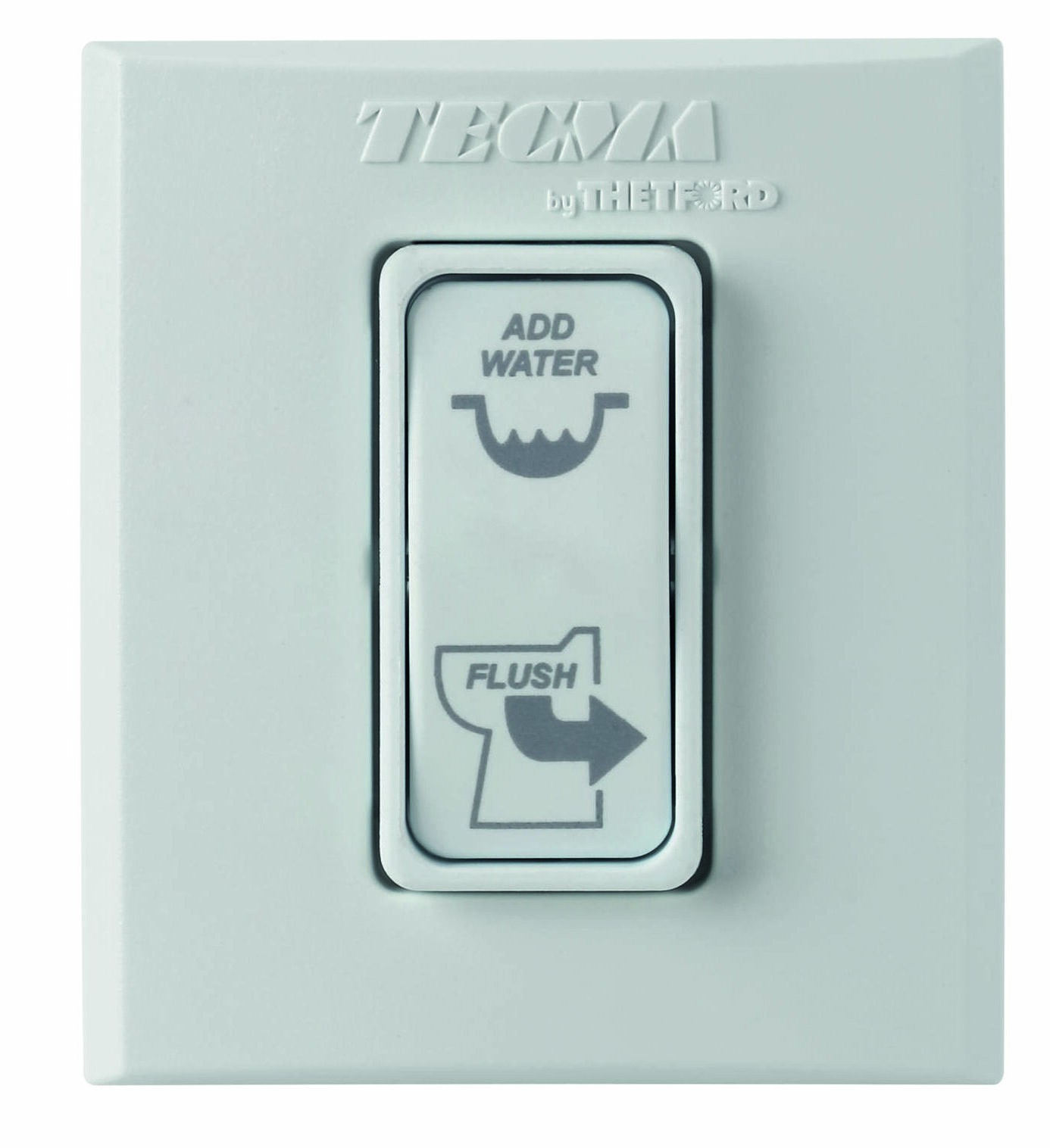

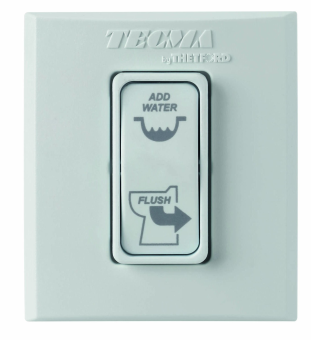

Model T-COM024NW/E Power Supply 24V DC Weight 21.5 kg (47.3 lbs) Water Usage 0.5 – 2 L (0.1 – 0.5 gal) per flush Color White Seat & Cover Thermosetting with soft closing Outlet Pump MAC 4 (12/24 V compatible) Inlet Device Solenoid (optional inlet pump) Control Panel Eco rocker switch (optional All-in-one SFT / Multiframe SFT / Touch SFT Multifunction)
With its compact design, reliable performance, and low-resource operation, the Compass High ECO 24V is an excellent choice for yachts in the 20–50 ft range, offering premium sanitation in a space-saving format.
-
