$ 1.024,95
1-2 weeks delivery time
-
+
The Wema 220030 multifunctional 3-inch gauge offers an 8-in-1 color touchscreen with 432 x 432 pixel resolution and customizable layouts. It connects via NMEA2000 or analog signals (not both simultaneously), includes a 1-meter NMEA2000 drop cable and analog cable, and features an IP67 waterproof rating with UV and saltwater resistance.
- Description
- Ask a Question
-
Wema 220030 - MFG 3" Touchscreen NMEA2000 432 x 432 Pixels
Article Number: 21352286

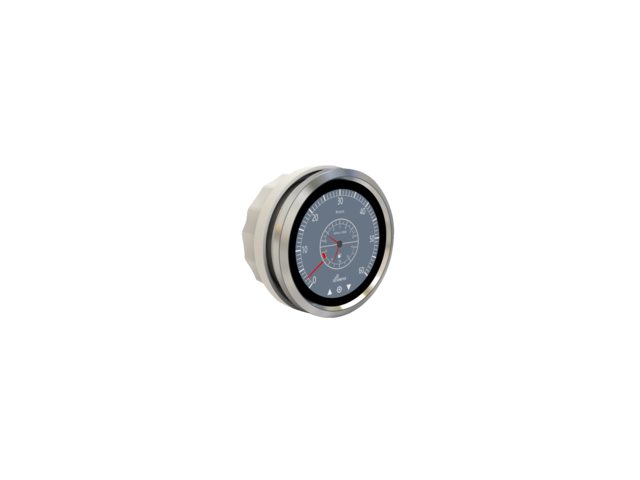

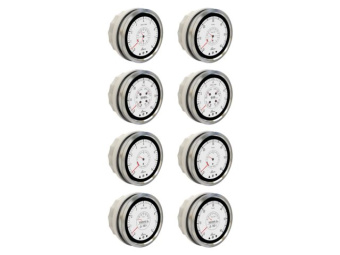

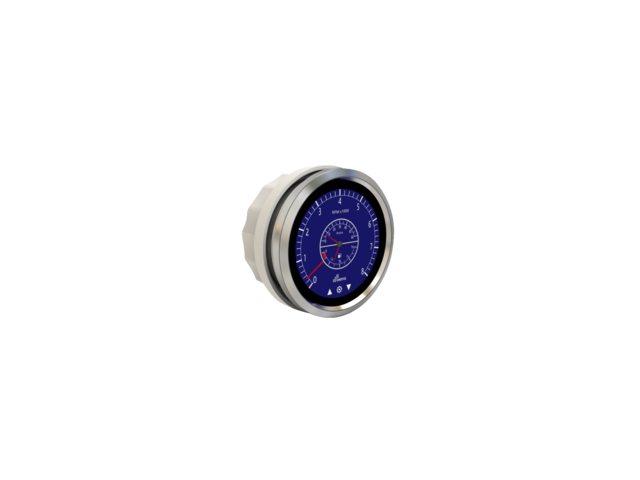

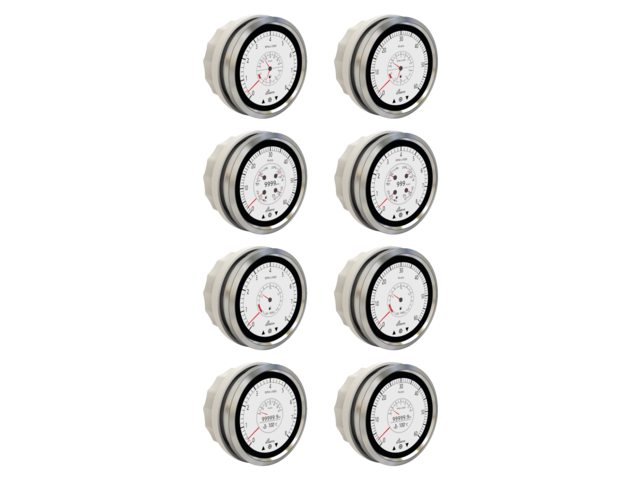

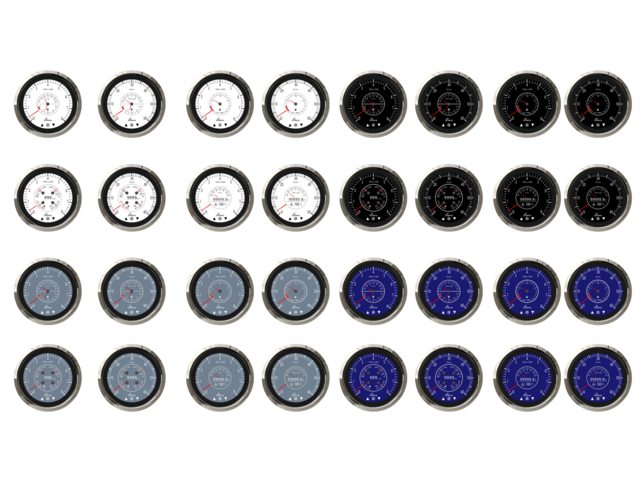

The Wema multifunctional 8-in-1 gauge provides comprehensive data about your vessel on a clear 3" color touchscreen with 432 x 432 pixel resolution. It features easy menu navigation and offers 8 customizable screen layouts to optimally display the information you need. This model connects via NMEA2000 or analog signals (not simultaneously) and includes a 1-meter NMEA2000 drop cable plus an analog connection cable.
- Screen diameter: 103 mm
- Cut out diameter: 96.6 mm
- Available sizes: 7.6 cm (3") and 10.7 cm (4.2") models
- Waterproof rating: IP67
- Anti-fog glass
- UV and saltwater resistant
- Power supply: 12V via NMEA2000 or 9-32V with analog connection

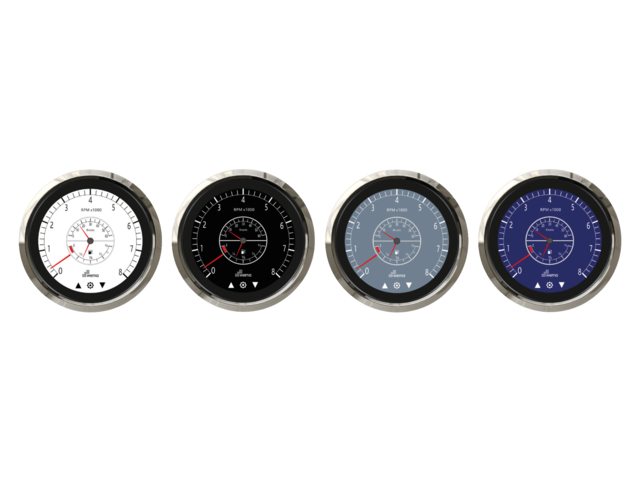

- Adjustable background colors: black, white, blue, or grey
- Installation depth: 85 mm (including cable and connector)
- LEN=4
Readable functions (NMEA2000 or Analog):
- Speed (selectable 15/30/60 knots, km/h or mph)
- RPM (selectable 4000, 6000, or 8000 rpm)
- Engine hours
- Oil pressure
- Water temperature
- Volt
- Fuel tank level
- Warning lights
-
