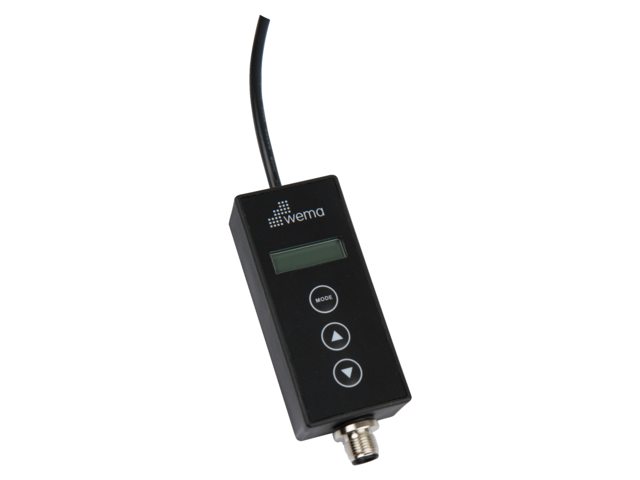

Wema 220020 - ASC-6 Converter 6 Channels to NMEA2000
The ASC-6 converter is designed to transform up to six analog inputs into a single NMEA2000 signal. One of its channels is specially allocated for converting analog tachometer readings into NMEA2000 format.
- Article Number: 21352239
- Manufacturer Number: 220020
- Compatible Analog Signals:
- Tachometer (dedicated channel)
- Fuel tank (0-190, 10-180, 240-30 Ohm or custom)
- Water tank (0-190, 10-180, 240-30 Ohm or custom)
- Holding tank (0-190, 10-180, 240-30 Ohm or custom)
- Engine temperature (0-120°C)
- Oil temperature (0-150°C)
- Oil pressure (0-5 and 0-10 bar)
- Turbo pressure (0-2 bar)
- Rudder angle
- Trim angle
-
