SKU:
LNK 21353040
$ 69,07
1-2 weeks delivery time
-
+
The Wema 160050 Signal Splitter allows one analog sensor to connect to two meters or two sensors to one meter without incorrect readings caused by mismatched resistances. It supports all Wema analog resistance sensors, operates within a resistance range of 0 to 465 Ohms, requires no calibration, and works on 12/24 volts with compact dimensions of 57mm x 51mm x 21mm.
- Description
- Ask a Question
-

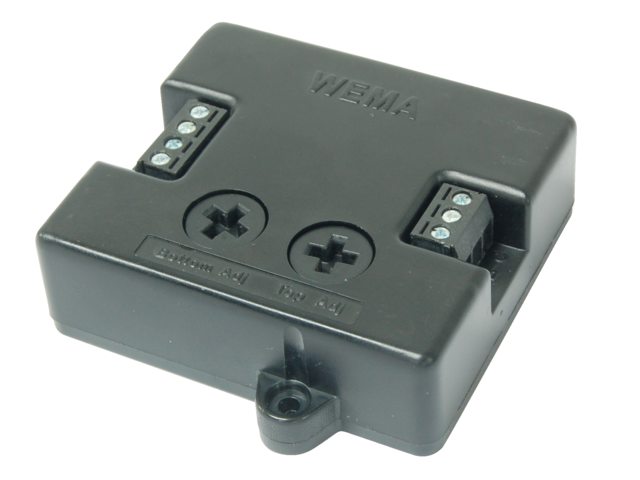

Wema 160050 - Signal Splitter
Article Number: 21353040
This signal splitter allows the connection of one analog sensor to two meters or two analog sensors to one meter without causing incorrect readings due to mismatched resistances.
- Connect one analog sensor to two meters, ideal for sending signals from one sensor to gauges at different locations such as helm and flybridge.
- Combine two analog sensors to one meter to obtain a reliable combined reading from two tanks, compensating for boat angles and avoiding false tank level readings.
- Compatible with all Wema analog resistance sensors including fuel, water, wastewater tank, temperature, and pressure sensors.
- Resistance range: 0 - 465 Ohms
- No calibration required
- Voltage: 12/24 Volts
- Dimensions: 57mm x 51mm x 21mm
-
