The Velair Inverter Compact i16 VSD delivers efficient cooling, heating, and dehumidification for yachts, featuring inverter technology, app control, and durable construction.
- Description
- Ask a Question
-
Velair 24832JW - Air Conditioning System Inverter Compact i16 VSD Smart 230V

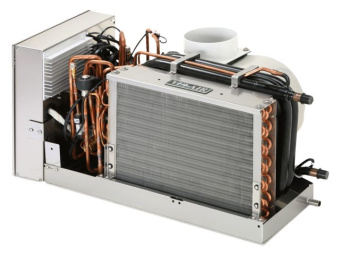

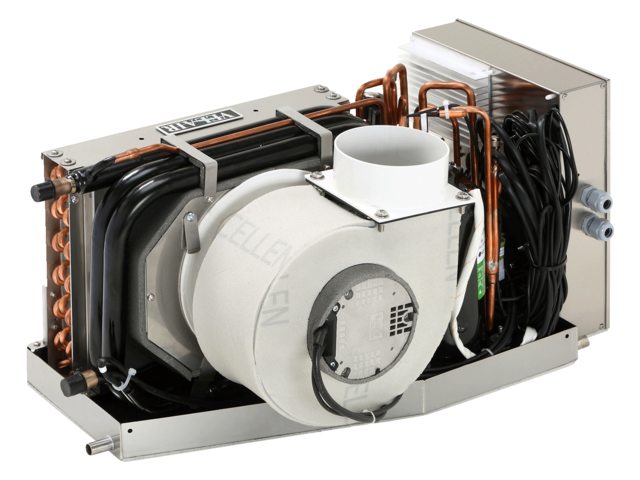

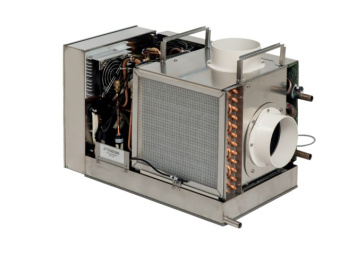

Velair's inverter compact air conditioning system offers advanced technology in a compact form, designed to deliver efficient cooling, heating, and dehumidification tailored for yachts or ships.
- Article Number: 90180612
- Model: COMPACT i16 VSD
- Man.nr.: 24832JW
- Cooling capacity range: 6,000 - 16,000 BTU/hr
- Power supply voltage: 230V / 50-60Hz
- Power consumption cooling (max./eco): 4.1A / 1.35A
- Fuse: 10A
- Cable (min.): 2.5mm²
- Maximum air flow: 550m³/hr
- Flange diameter Ø: 2 x 150mm
- Min. opening for return air grill: 600cm²
- Min. opening for supply air grill: 300cm²
- Min. capacity water pump: 15l/min
- Installation advice single unit below waterline: 90180631
- Installation advice single unit above waterline: 90180640
- Refrigerant: R32
- Dimensions (W x H x D): 616 x 347 x 306 mm
- Weight: 30 kg
The system features a brushless motor compressor that continuously adjusts the cooling for steady and effective temperature control. It can be operated via a wired touch panel or remotely through a dedicated app, which allows on-board direct control or internet-based management from anywhere, perfect for pre-cooling before boarding. This requires an onboard internet connection via WiFi or router.
Key advantages of the inverter technology include:
- Elimination of power surges during start-up with up to 40% reduced power consumption
- Consistent temperature regulation
- Optimized performance when paired with an inverter power source
Additional features comprise a high-efficiency, low-noise brushless fan, wall-mountable wired touch panel, heat pump reverse operation for heating, durable stainless steel and aluminum materials, and remote control capability via app.
-
