SKU:
LNK 43464004
$ 449,89
1-2 weeks delivery time
-
+

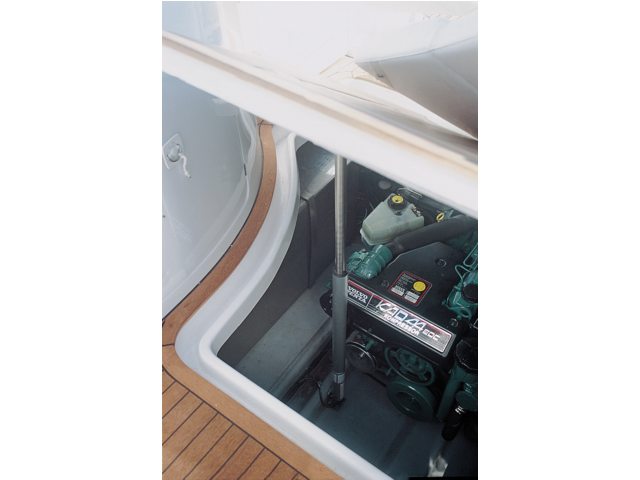

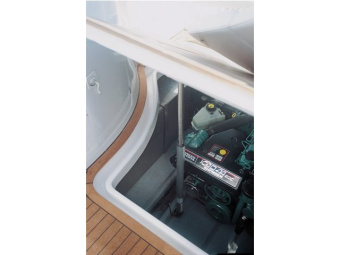

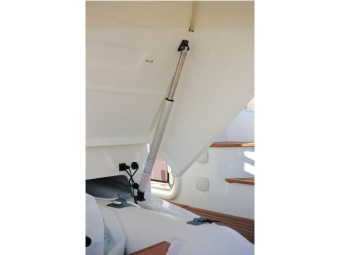

The Ultraflex Ulysses 3024 provides the same reliable lifting as the 3012 but operates on a 24V system. With a 300mm stroke and a 650N load capacity, it’s ideal for marine hatch lifting. It features an aluminium ram arm, electronic stops, and an IP65 rating for protection against water and dust, offering faster operation at 8 mm/sec (no load) and 6 mm/sec (max load).
- Description
- Ask a Question
-

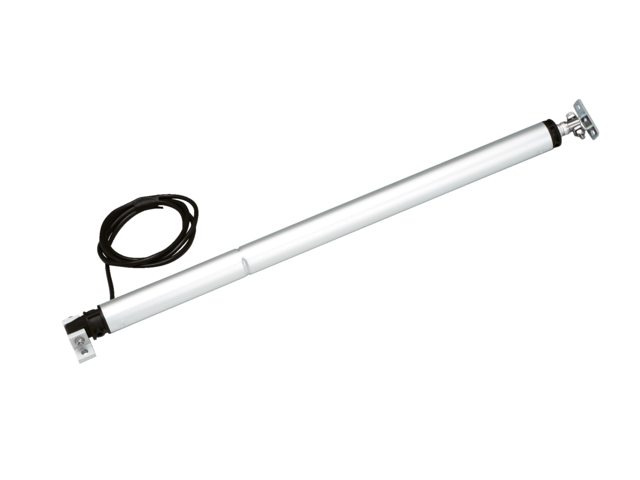

Ultraflex Ulysses 3024 Hatchlifter - Stroke 300 mm (12") - 24V
The Ultraflex Ulysses 3024 model combines a 300 mm stroke with 24V operation, suitable for single installations on pleasure boats needing dependable hatch lifting solutions. It enables partial or full hatch opening with electronic positioning controls.
- Article Number: 43464004
- Manufacturer Number: Ulysses 3024
- Stroke Length: 300 mm

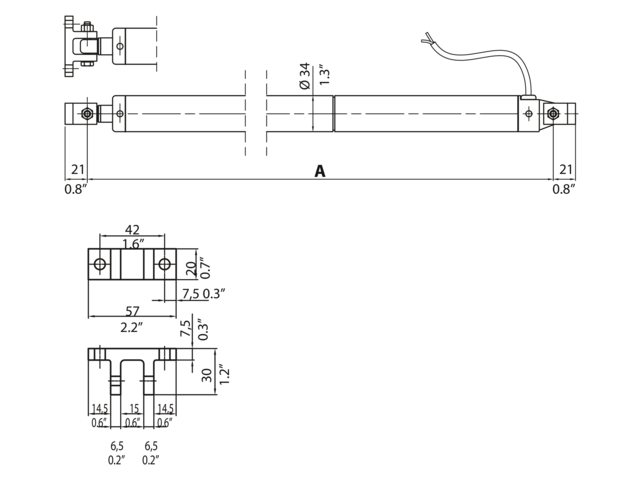

- Fully Closed Length: 635 mm
- Voltage: 24V
- Pull and push capability with max load of 650N (65kg / 144lbs)
- Maximum oscillation range: 180°
- Diameter: 34 mm
- Includes mounting hardware
- Equipped with circuit breaker to prevent accidental overload
- Electronic stop at fully open or closed positions
- Aluminium ram arm construction
- IP65 rated for water and dust resistance
- Speed (24V): 8 mm/sec (no load), 6 mm/sec (max load)
- Current absorption (24V): 1A
- Control box (relay) and switch available separately
-
